C SERIES SEWAGE PUMP

Structure and characteristics

A “cutter mechanism” is provided by the combined action of a carbide blade intergrated into a non-clog impeller and the sawshaped inner surface of a suction cover. This construction ensures that fibrous foreign matter is cut up, and sewage is transferred without clogging.

Application

The C series is especially useful for pumping waste water containing soft, easy broken fibers from slaughter house and blogas plants.

Specification

●Insulation class: B

●Protection class: IP68

●Water temperature: up to 40℃

●PH: 6 -10

●Density of liquid: 1.3g/cm³

Power supply: three-phase 380V±10%, 50Hz

                          single-phase 230V±10%, 50Hz

Motor protection:  built in

●Capacity: up to 135m³/h

●Head: up to 32m

●Cable length: 8m

●Max water depth: 10m

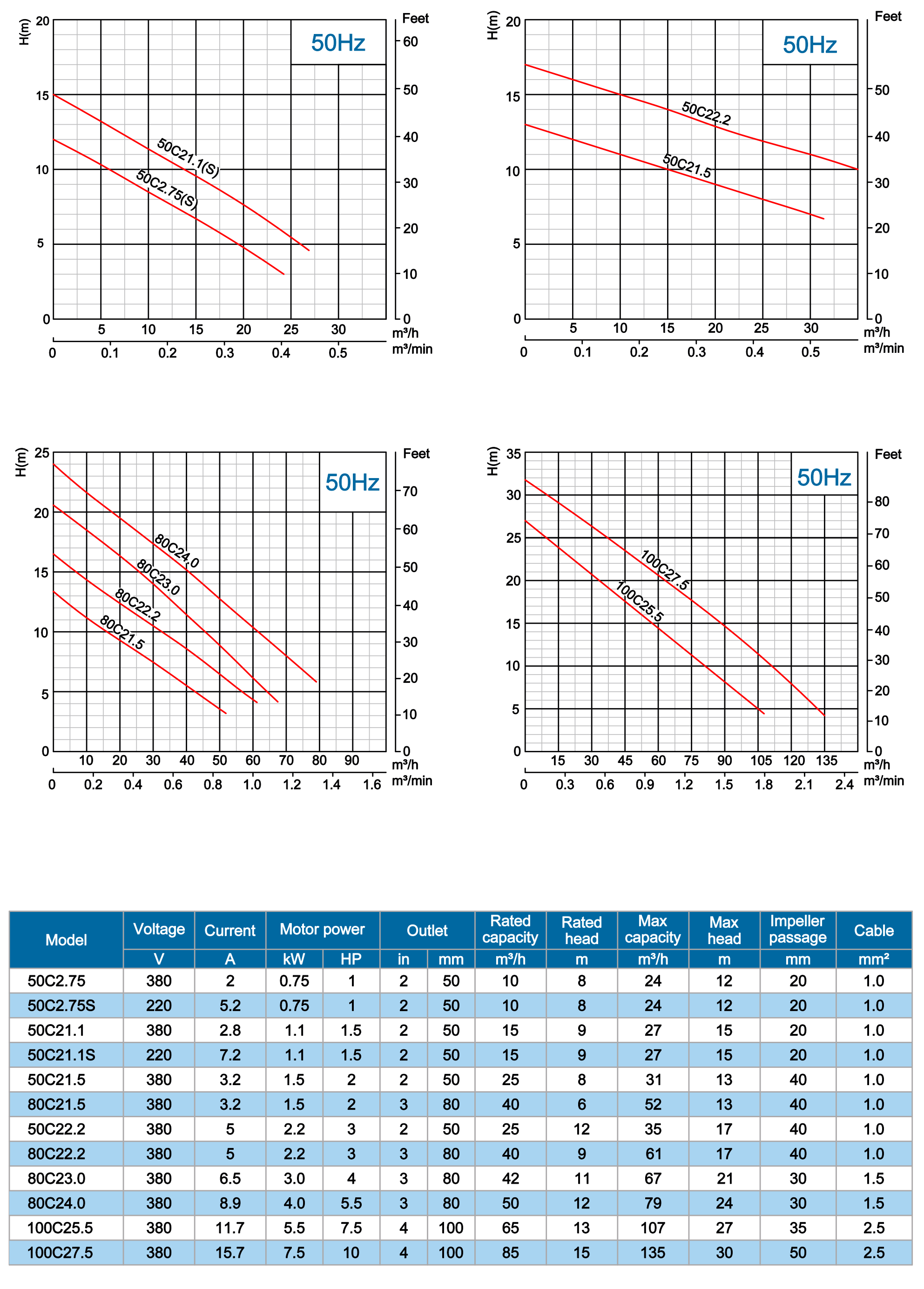

Series Product Specfications

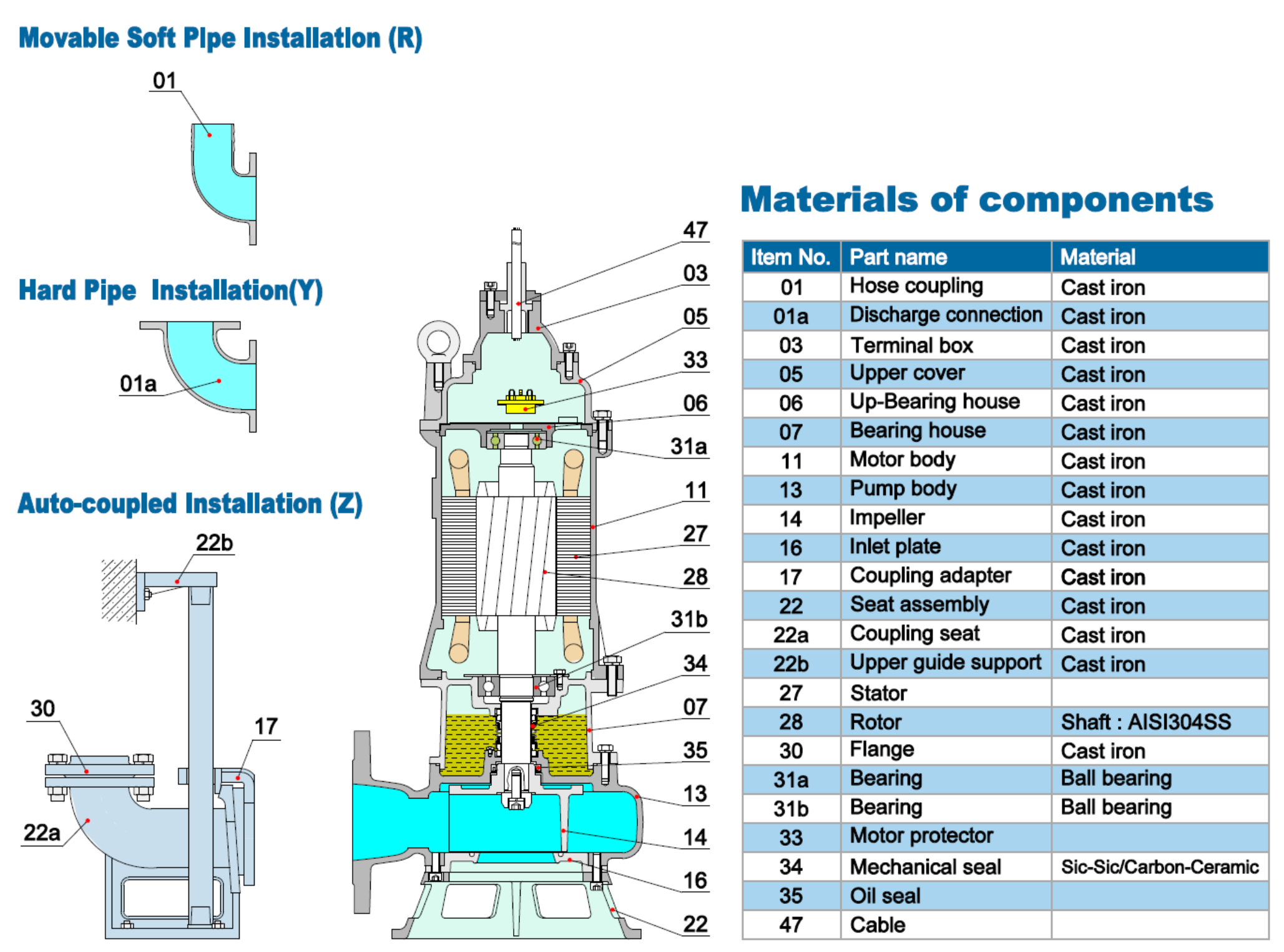

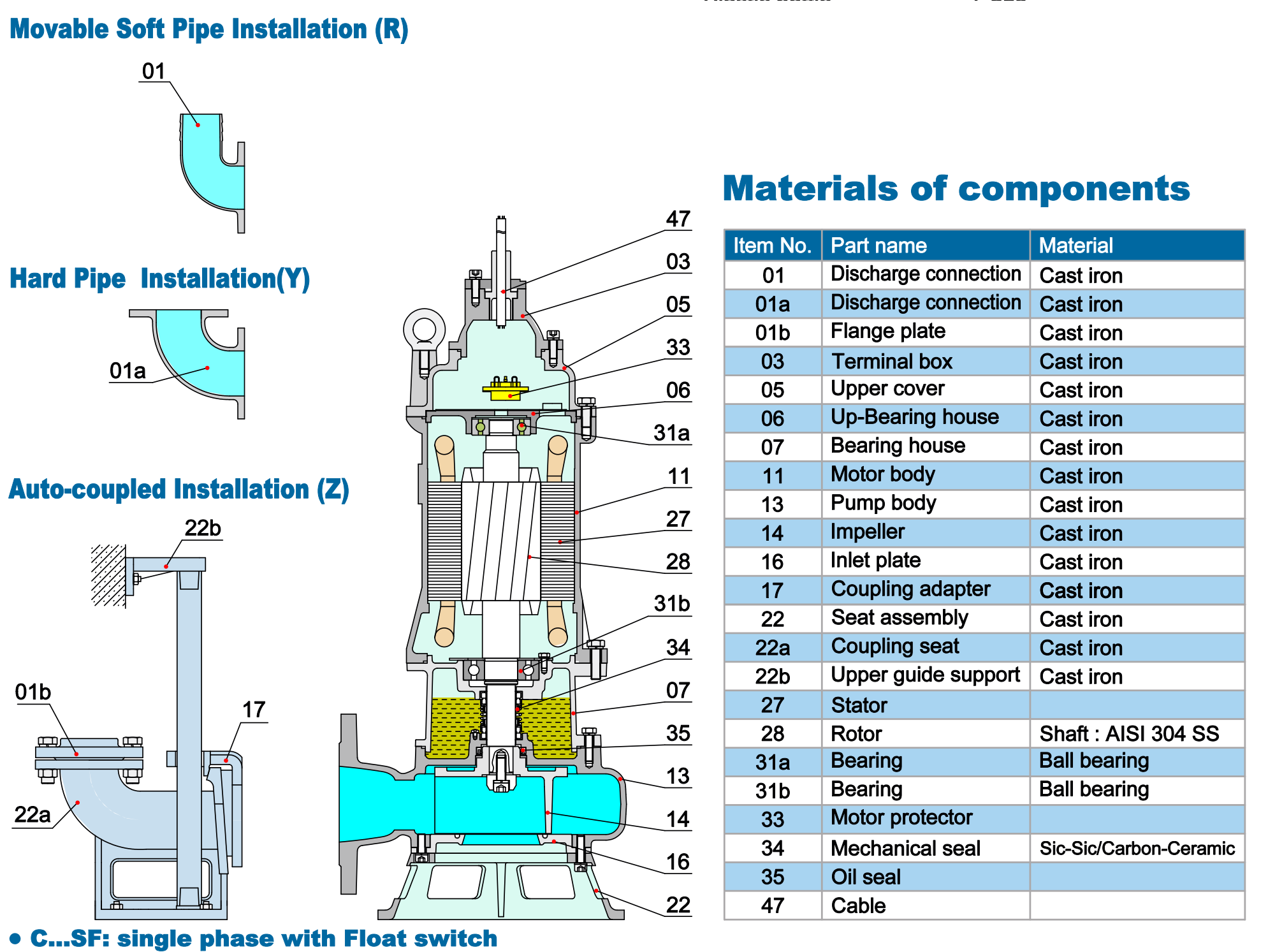

Material of Construction
Specification

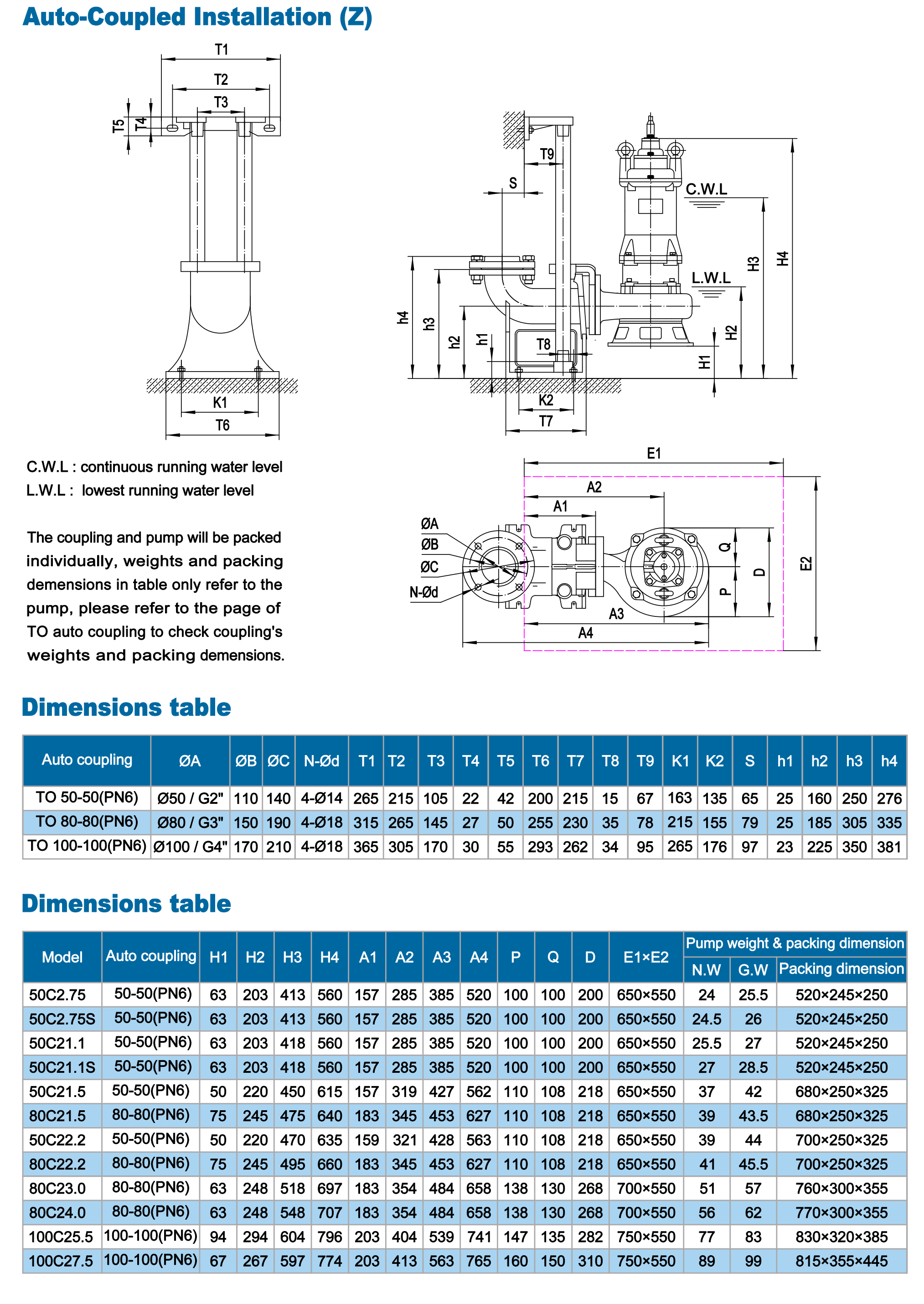

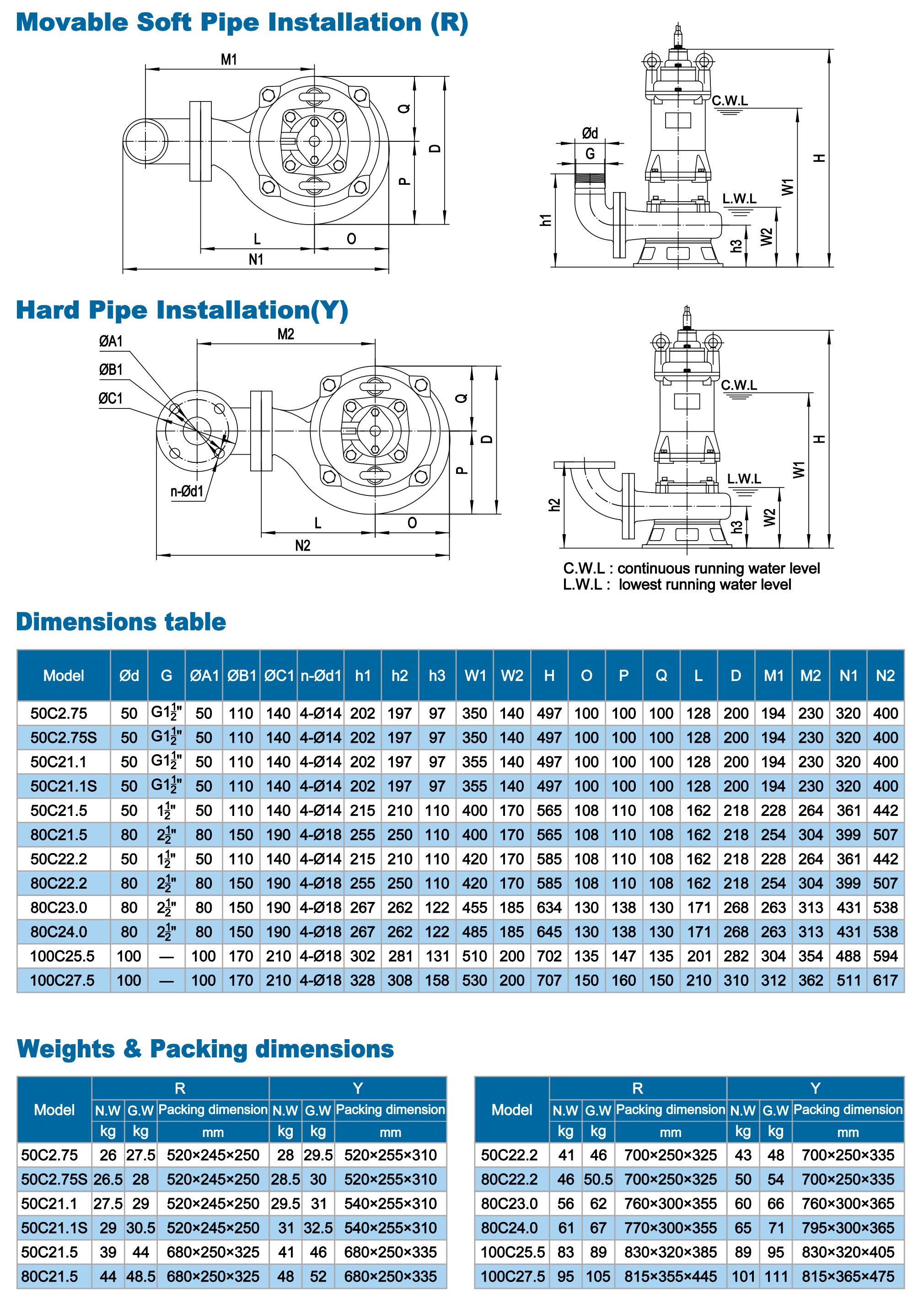

Packing Dimension


Consumable Parts

C SERIES SEWAGE PUMP

C-pump cover

C SERIES SEWAGE PUMP

C-pump body

C SERIES SEWAGE PUMP

C-impeller
