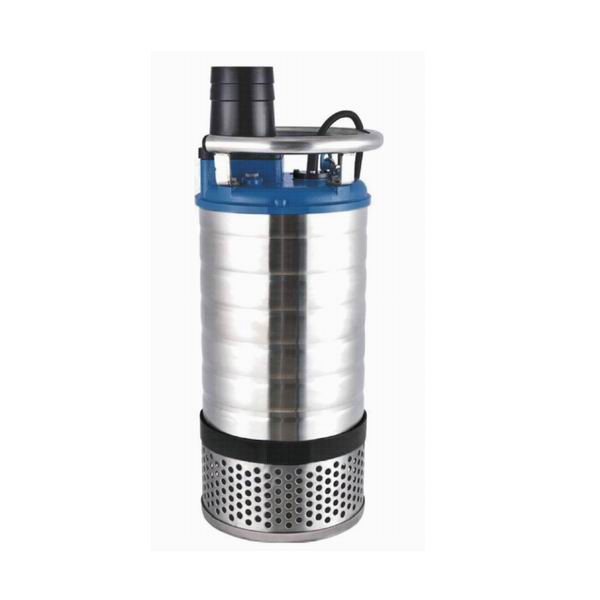

KC SUBMERSIBLE PUMP

Structure and characteristics

Water cooled motor to ensure a long life in continuous and intermittent operation, with high efficiency and energy savings.

Incorporating a dry motor with thermal auto-cut that prevents the motor from over heating.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

The cast iron upper cover and strengthened AISI304SS pumps casing, which can provide better anti-hitting performance.

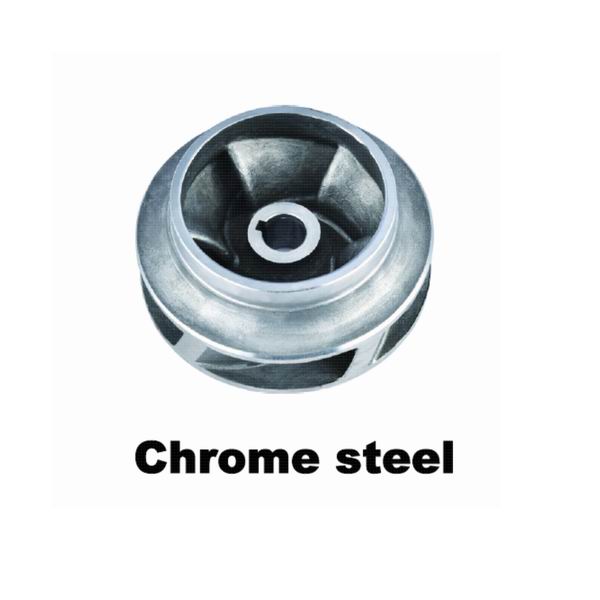

The impeller is designed by 3D technology and made of chrome steel, which can improve the efficiency and extend the product lifetime.

The KC pump strainer can be easily removed and replaced with a check valve, which allows for dewatering up max.8m deep of underground water and water circulation applications.

Application:

Aquiculture water supply and drainage

Water supply for agriculture irrigation systems and underground water pumping

Extraction of water from rivers, lakes and reservoirs

Series Product Specfications

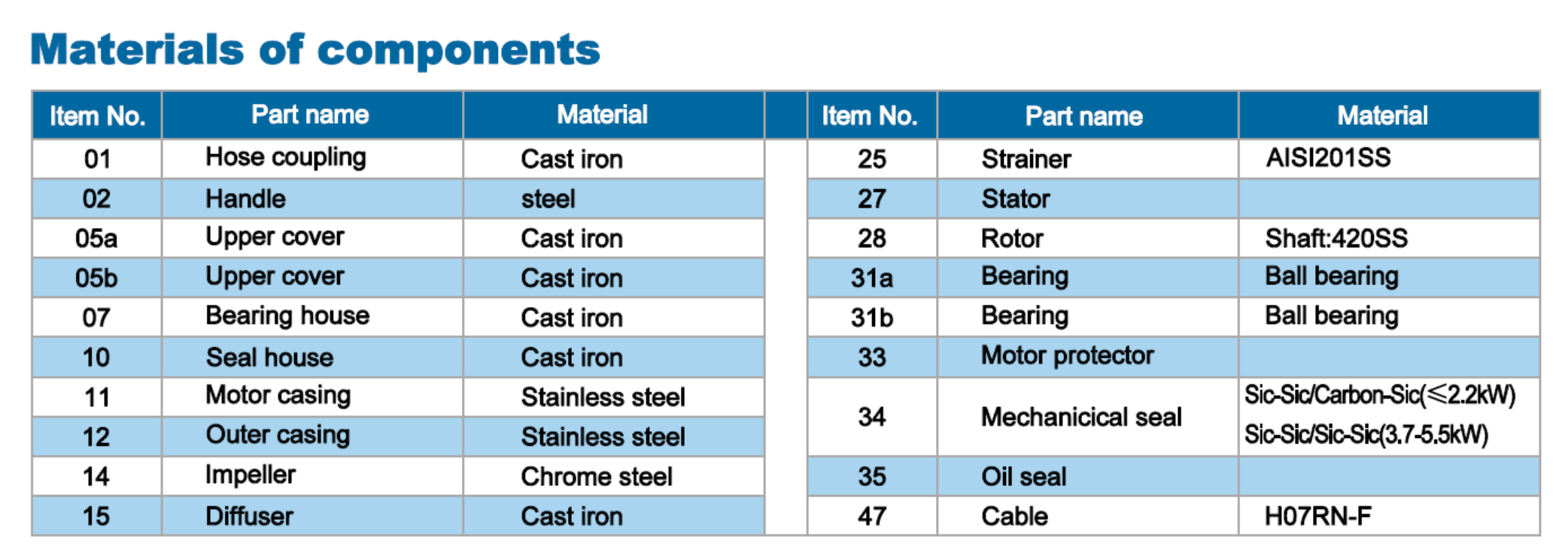

Material of Construction

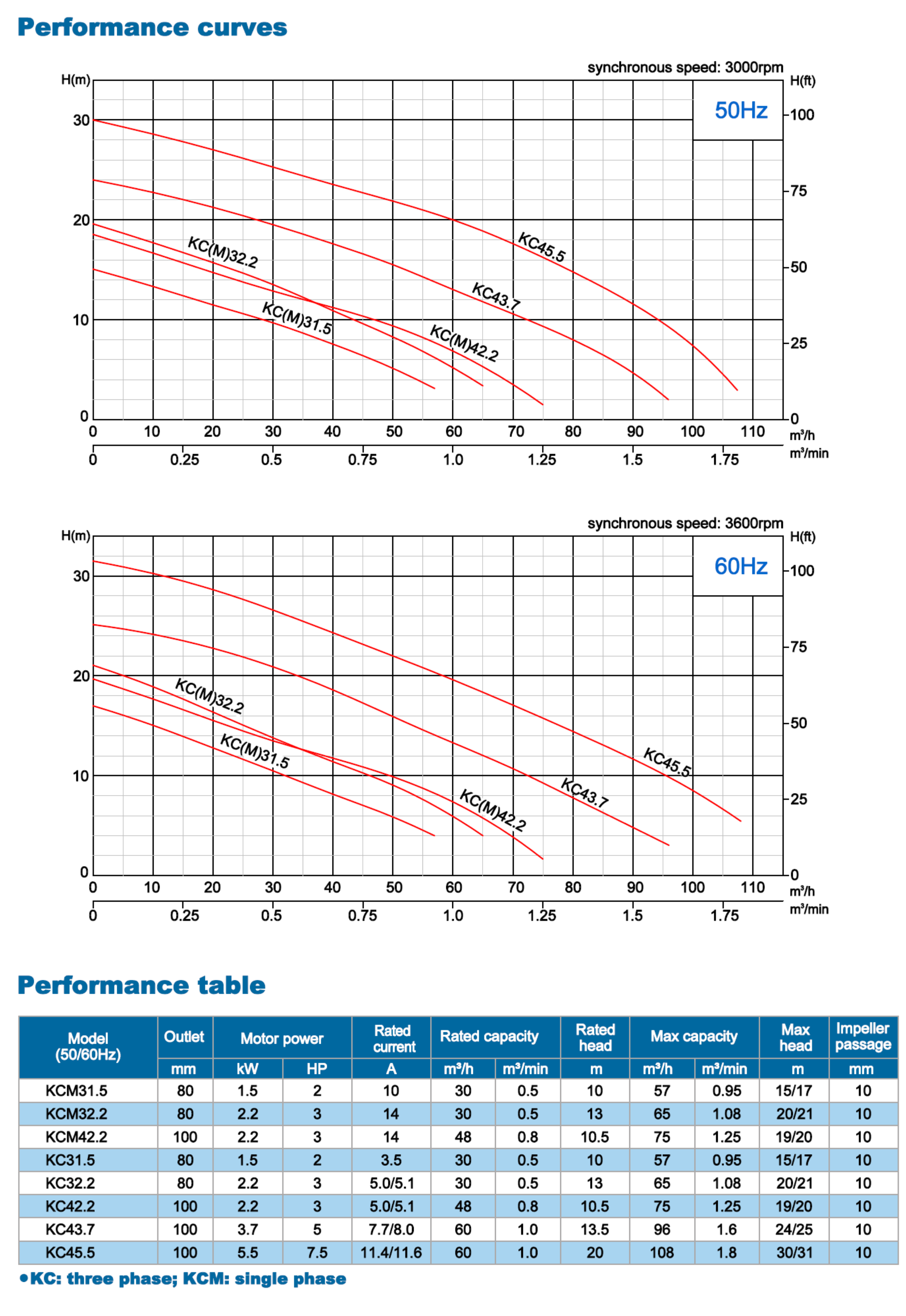

Specification

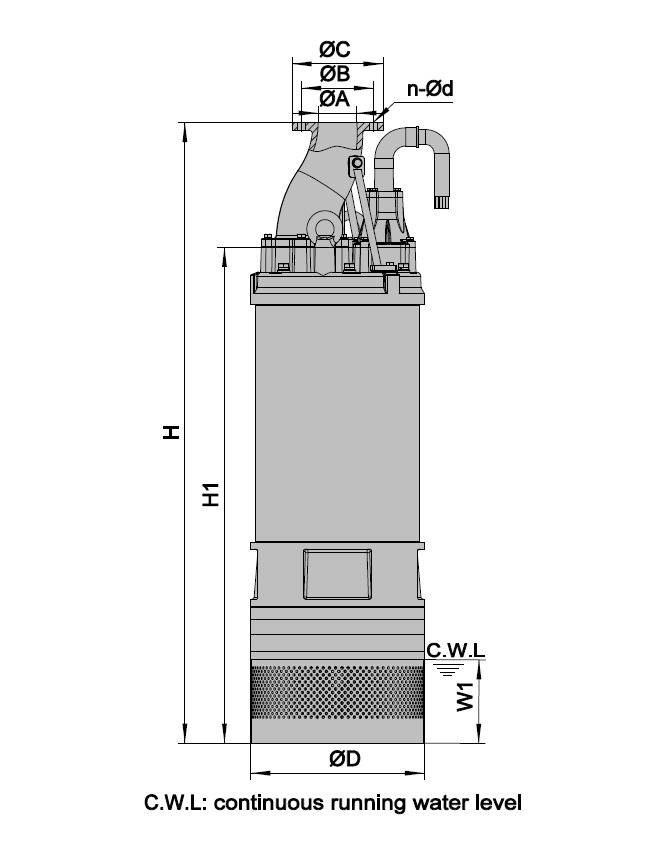

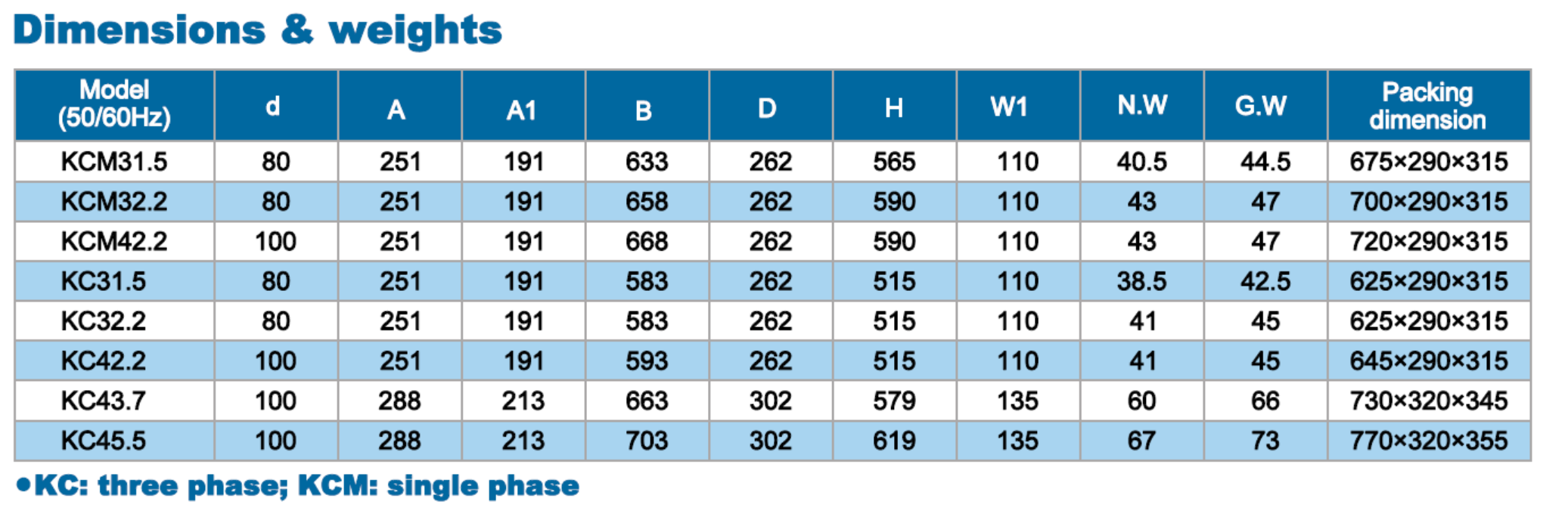

Packing Dimension




Consumable Parts

KC SUBMERSIBLE PUMP

diffuser

KC SUBMERSIBLE PUMP

diffuser

KC SUBMERSIBLE PUMP

impeller
