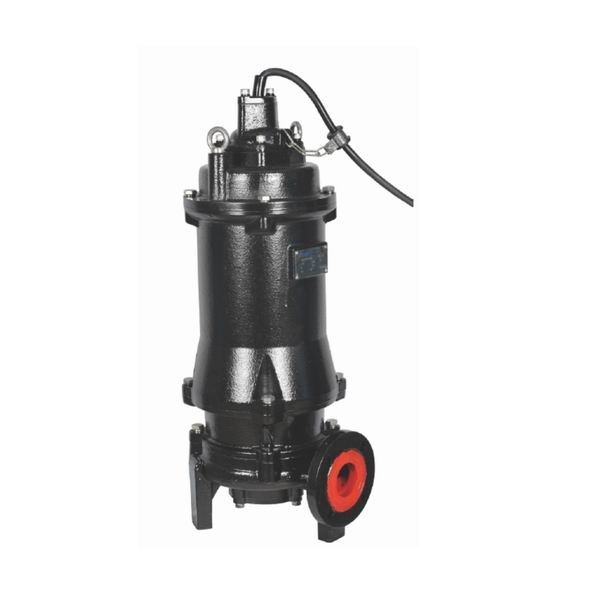

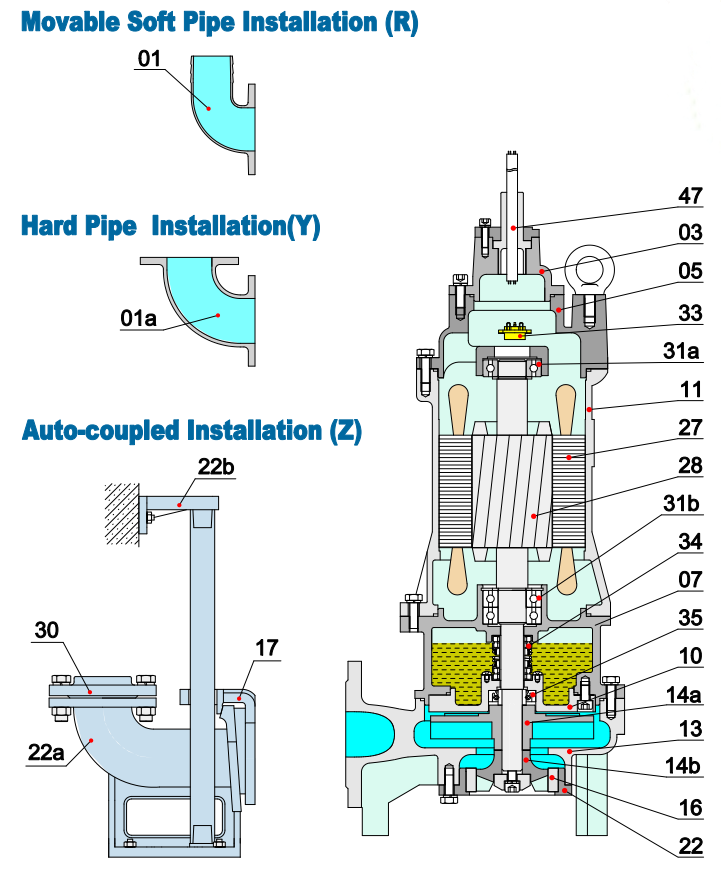

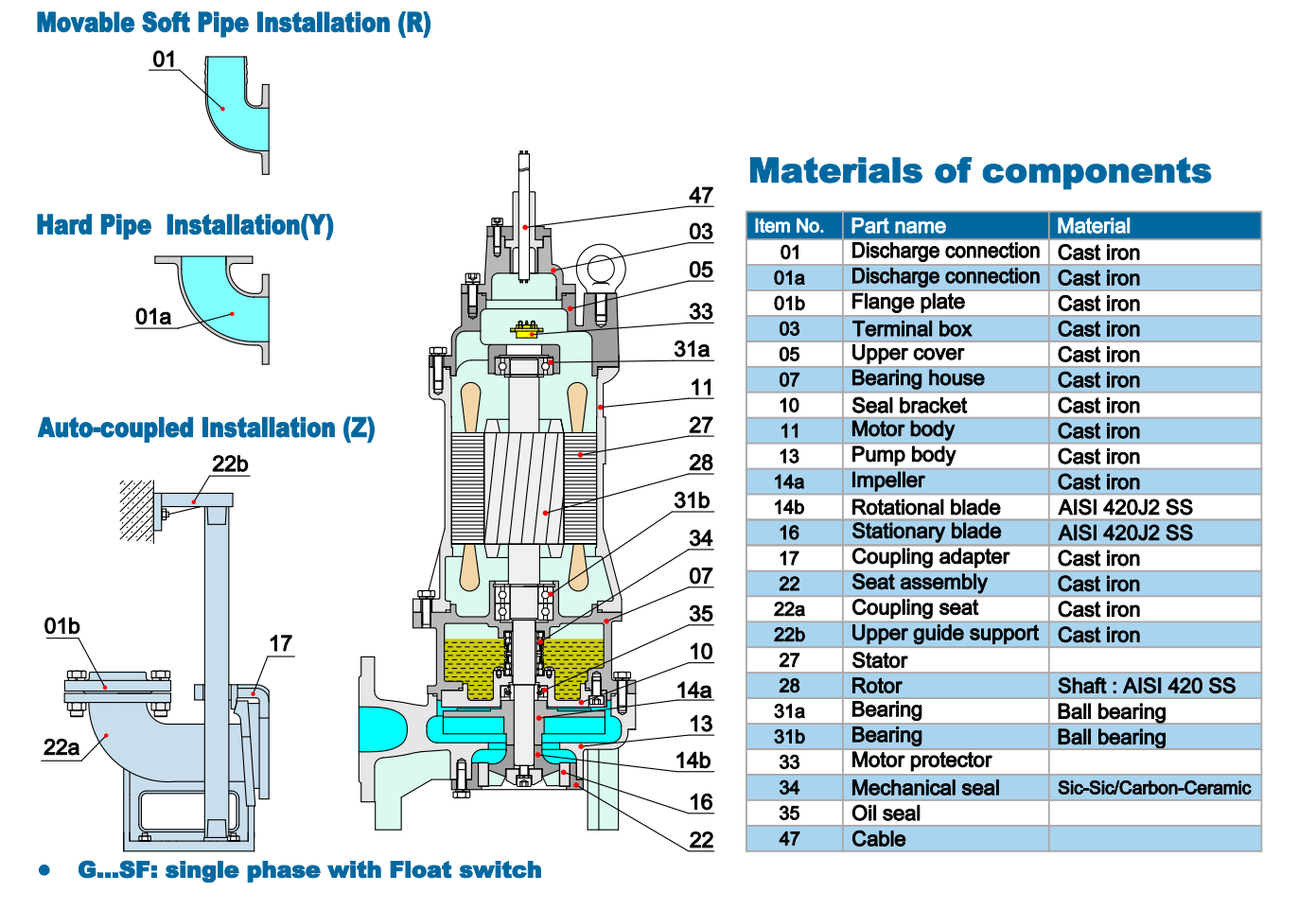

Structure and characteristics

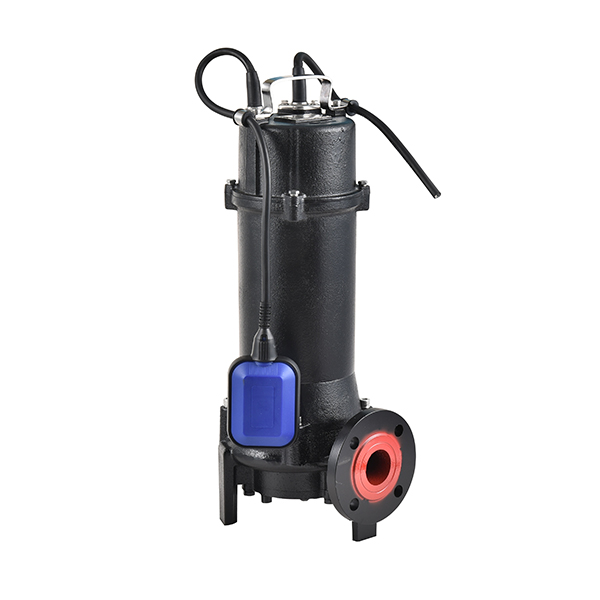

A grinding mechanism is provided at the suction inlet of the pump. Flow in suspended solids are cut into small pieces and pumped out by a vortex impeller without a fear of clogging in the discharge pipe.

Application

● Transferring the sewage under high pressure in small scale sewer systems

● Transferring the domestic and building sewage

● Collecting and transferring the wastewater in factories

● Transferring the wastewater from the waste-water tanks of hospitals, hotels, department stores, etc.

● Pumping the disposal units requiring grinding.

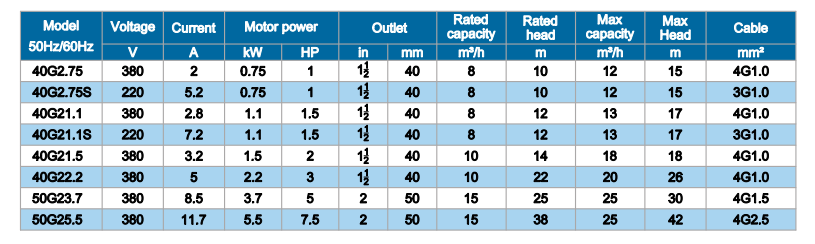

Specification

●Insulation class: F

●Protection class: IP68

●Water temperature: up to 40℃

●PH: 6 -10

●Density of liquid: 1.3g/cm³

●Power supply: three-phase 380V±10%, 50Hz

                          three-phase 380V±10%, 60Hz

                          single-phase 220V±10%, 50Hz

                          single-phase 220V±10%, 60Hz

●Motor protection: built in

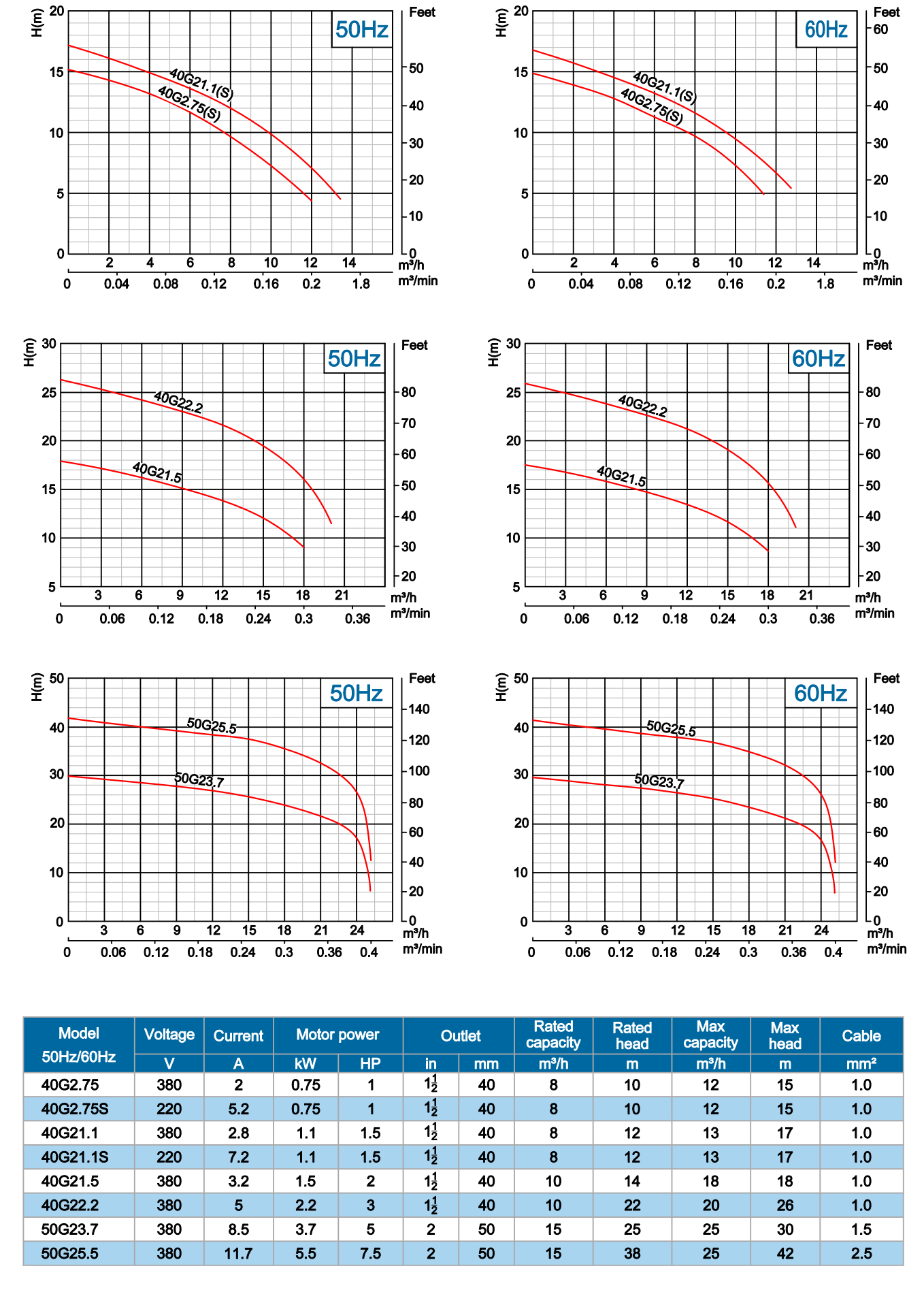

●Capacity: up to 25m³/h

●Head: up to 42m

●Cable length: 8m

●Max water depth: 10m
