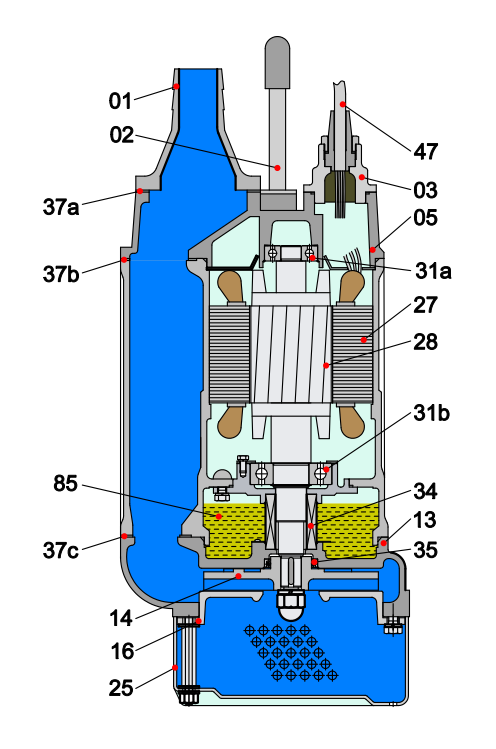

explosive view-G
Details
Address
- NO.1 22nd Street, East New District, Wenling
- Zhejiang, China
- meudy@fypumps.com
- 0086-576-86320770
0576-86320770
0576-86320770

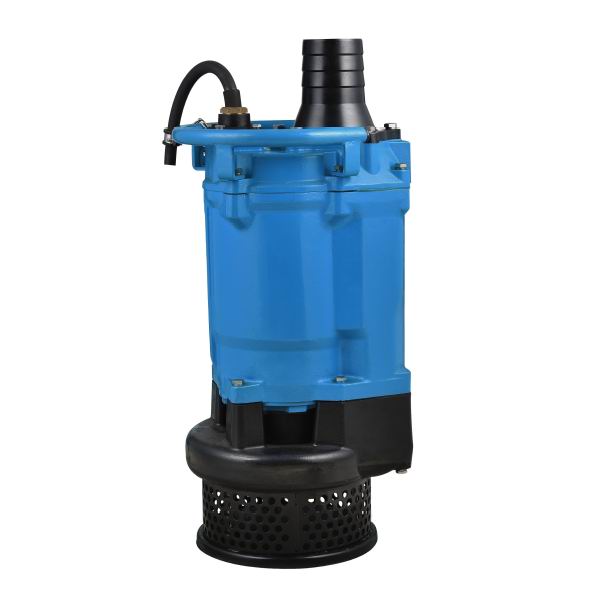

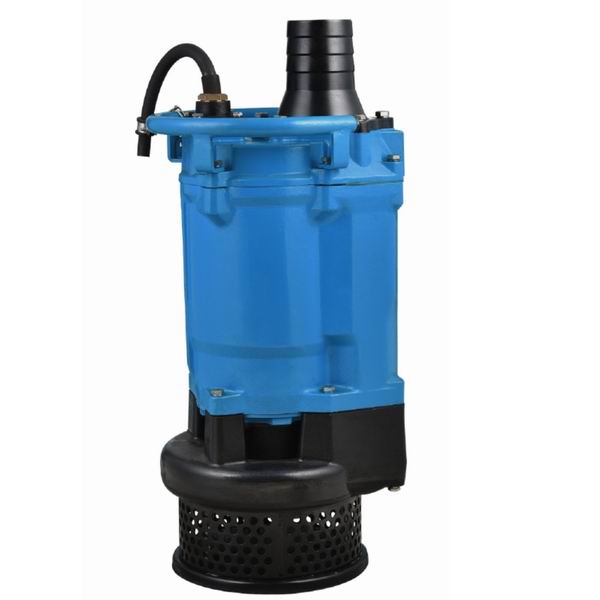

KBZ submersible drainage pump for high temperature liquids
The KBZ series high-temperature submersible electric pump can handle liquids up to 80 degrees Celsius.
The insulation level, rubber material, bearings, and lubrication of the motor are upgraded on the basis of the standard type (handling liquids up to 40 degrees Celsius).

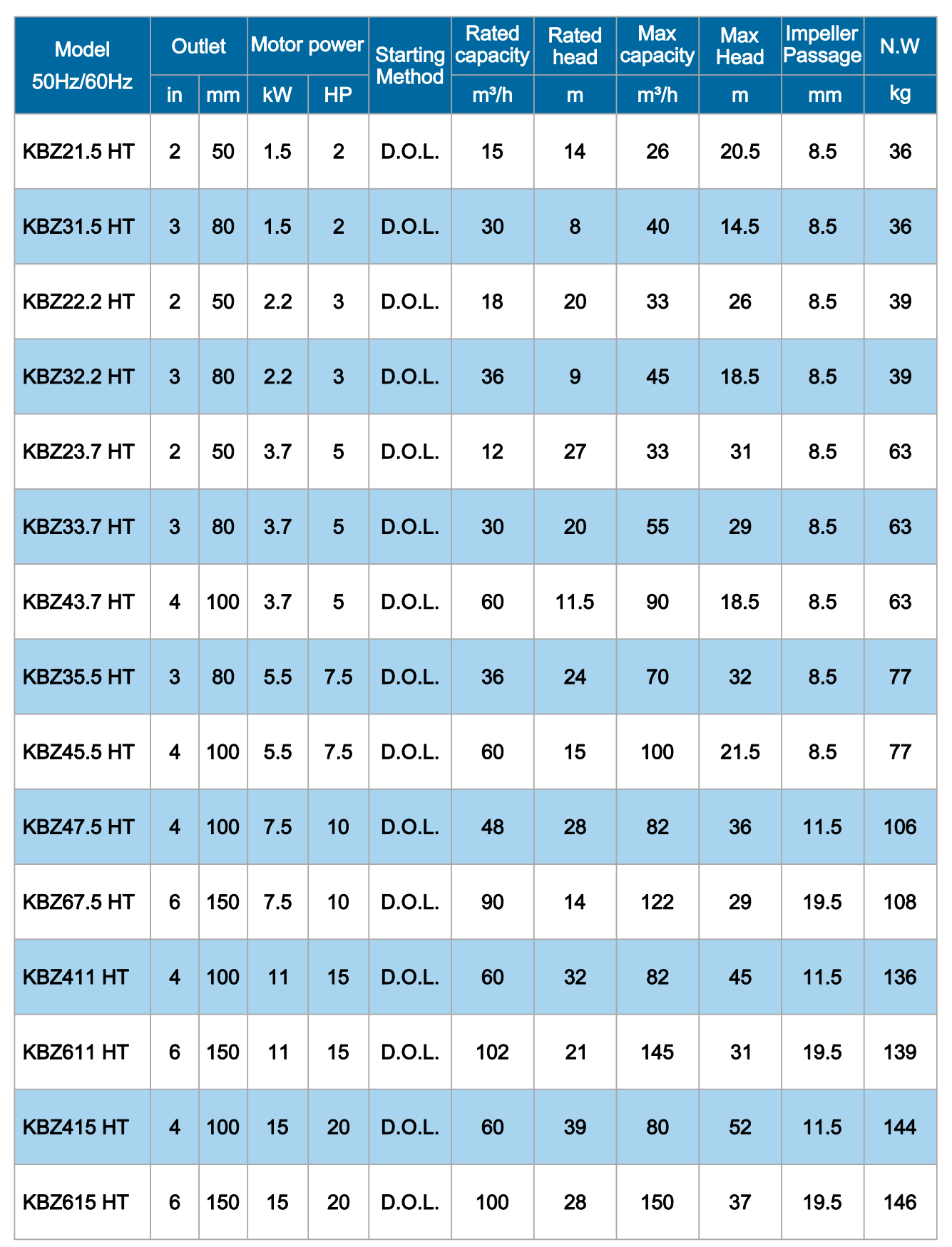

Discharge Bore : 50-150mm
Power:1.5kW (2HP) to 15 kW (20HP)
Insulation class : H
Protection class : IP68
Water temperature : up to 80℃
PH : 6 to 10
Power supply :
three phase 400V ±10%, 50Hz
three phase 380V ±10%, 60Hz
Motor protection : not have

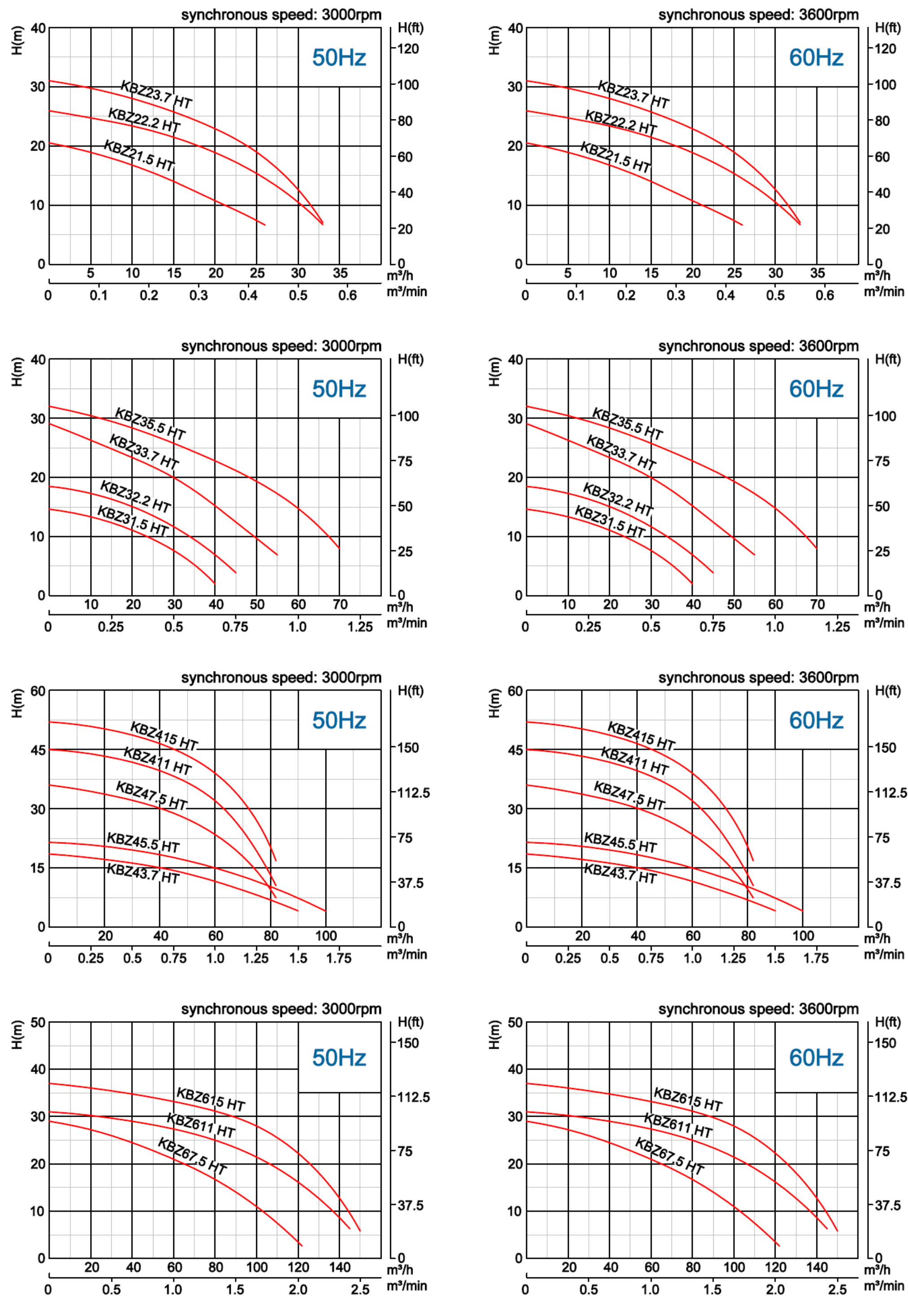

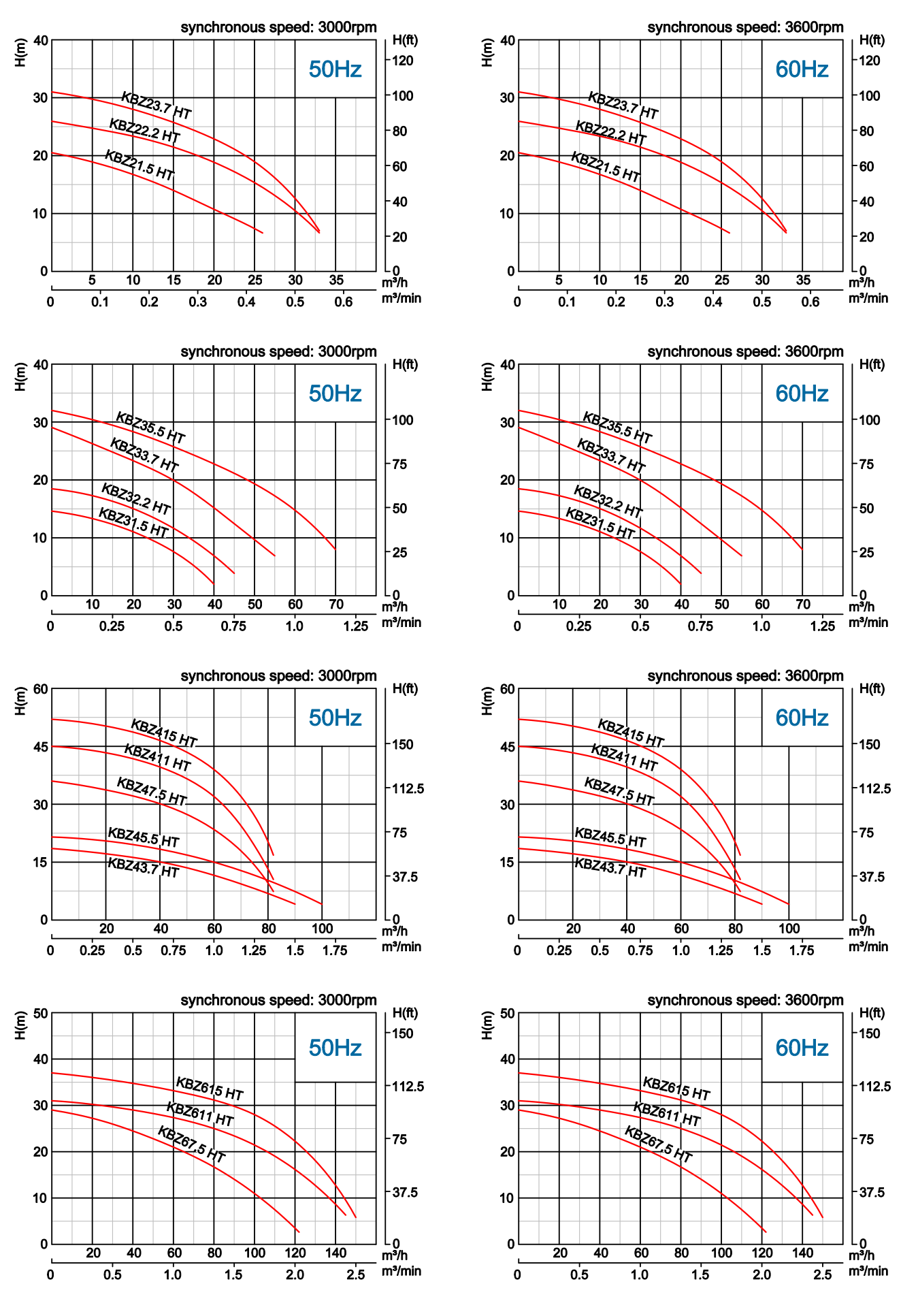

Capacity : up to 150m³/h
Head : up to 52m
Maximum immersion depth : 25m
Cable Length : 8m
:
KBZ submersible drainage pump for high temperature liquids
pump body
KBZ submersible drainage pump for high temperature liquids
grinder system1
KBZ submersible drainage pump for high temperature liquids
grinder system2
KBZ submersible drainage pump for high temperature liquids
impeller
