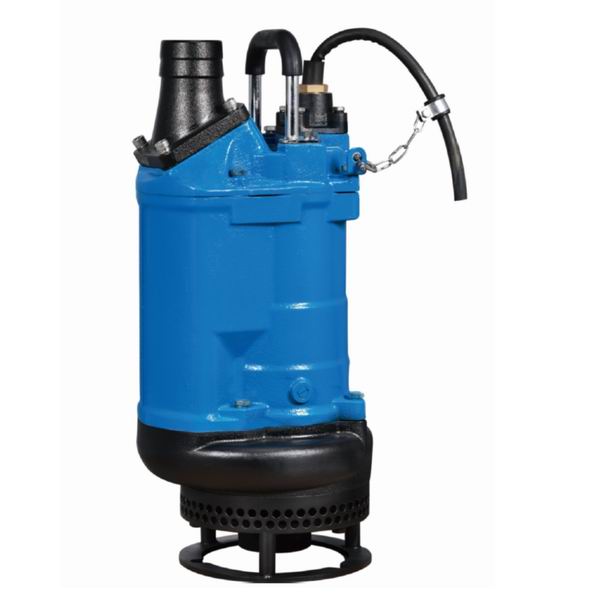

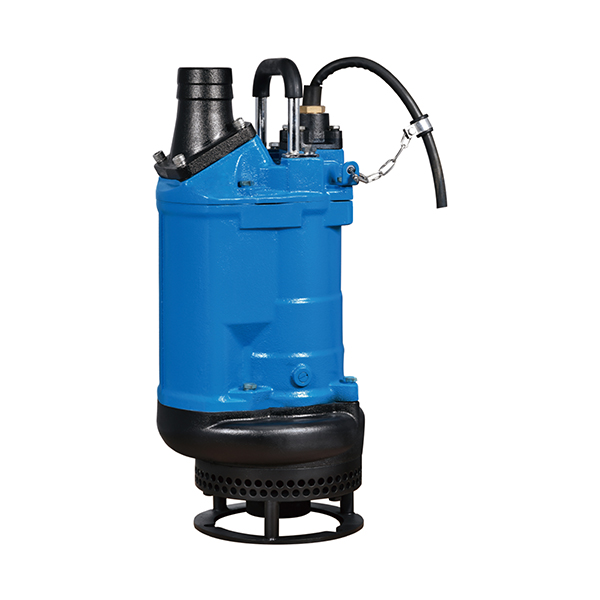

KBD SUBMERSIBLE DRAINAGE PUMP

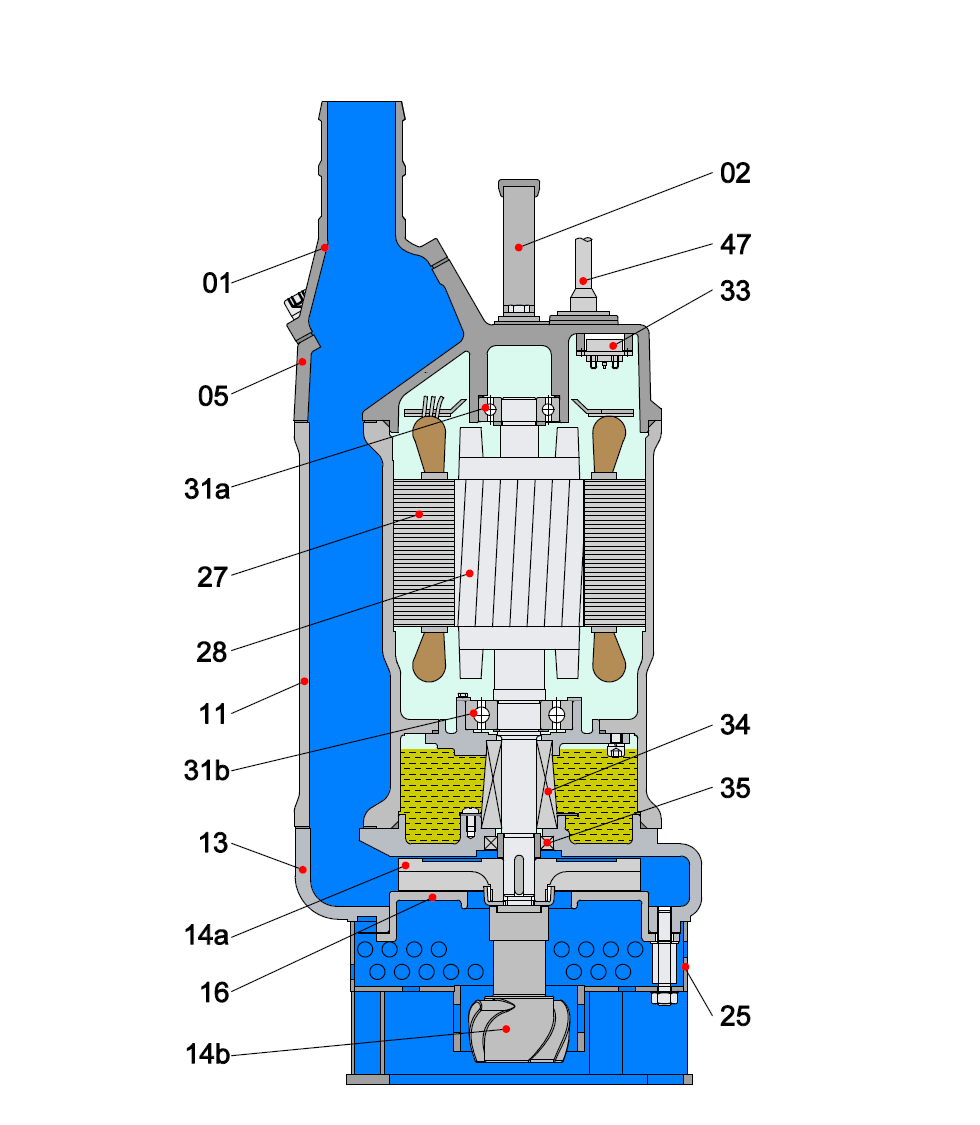

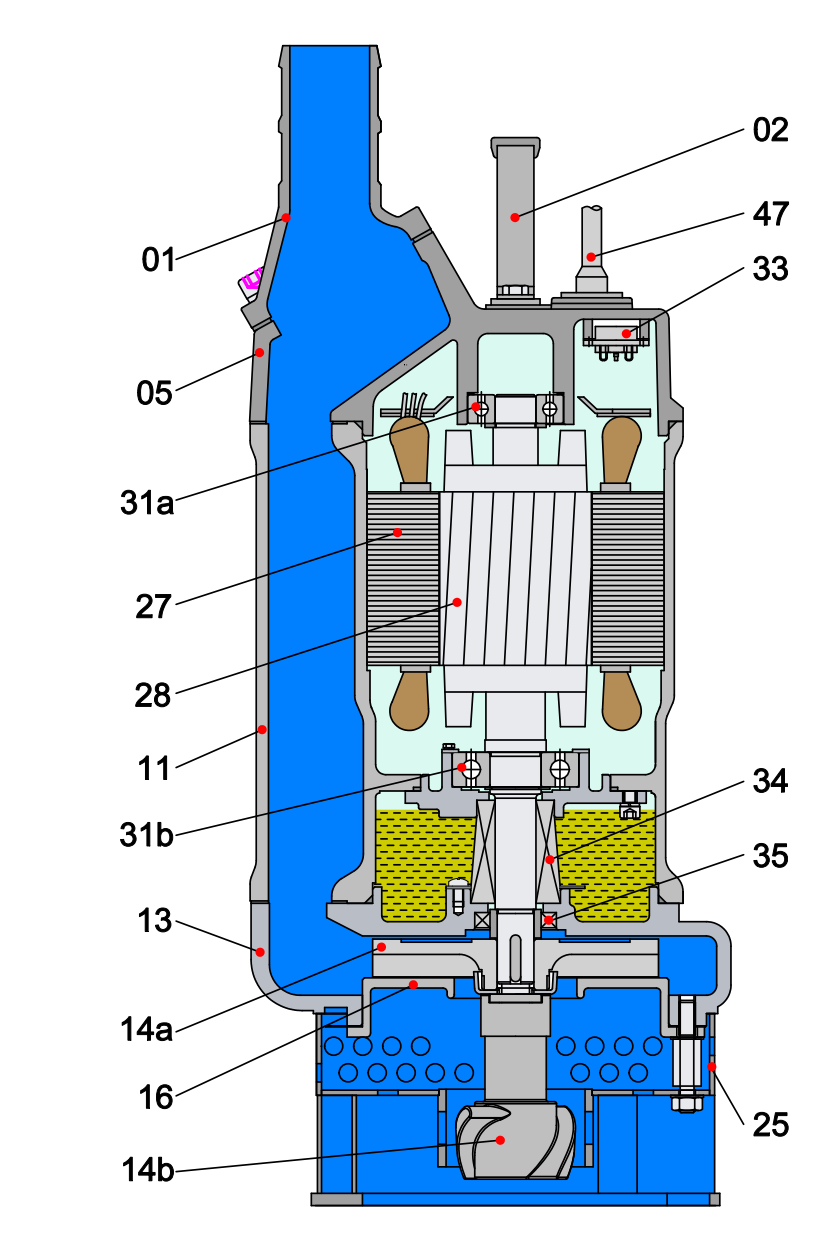

Structure and characteristics

The Agitator Pump KBD Series is a cast iron made, heavy-duty slurry pump employinig the KBZ Series as the base.

An agitator is provided to assist smooth suction of the pumping fluid.

The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to be placed in a confined space.

This pump is suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.

Main advantages

Protect against reverse phase, ensuring correct impeller rotation;

Protect against open phase or impeller jam, thus prevent accidental damage;

Automatically stop the pump in event of overload, abnormal voltage and recovery 5min later;

The pump stops working at high temperature, and will automatically restart after cooling to the specified temperature;

The water sensor’s height is adjustable to control pump operation and stop;

The pump stops working within 60s when water level is below the probe, when the water level rises to contact the electric probe, pump starts operating again;

Rapid assessment about the pump operation and malfunction history.

Application:

Civil engineering

Mines, quarries, coal mine & slurries

Sewage treatment plants

General pumping purposes

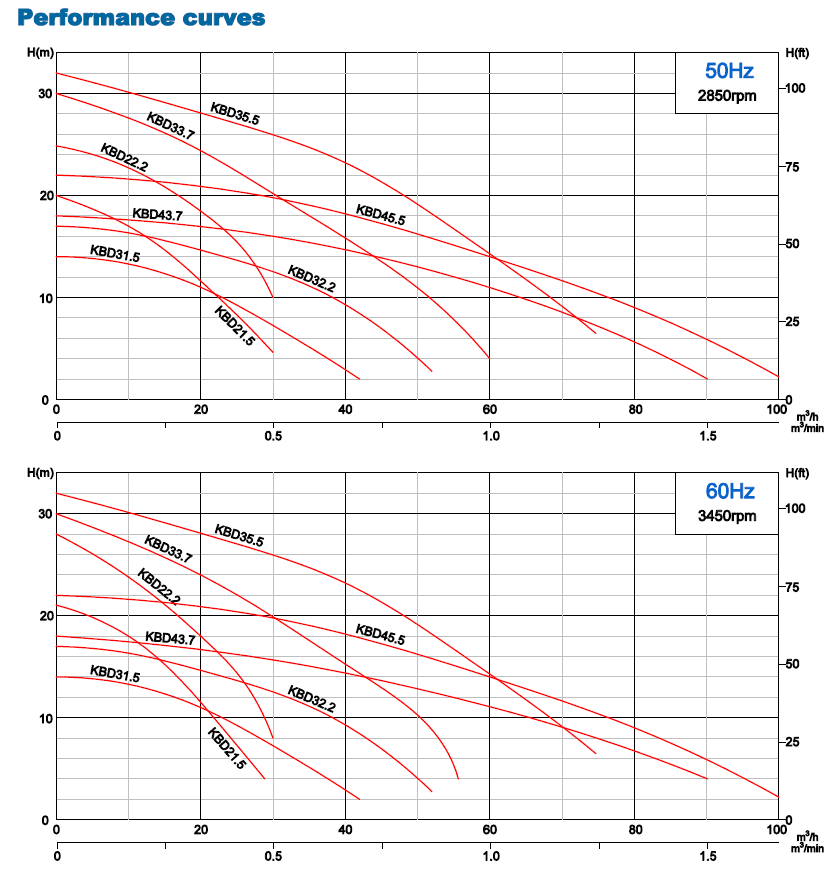

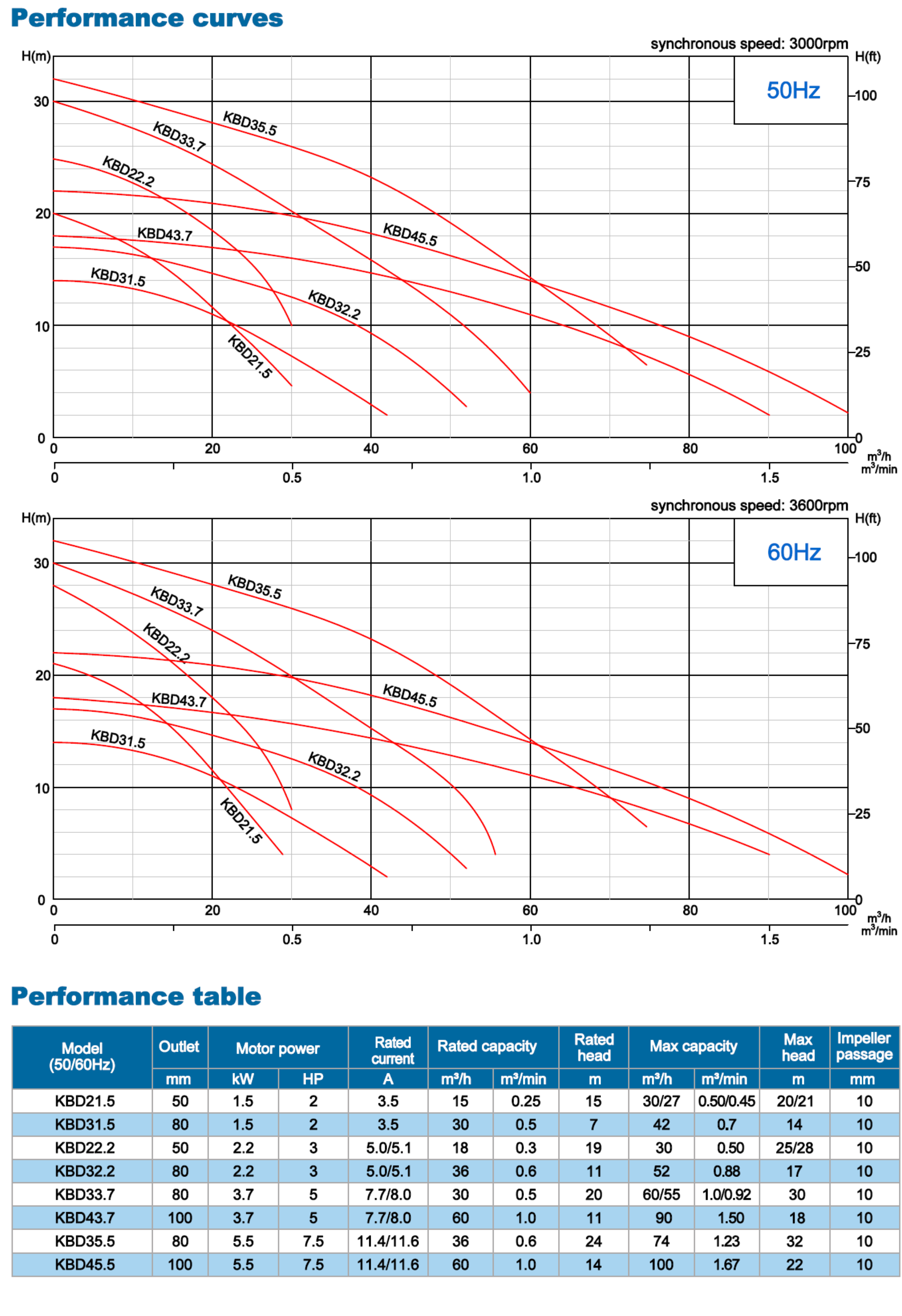

Series Product Specfications

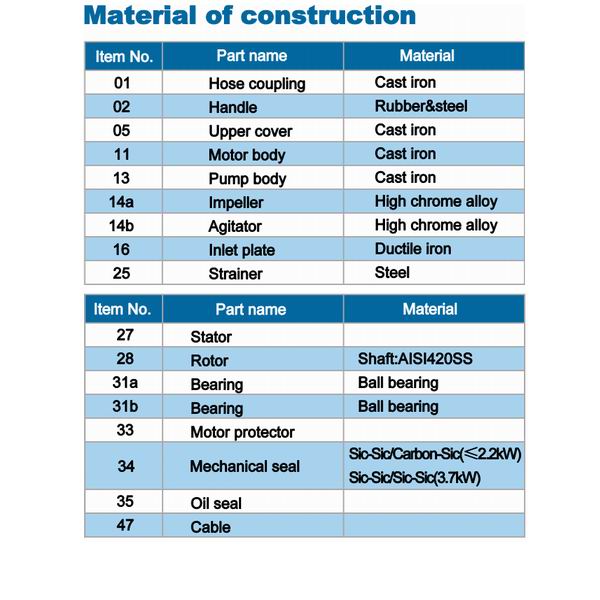

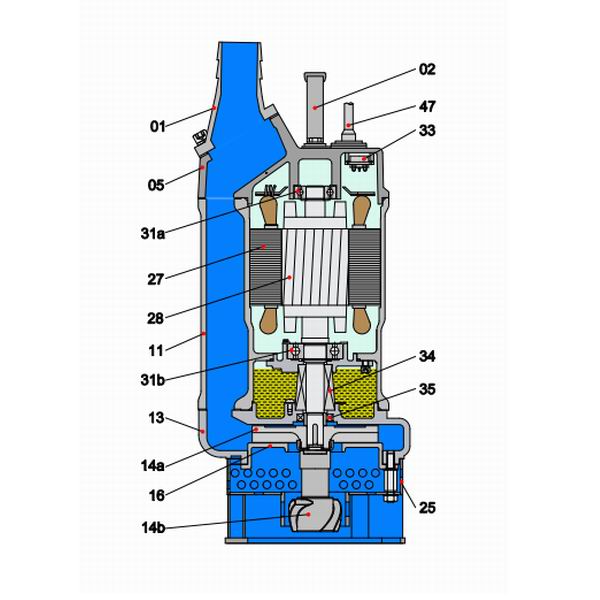

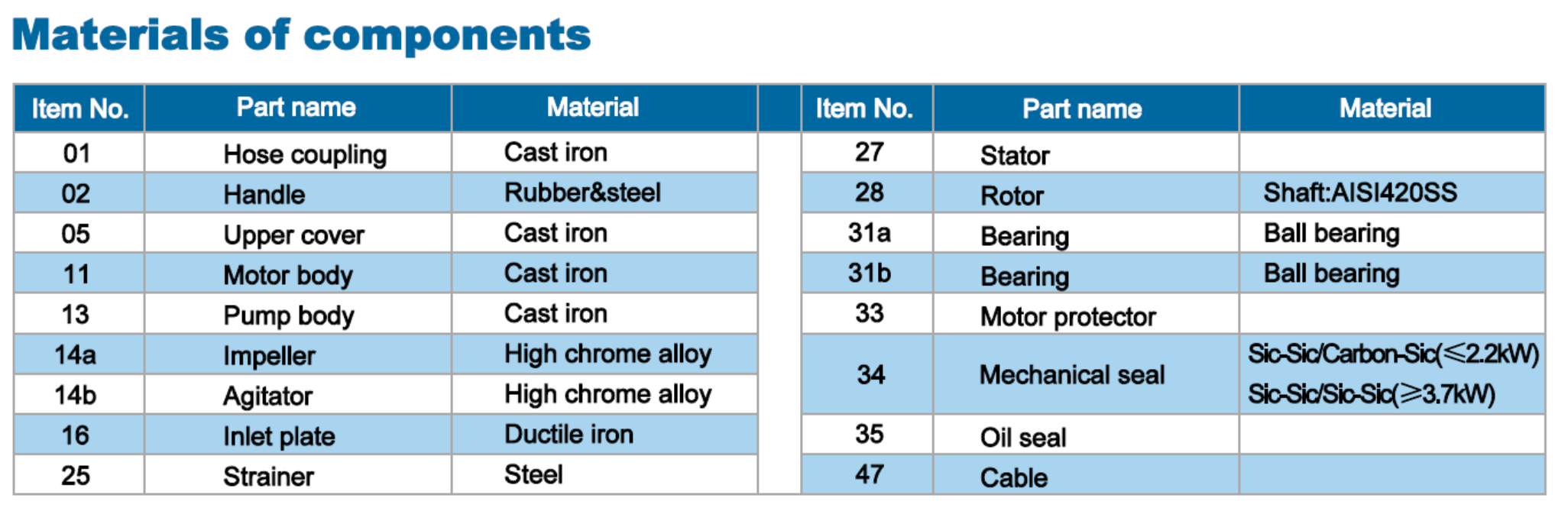

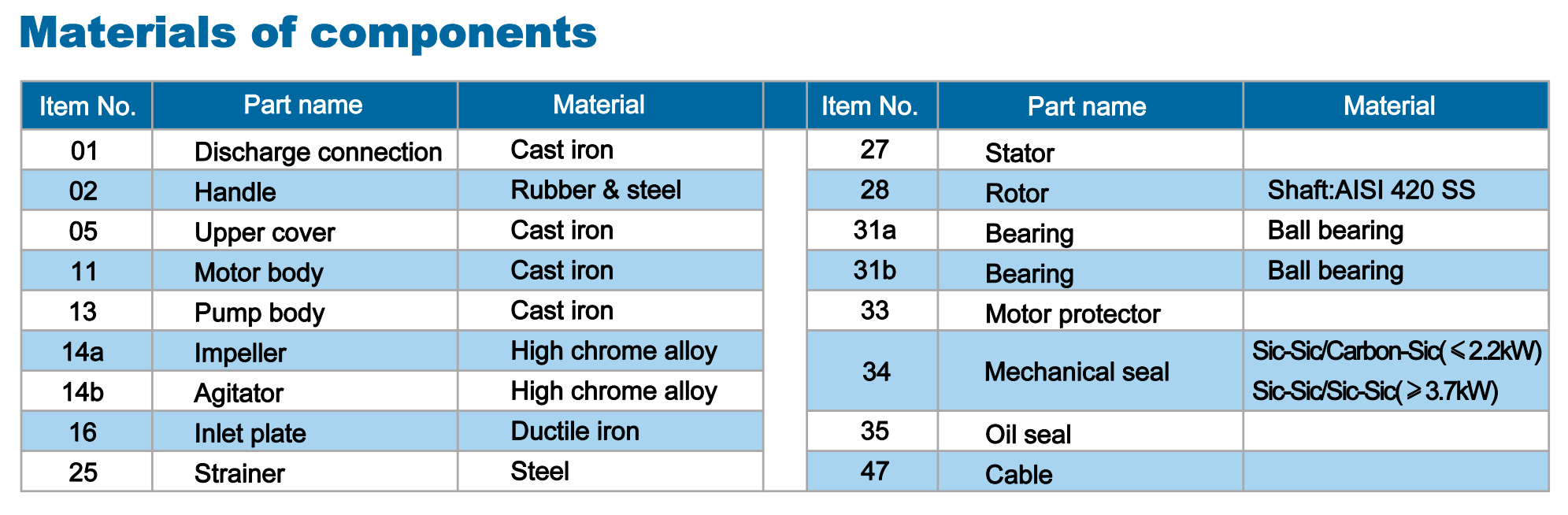

Material of Construction

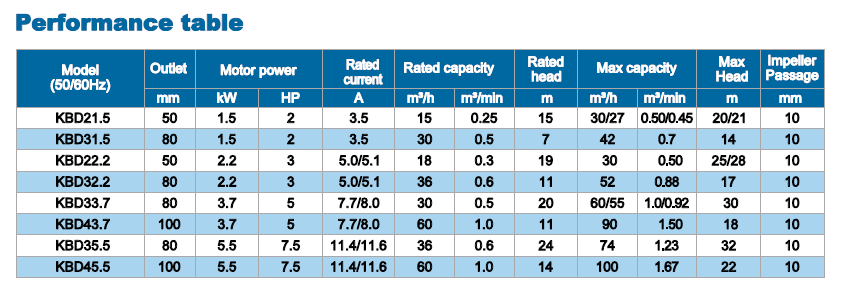

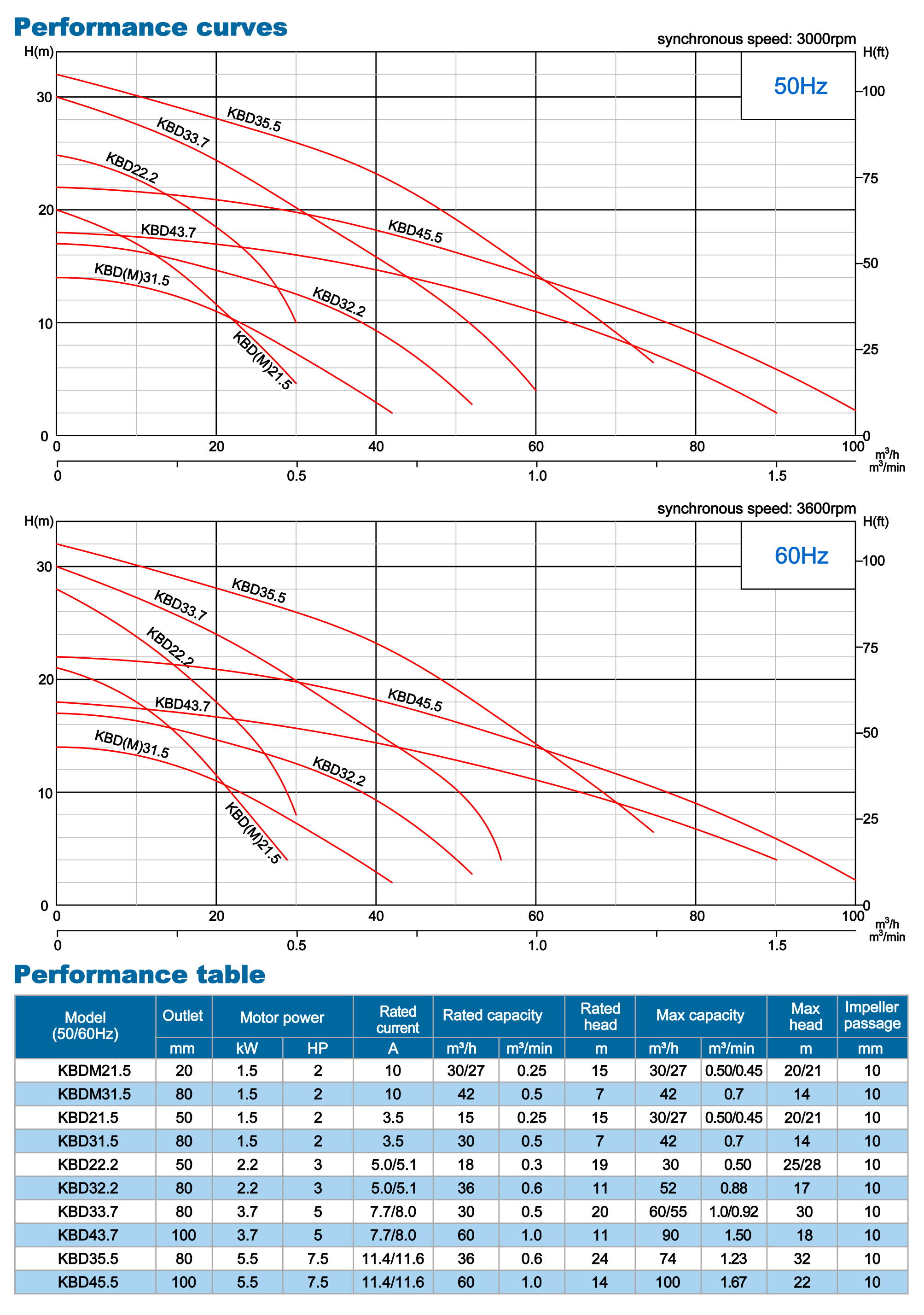

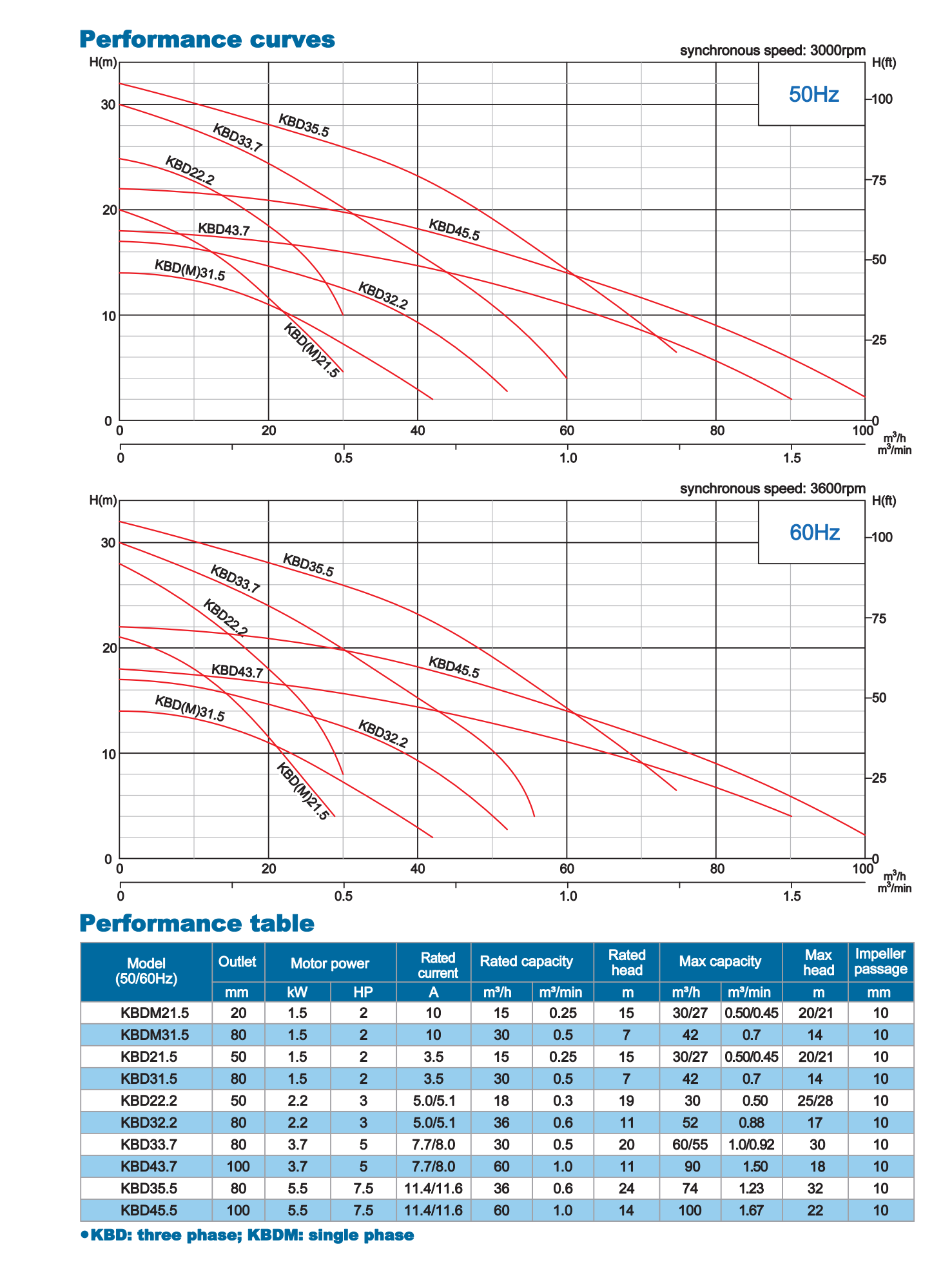

Specification

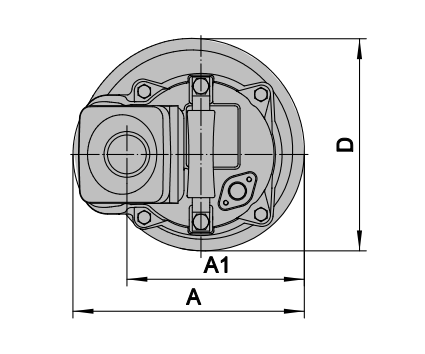

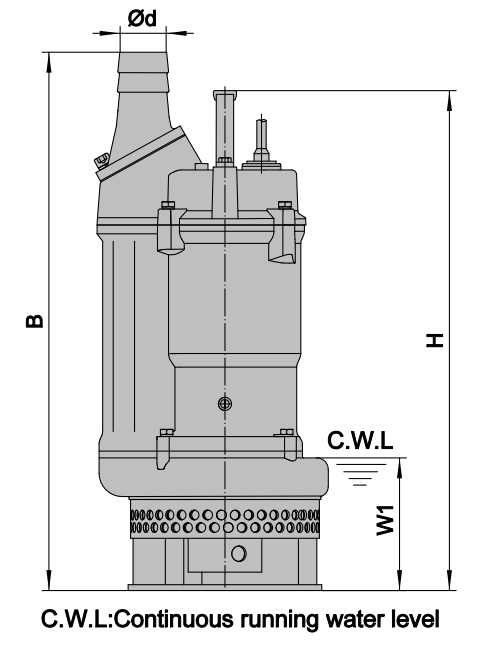

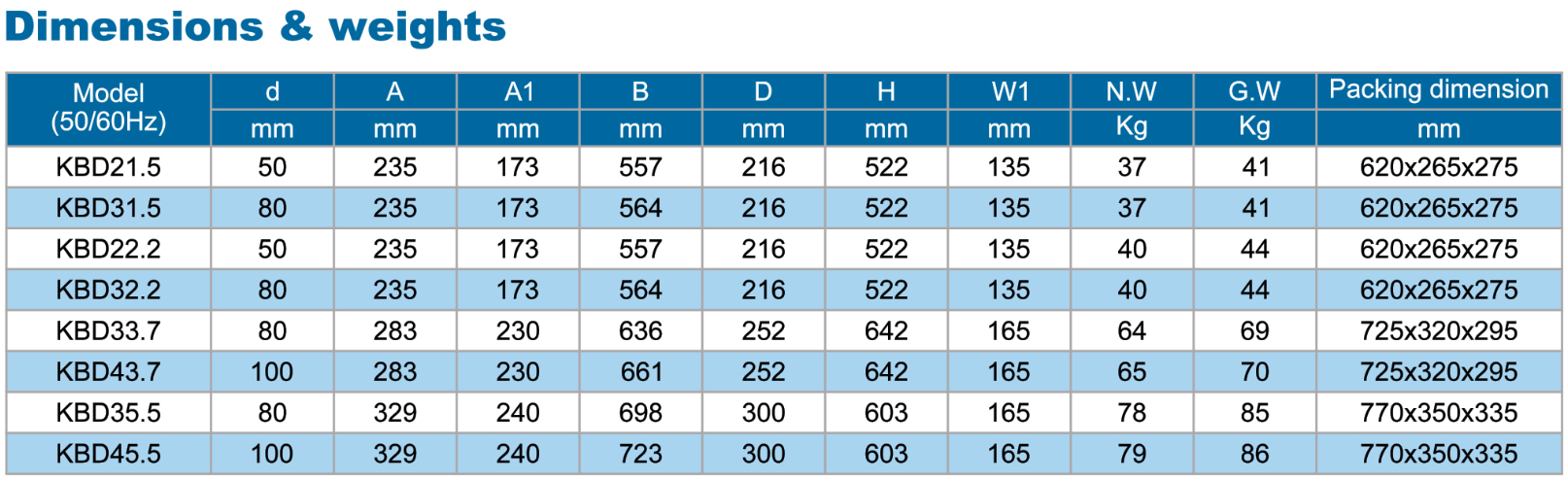

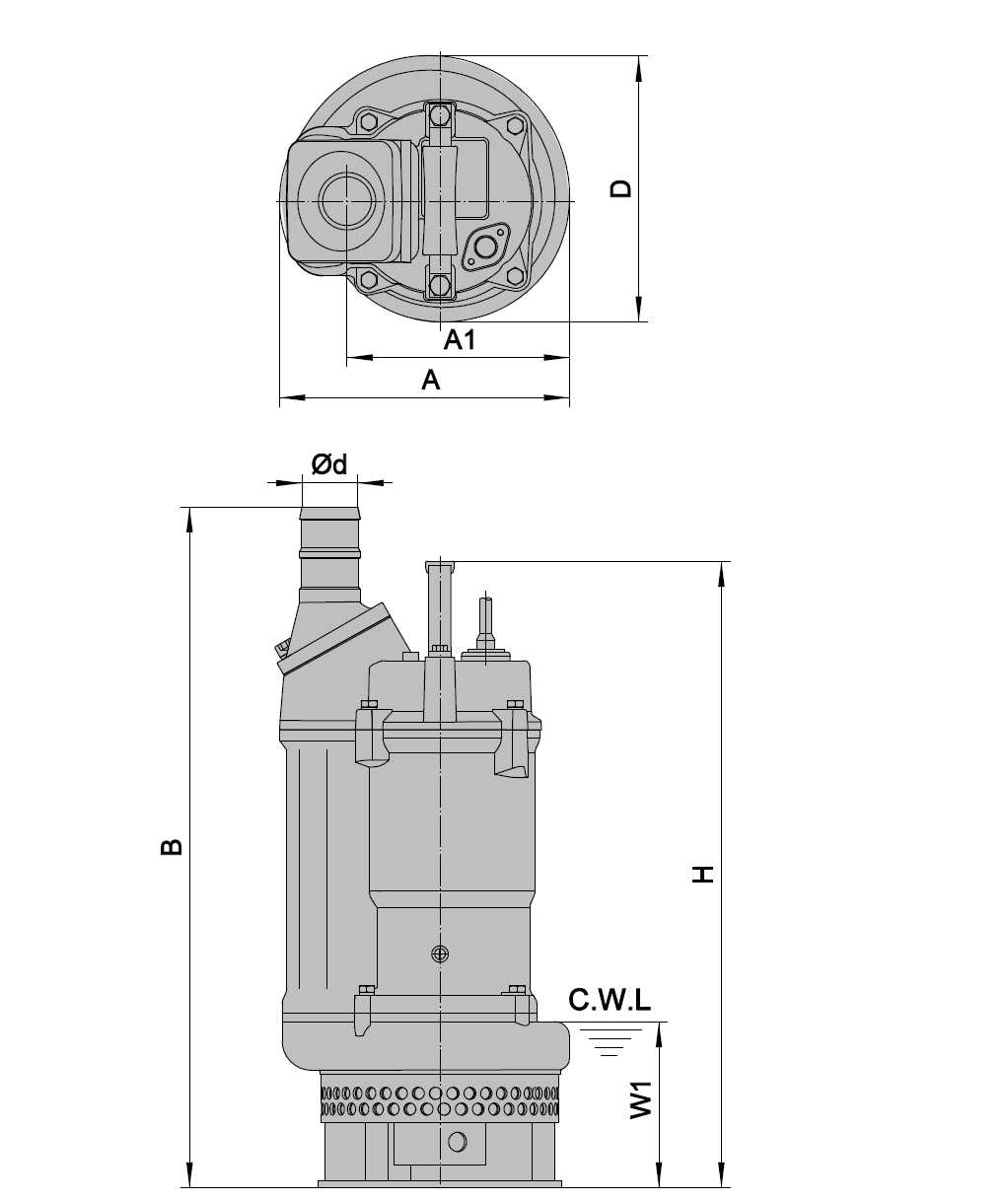

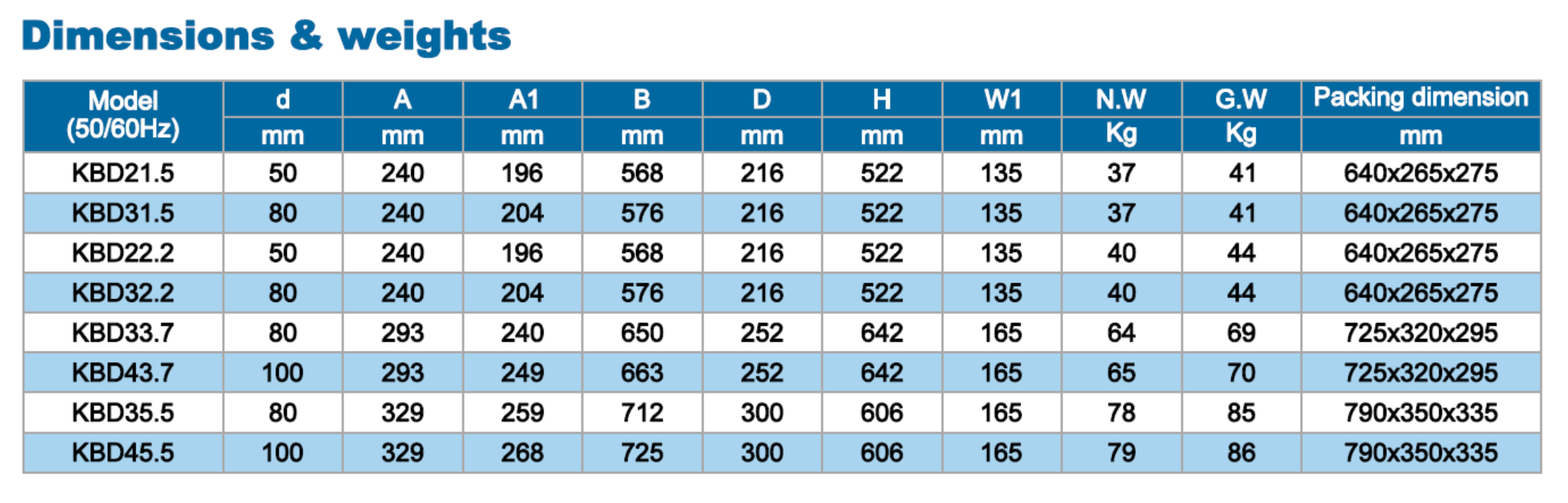

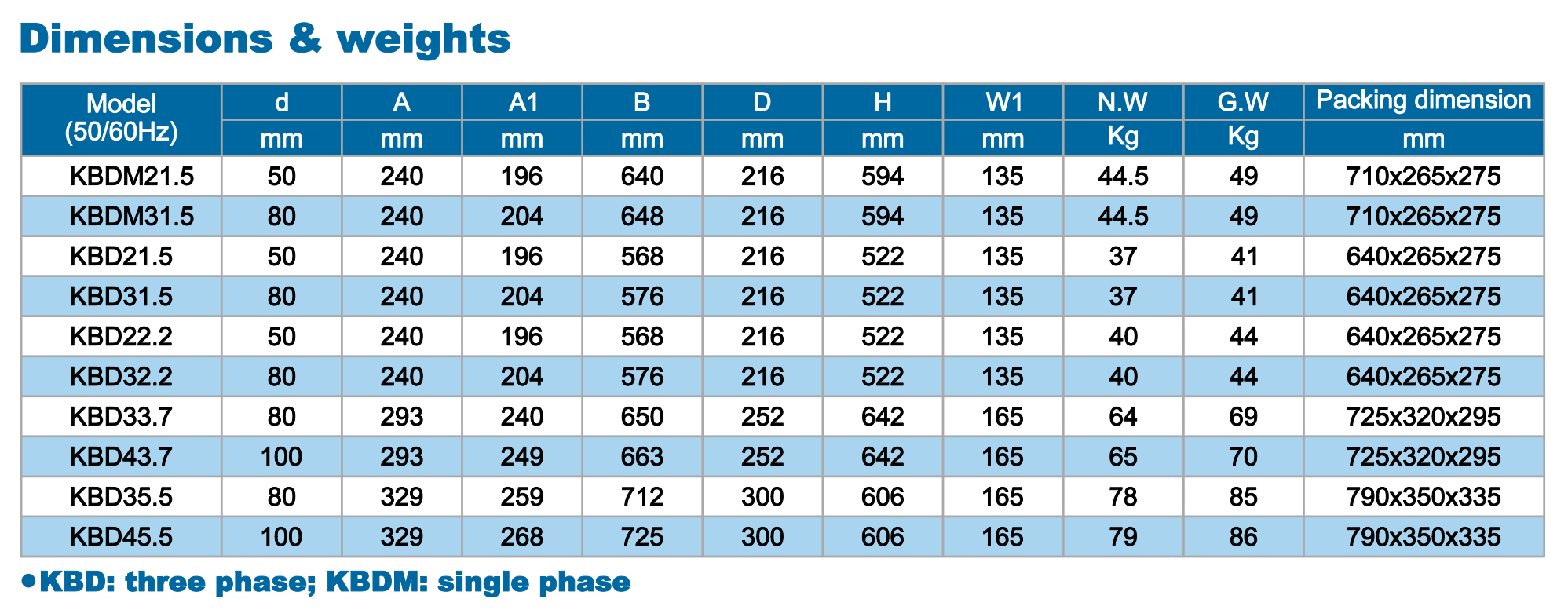

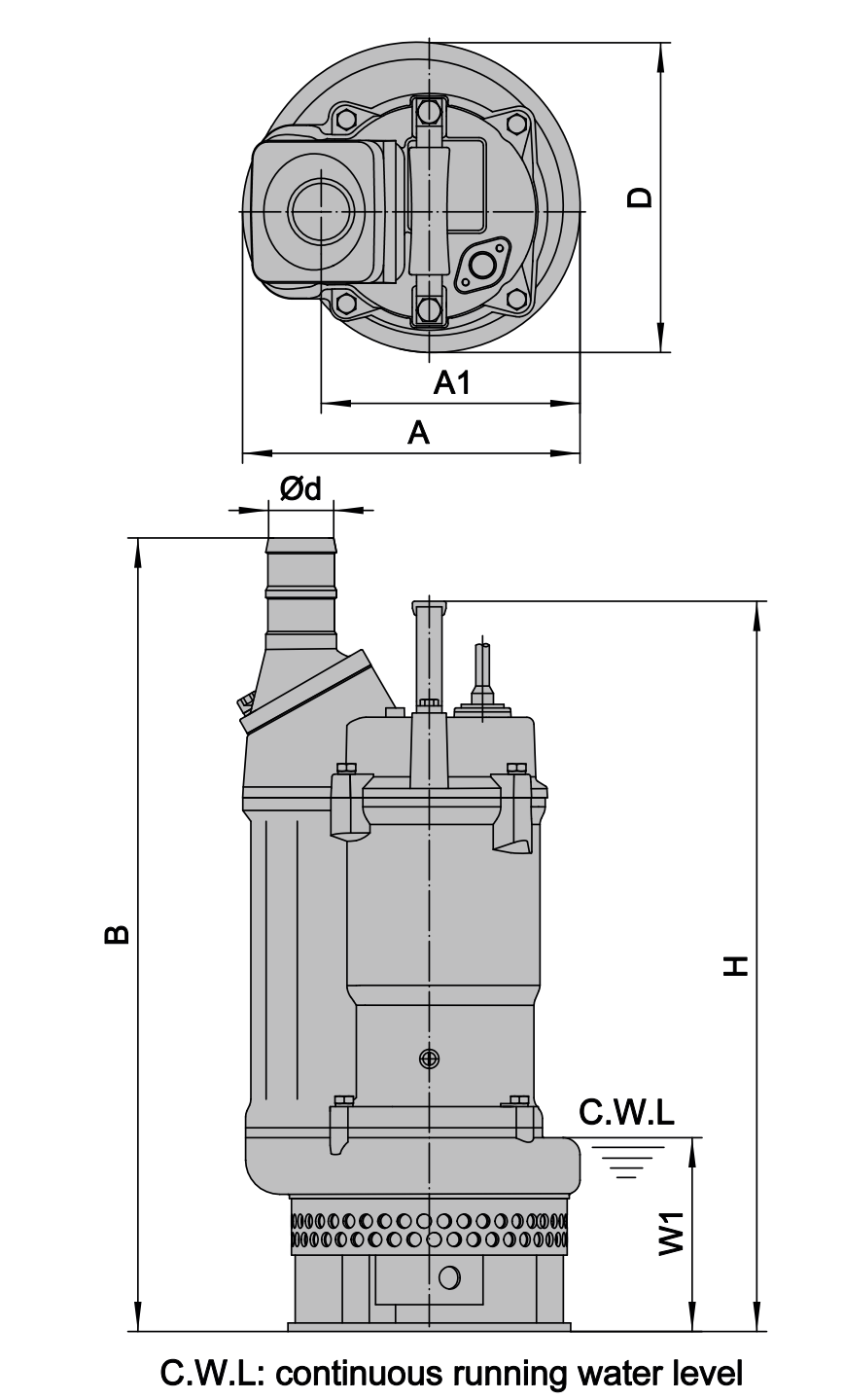

Packing Dimension




Consumable Parts

KBD SUBMERSIBLE DRAINAGE PUMP

agitator

KBD SUBMERSIBLE DRAINAGE PUMP

impeller

KBD SUBMERSIBLE DRAINAGE PUMP

inlet plate

KBD SUBMERSIBLE DRAINAGE PUMP

pump body
