KBDE INTELLIGENT SUBMERSIBLE DRAINAGE PUMP

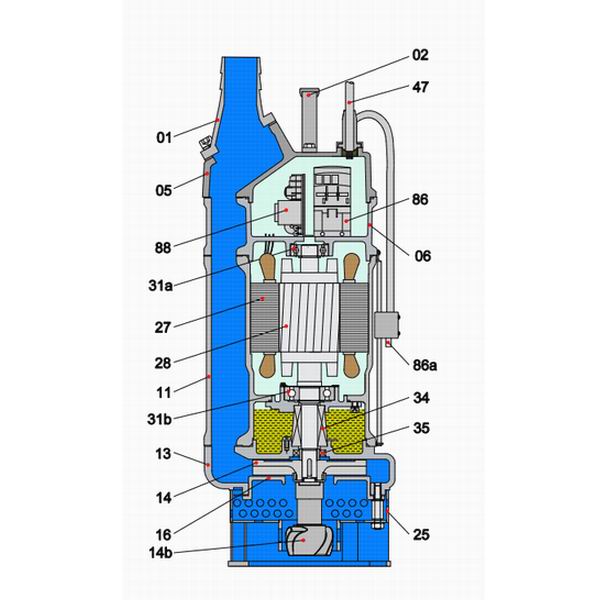

Structure and characteristics

The Agitator Pump KBDE Series is a cast iron made, heavy-duty slurry pump employinig the KBZ Series as the base.

An agitator is provided to assist smooth suction of the pumping fluid.

The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to be placed in a confined space.

This pump is suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.

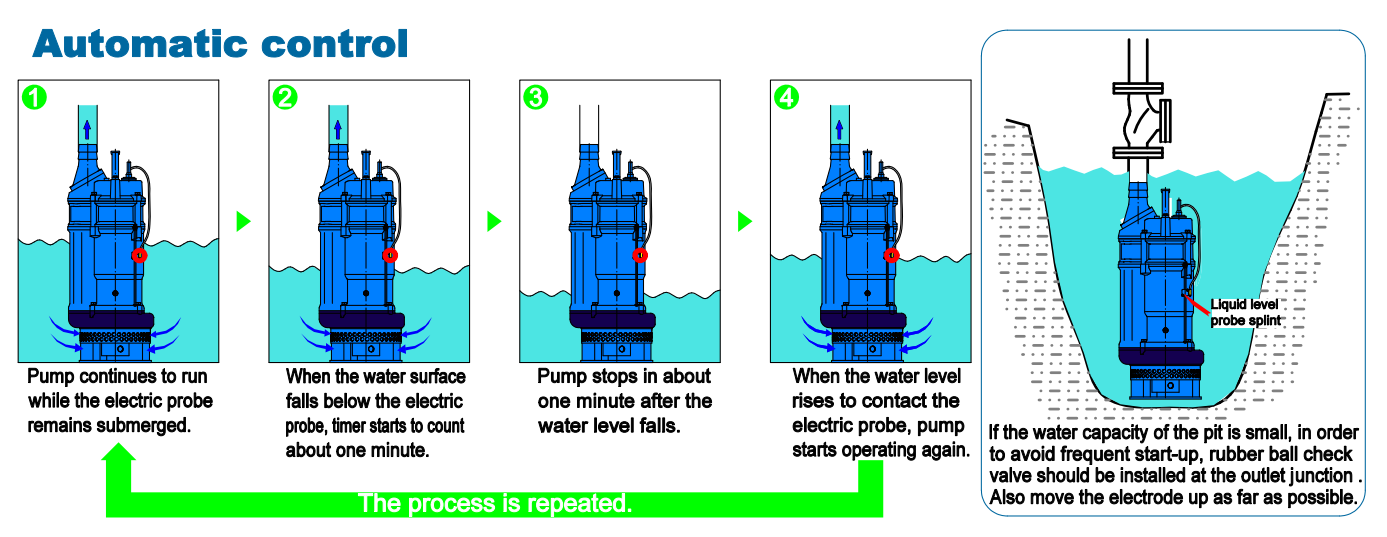

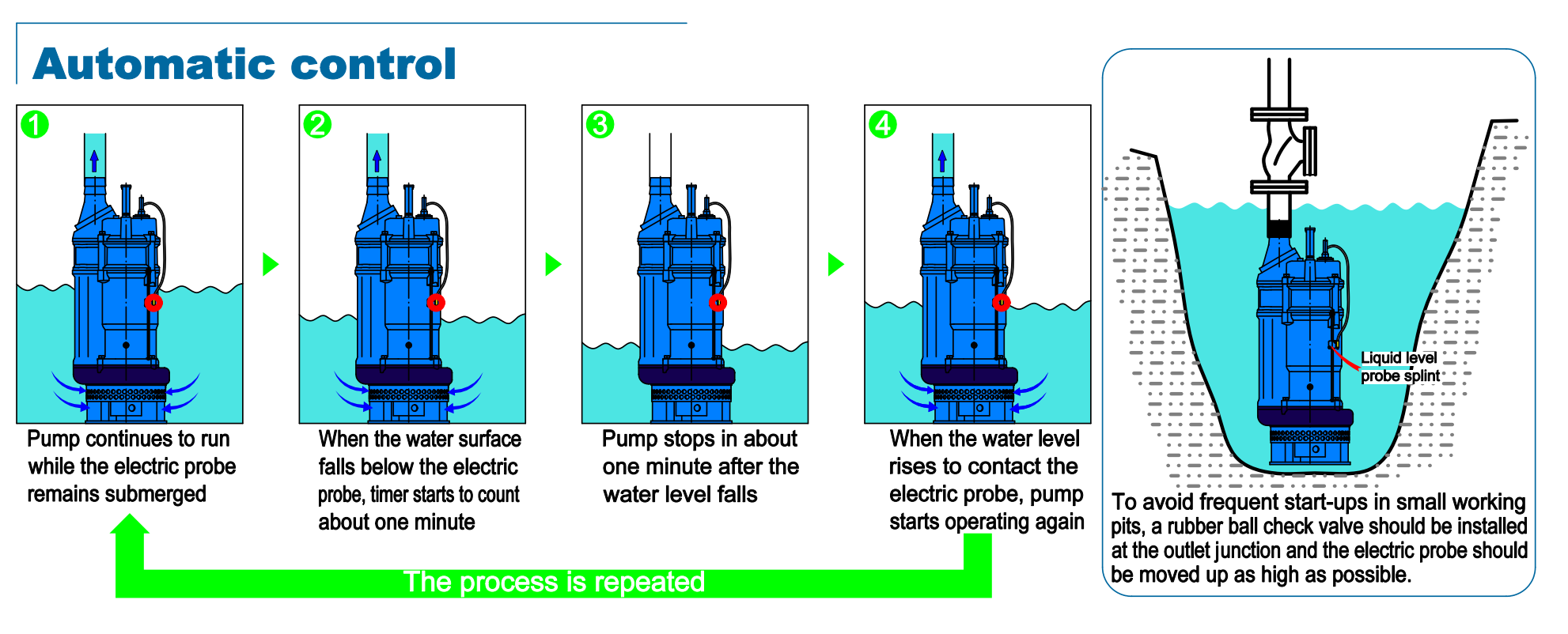

The pump can operate automatically with built-in intelligent control system, thus achieve low total energy costs.

Application:

Civil engineering

Mines, quarries, coal mine & slurries

Sewage treatment plants

General pumping purposes

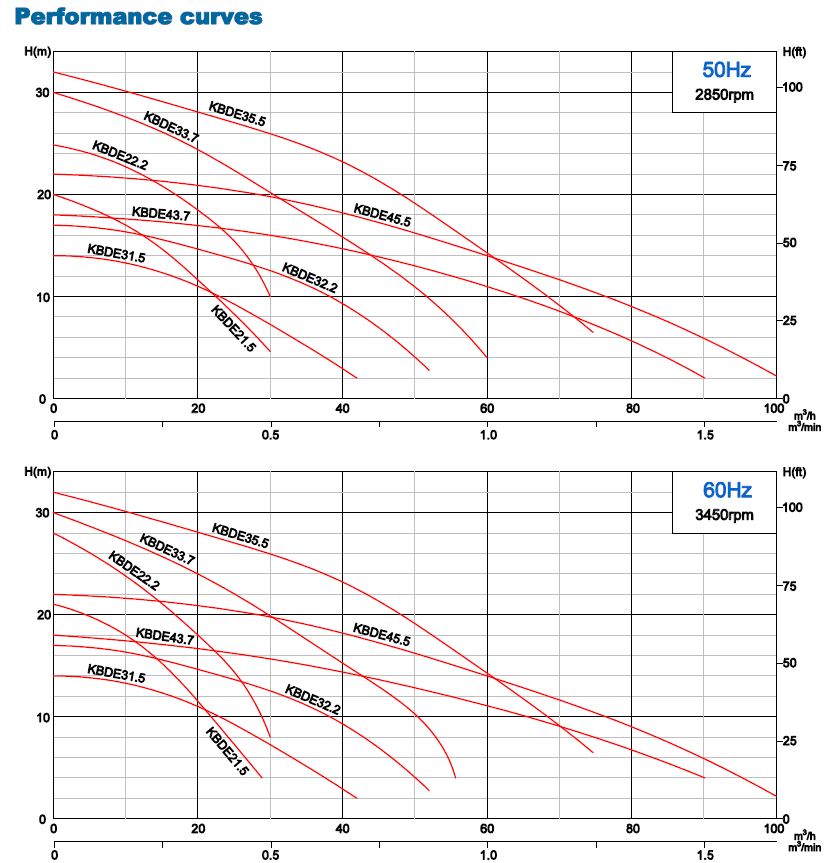

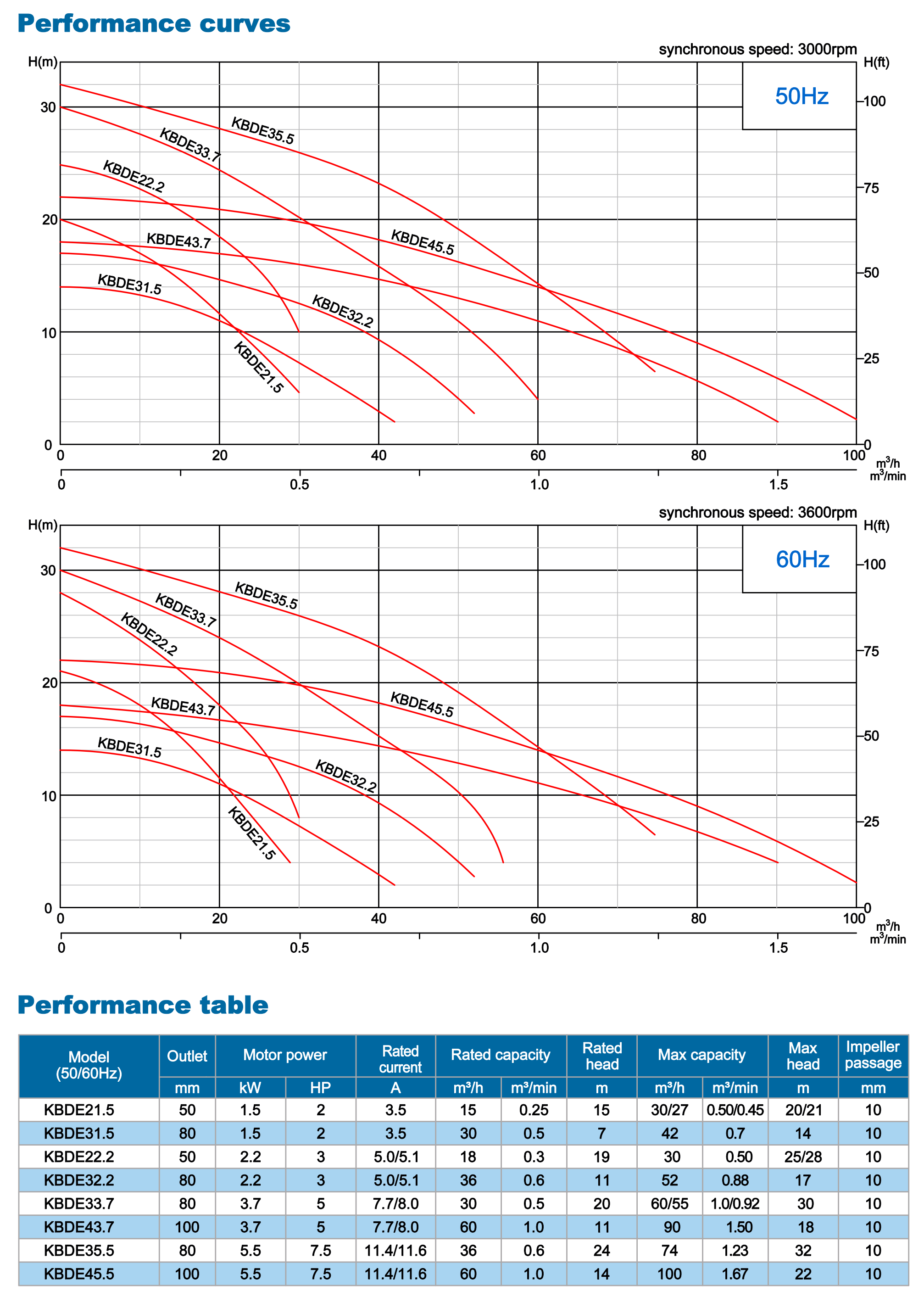

Series Product Specfications

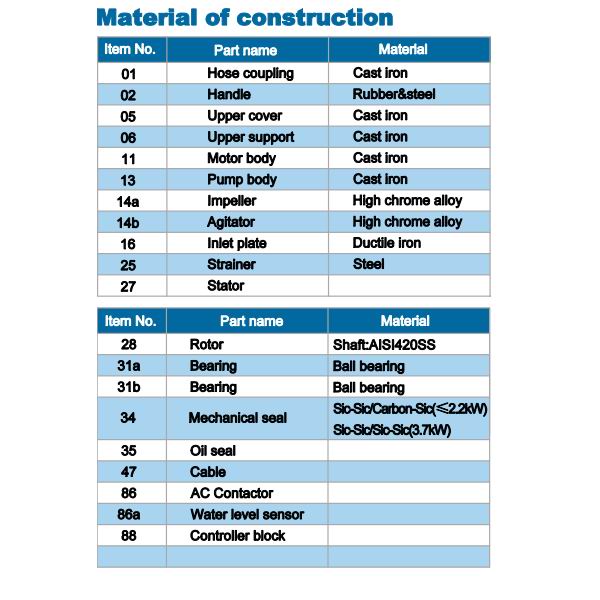

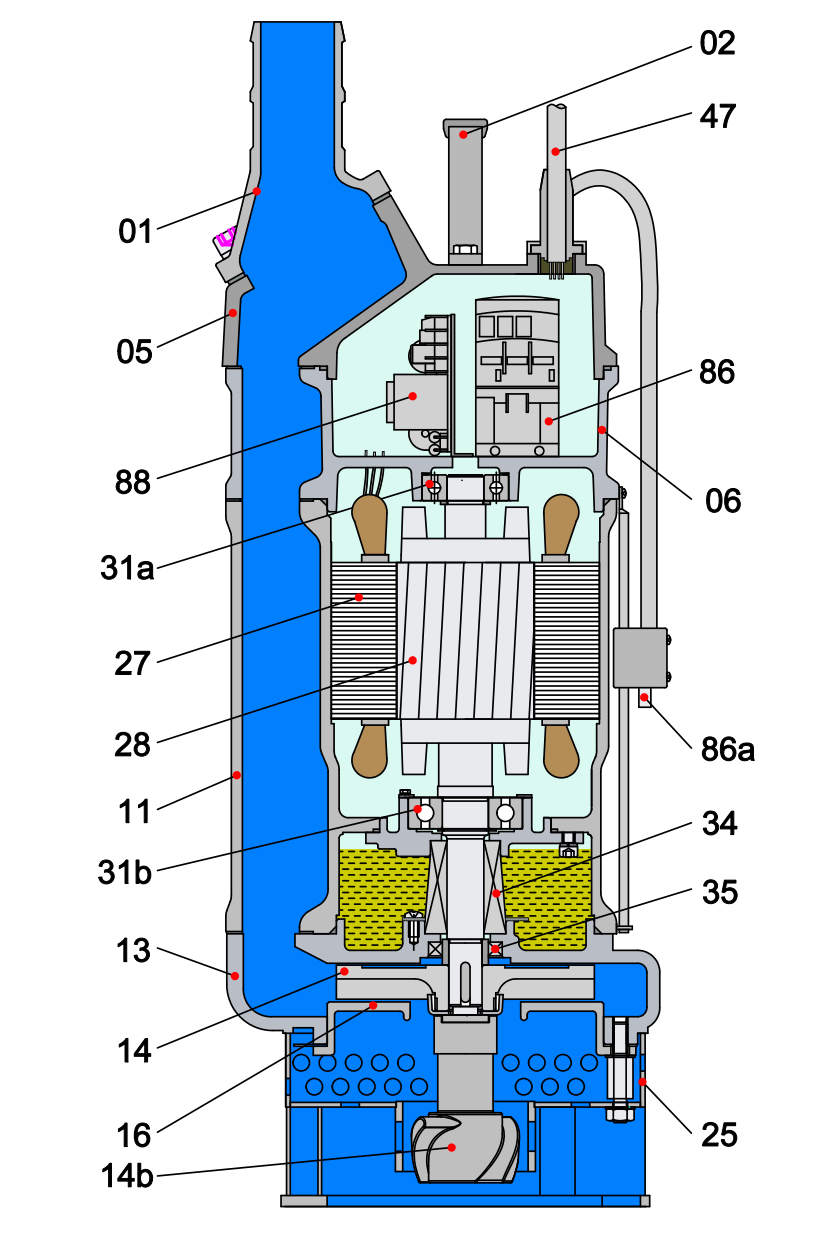

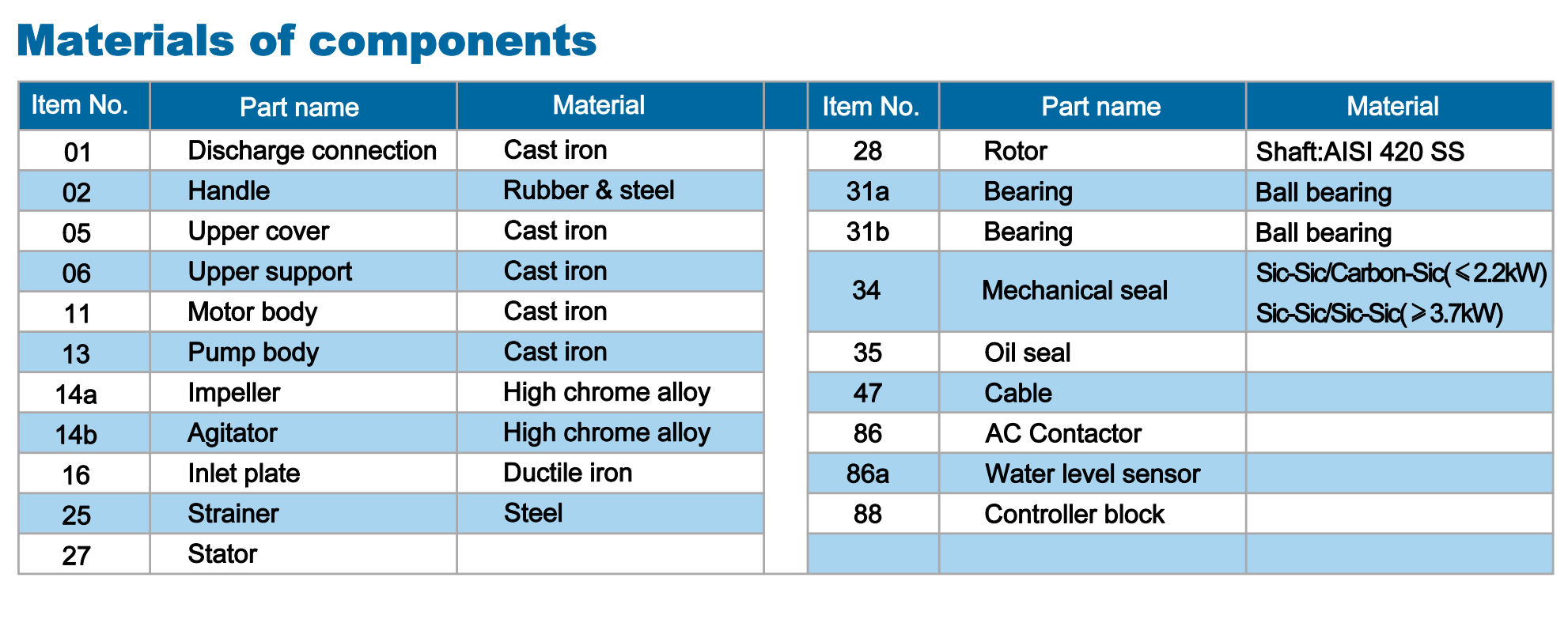

Material of Construction

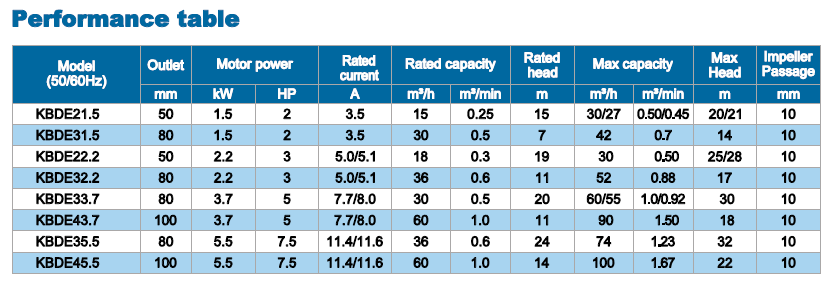

Specification

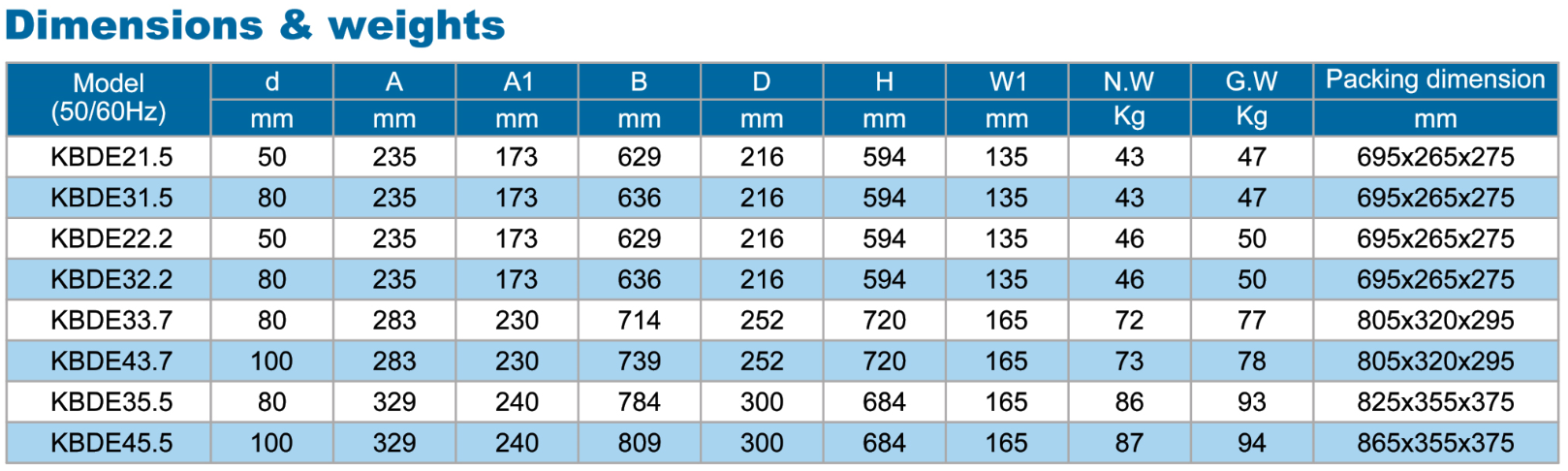

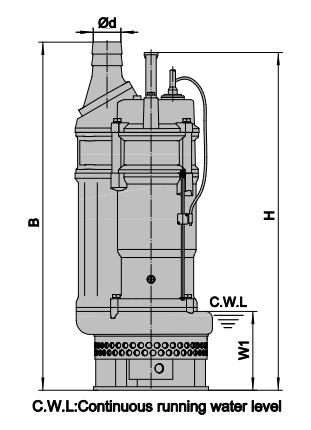

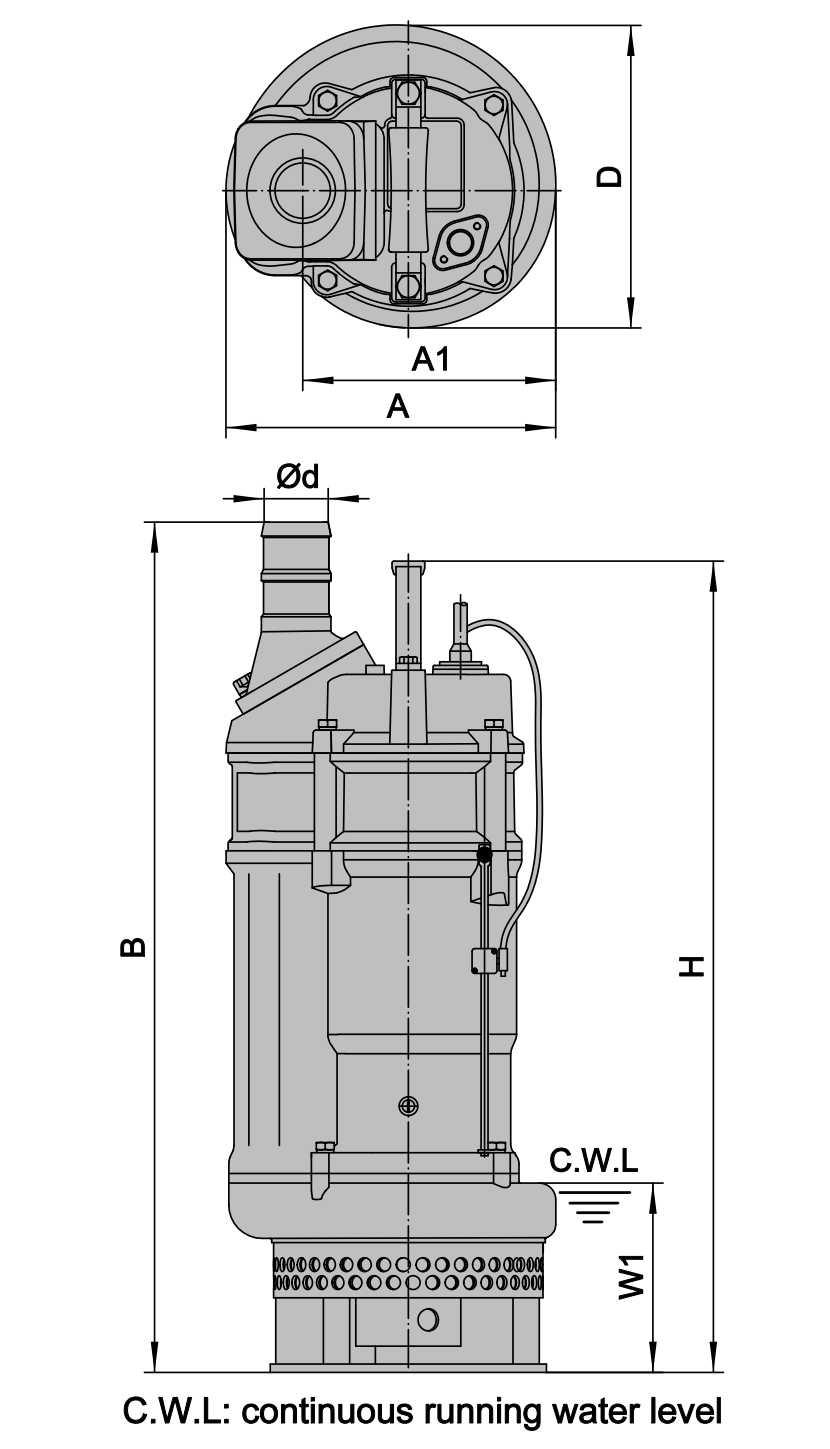

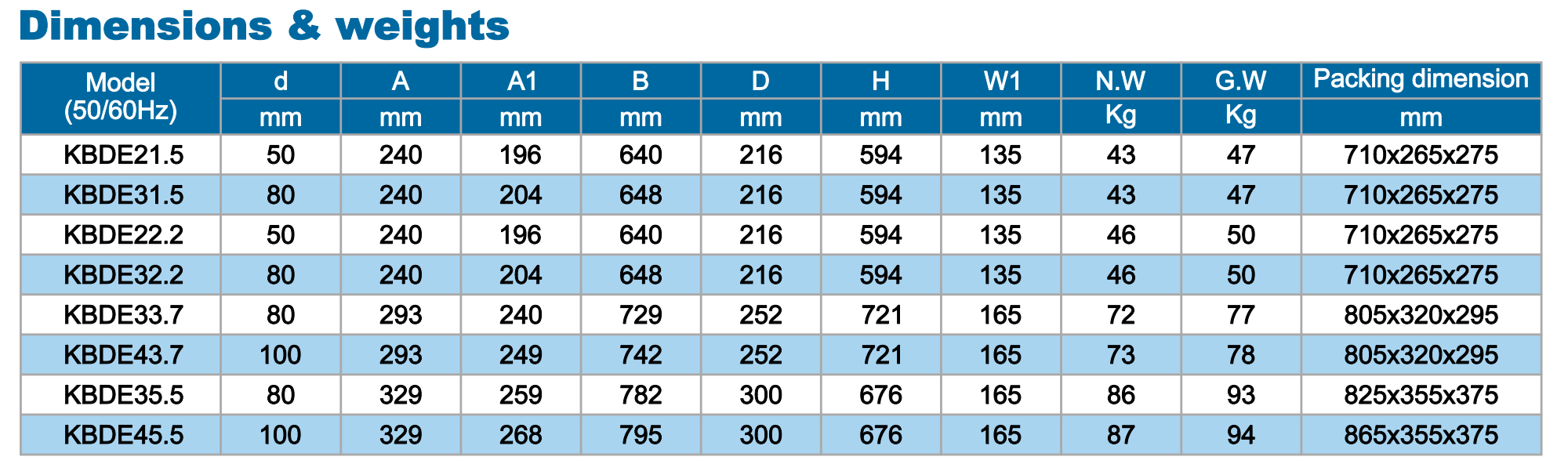

Packing Dimension




Consumable Parts

KBDE INTELLIGENT SUBMERSIBLE DRAINAGE PUMP

agitator

KBDE INTELLIGENT SUBMERSIBLE DRAINAGE PUMP

impeller

KBDE INTELLIGENT SUBMERSIBLE DRAINAGE PUMP

inlet plate

KBDE INTELLIGENT SUBMERSIBLE DRAINAGE PUMP

pump body
