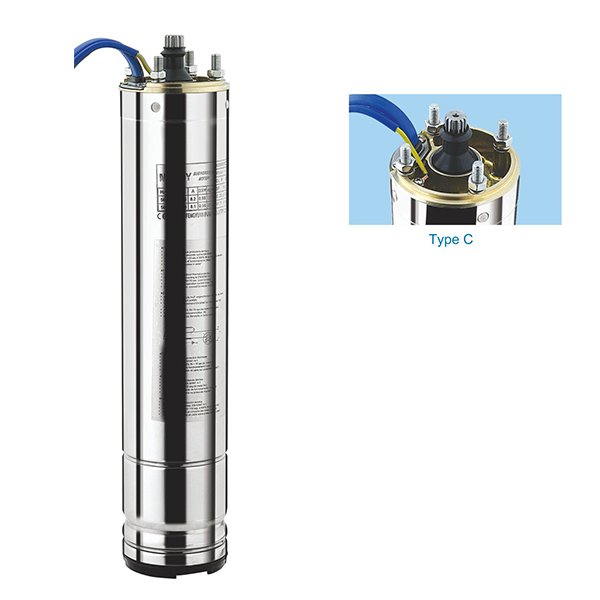

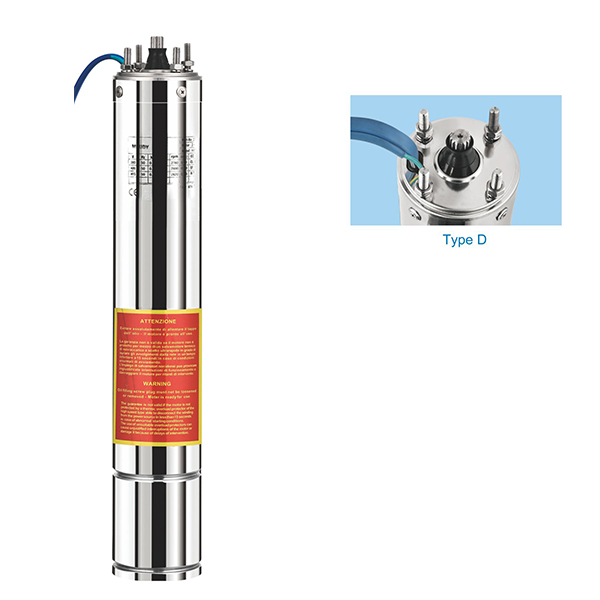

4SD(M) SUBMERSIBLE MOTOR – TYPE C D

Structure and characteristics

Motors are designed with quality material and unique features to assure years of dependable operation.
NEMA Standard flange connector.
Oil-filled motor keeps windings cool, permanently lubricated bearings to provide reliable pump service.
Watertight  double-insulated  cable entry system  prevents capillary action and protects against moisture .
A rubber diaphragm is provided to guard against pressure and volume variations due to thermal expansion of oil inside the motor.

Specification

Insulation class: F

Protection class: IP68

Water temperature: up to 35
PH: 6.5 - 8.0.

Maximum No.of starts per hour:30

Maximum immersion depth: 150 m.
Fluid-lubricated thrust bearings.

Lip seal protected by sand guard.
Fitted with watertight connector.

Power: single-phase:0.37 kW2.2kW

            three-phase: 0.37 kW7.5 kW.

Power supply:single-phase 230V±10%,50Hz. 220V±10%,60Hz
                         three-phase 230V±10%,50Hz. 220V±10%,60Hz
                         three-phase 400V±10%,50Hz. 380V±10%,60Hz
Axial load:1500 N(0.37 kW
0.75 kW);
                 2500N(1.1 kW
2.2 kW).
                 4500N(3 kW
4 kW).
                 9000N(5.5kW
7.5kW)

Series Product Specfications

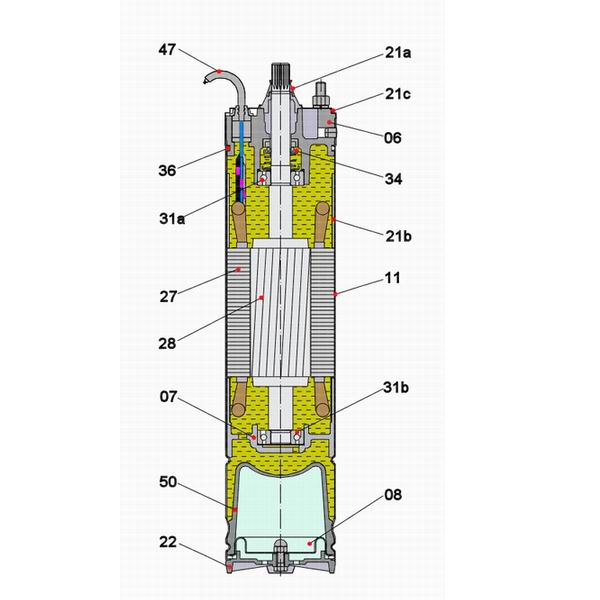

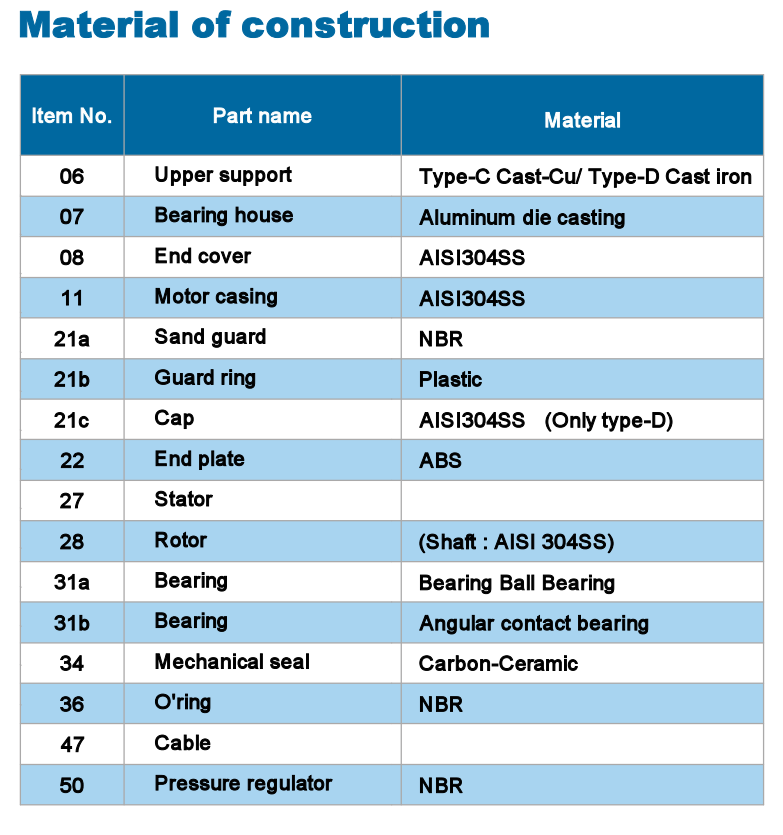

Material of Construction
Specification

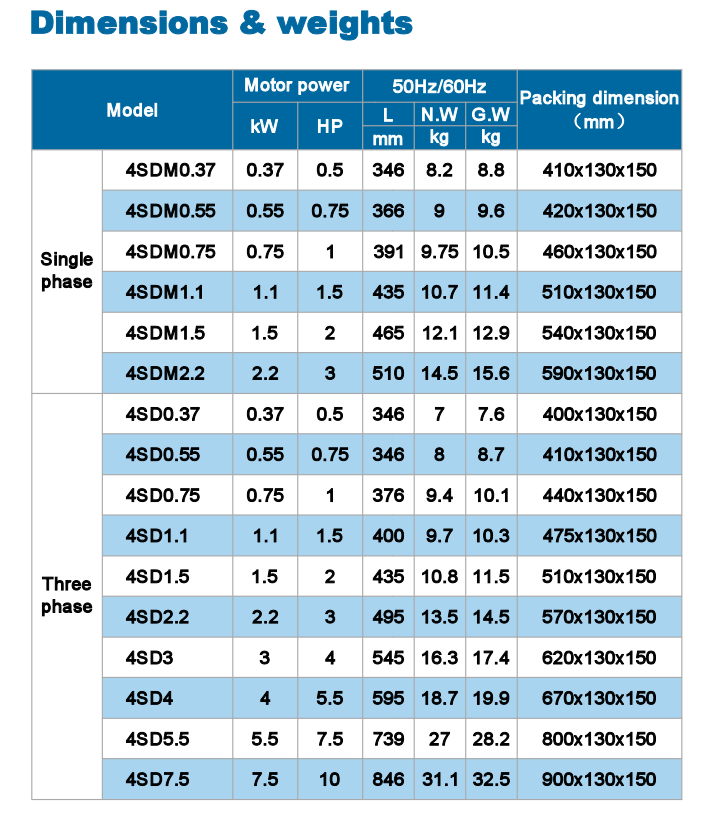

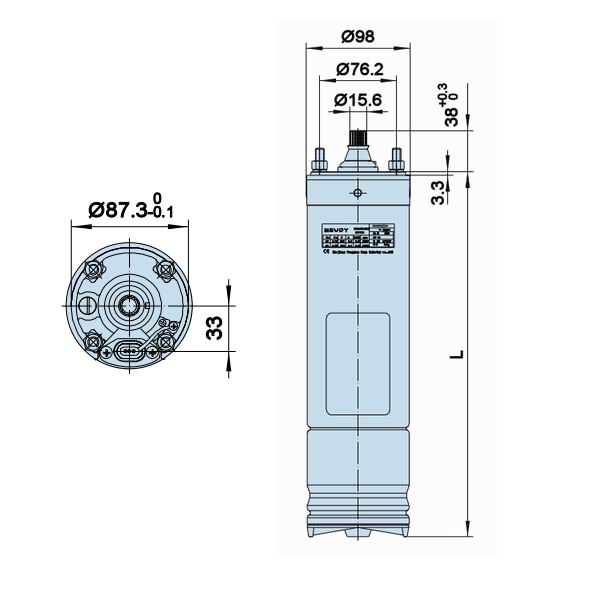

Packing Dimension



document dowload

Consumable Parts

4SD(M) SUBMERSIBLE MOTOR – TYPE C D
