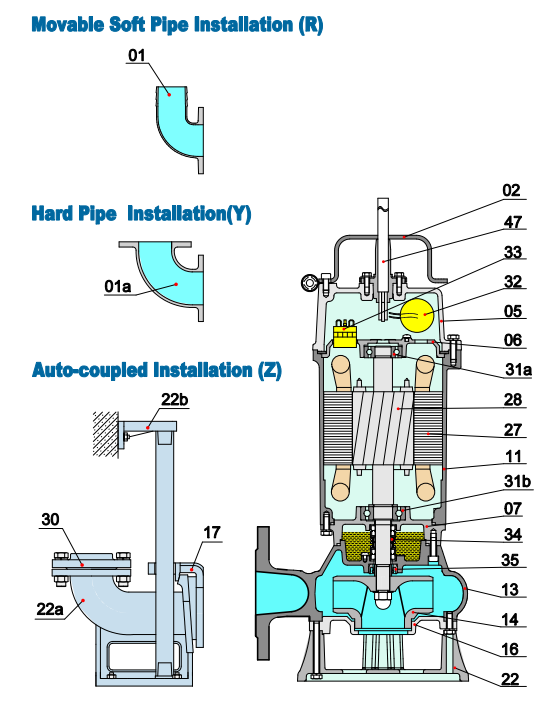

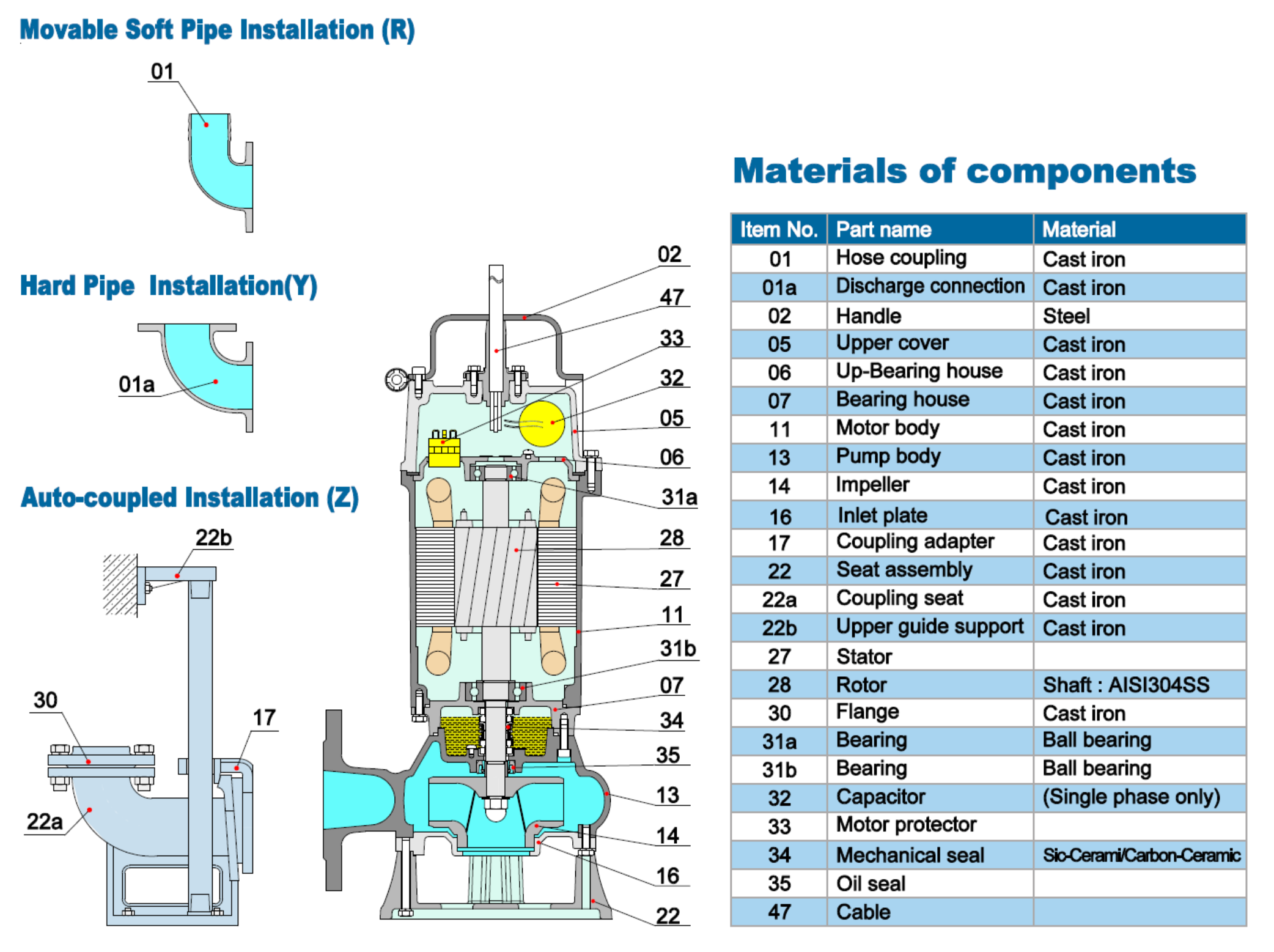

Structure and characteristics

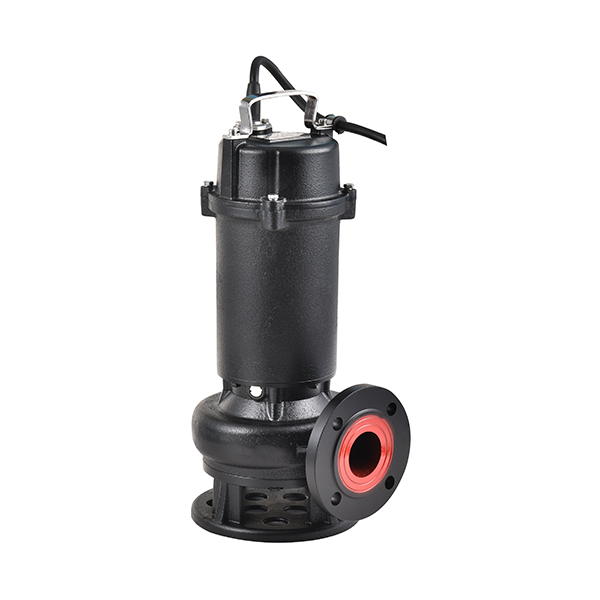

B pump incorporates a channel impeller developed exclusively for sewage pumps. The impeller has a wide channel extending from inlet to exit, which prevents internal clogging by solids sucked in the inlet.

Application

For waste water discharge of industry, shopping mall, hospital, hotel.

For domestic sewage and storm-water drainage of uptown, parking lot and municipal engineering.

For sewage discharge of sewage treatment plant and farm.

For pumping muddy water and lye of construction factory and mine.

For pumping clean water of agriculture and aquaculture.

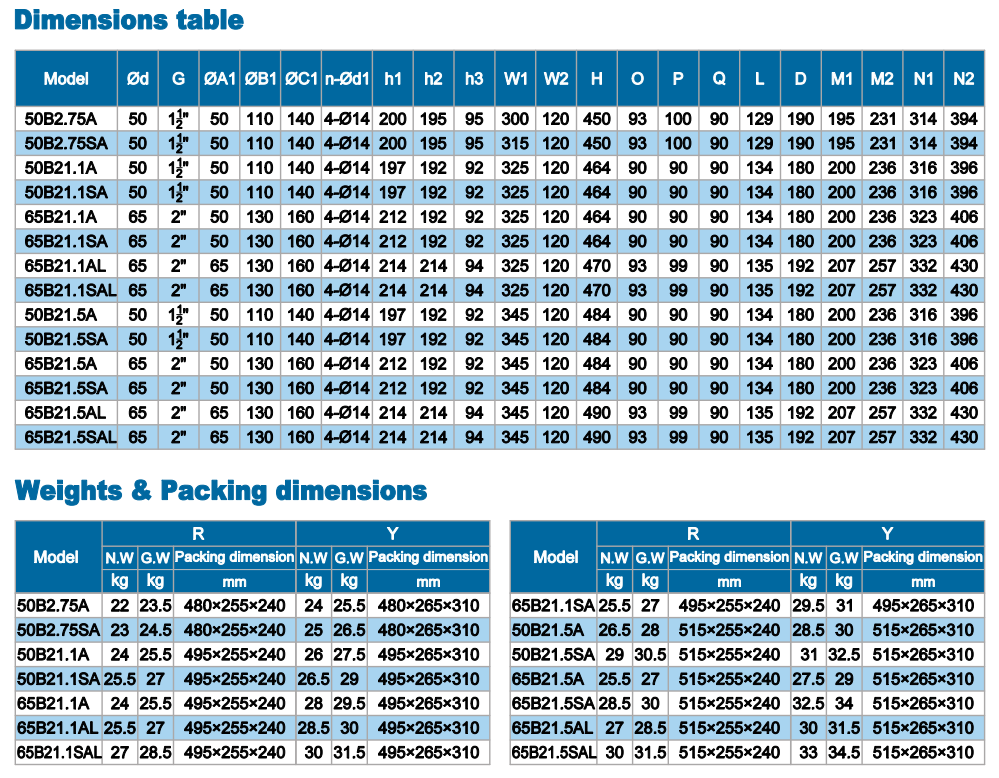

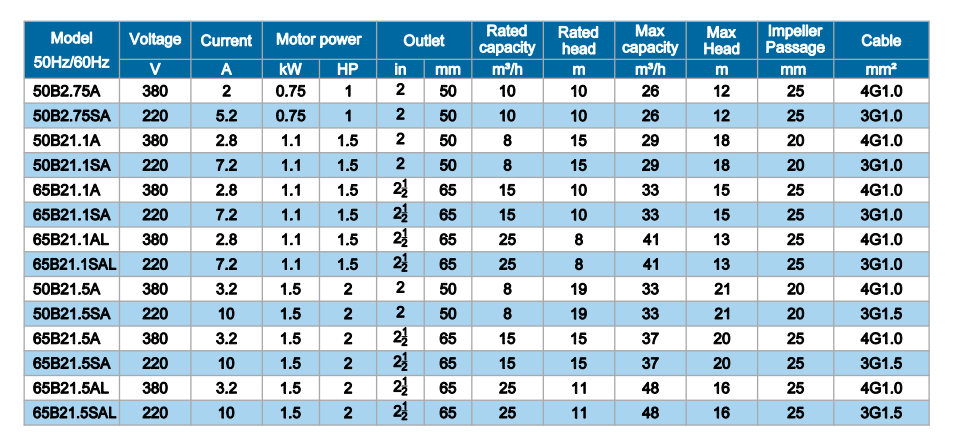

Specification

Insulation class: F

Protection class: IP68

Water temperature: up to 40℃

PH: 6 -10

Density of liquid: 1.3g/cm³

Power supply: three-phase 380V±10%, 50Hz

                        three-phase 380V±10%, 60Hz

                        single-phase 220V±10%, 50Hz

                        single-phase 220V±10%, 60Hz

Motor protection: built in

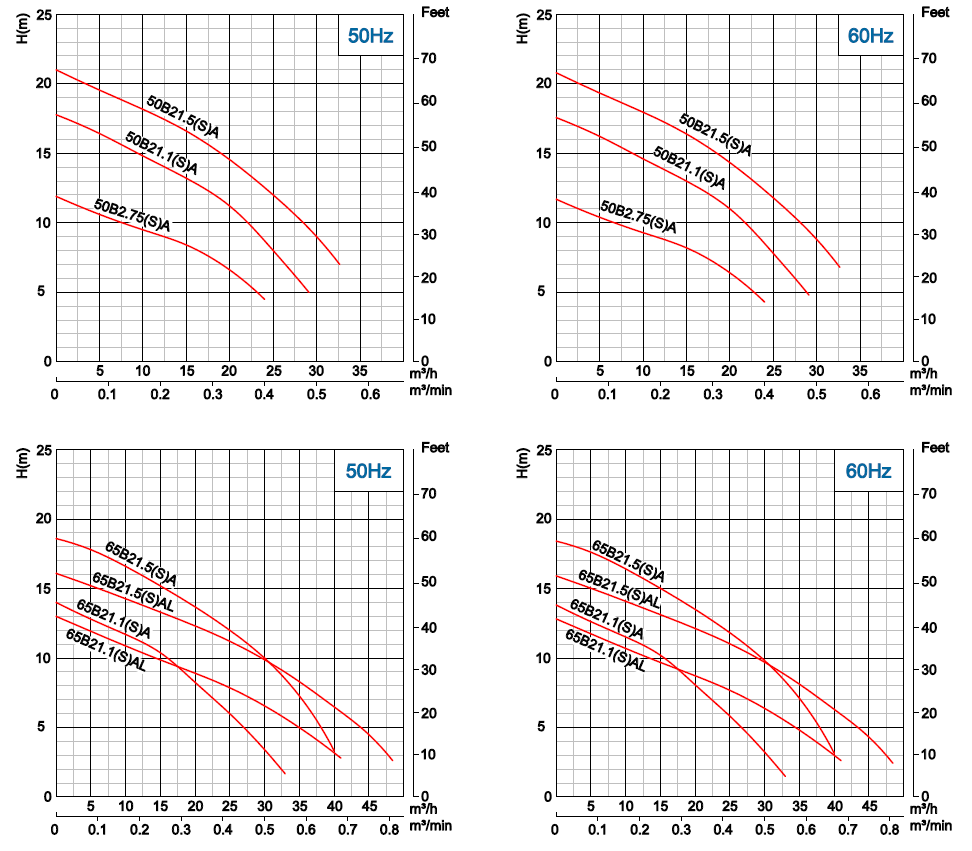

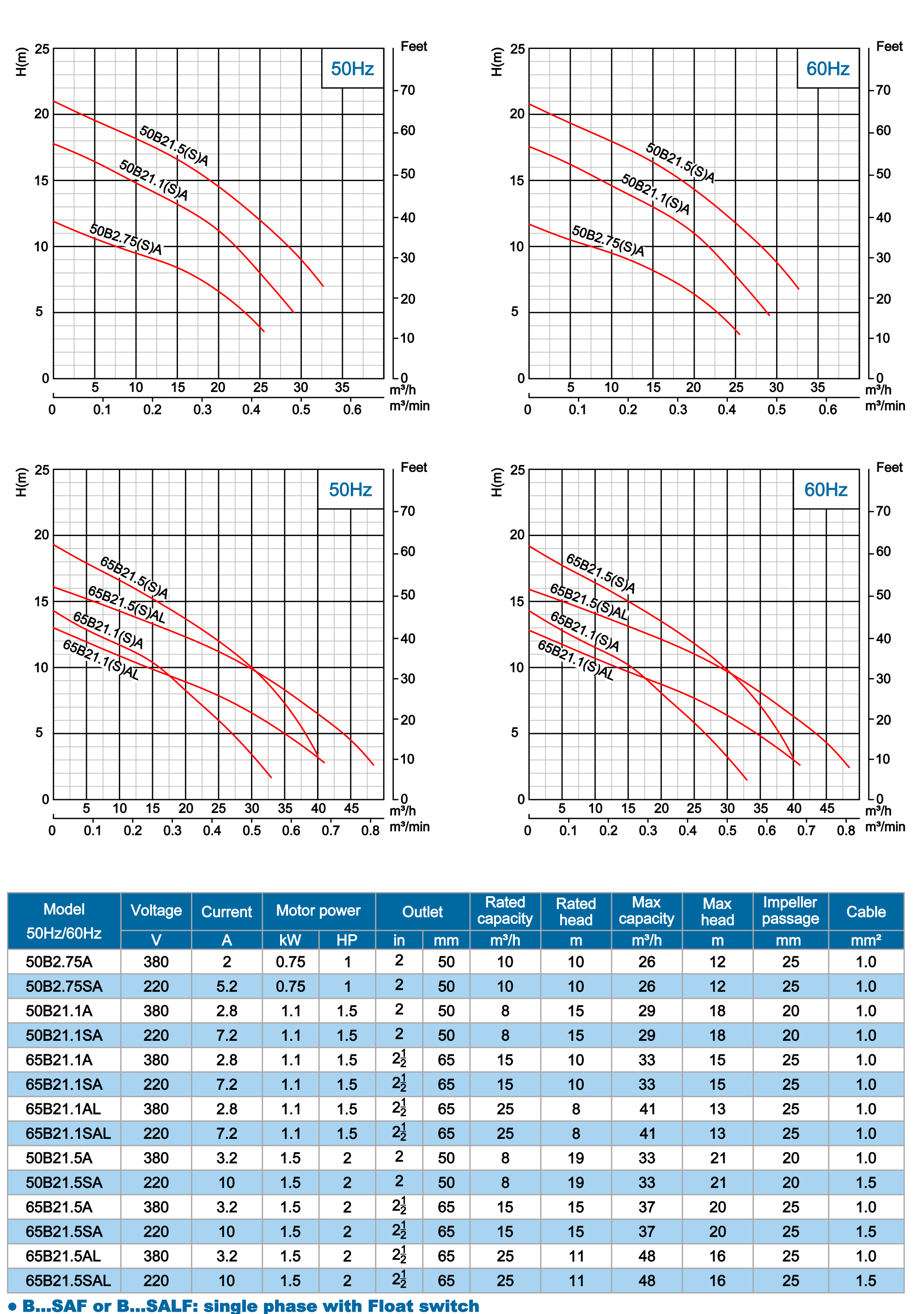

Capacity: up to 48m³/h

Head: up to 21m

Maximum immersion depth: 10m

Cable length: 8m
