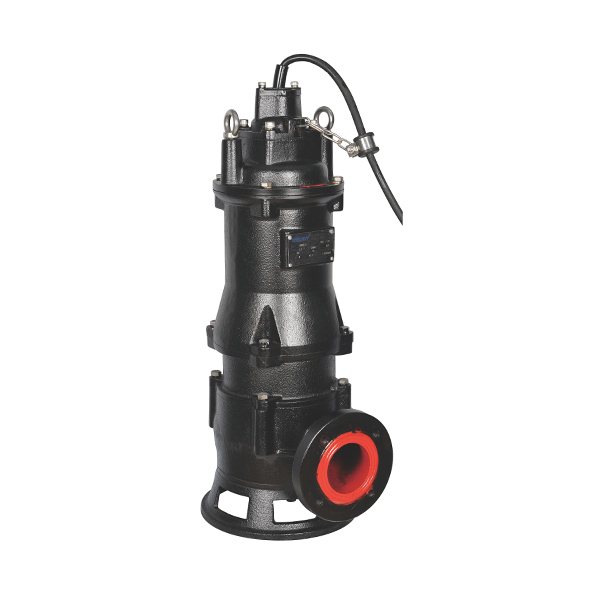

C SERIES SEWAGE PUMP 0.75~7.5kW 2P

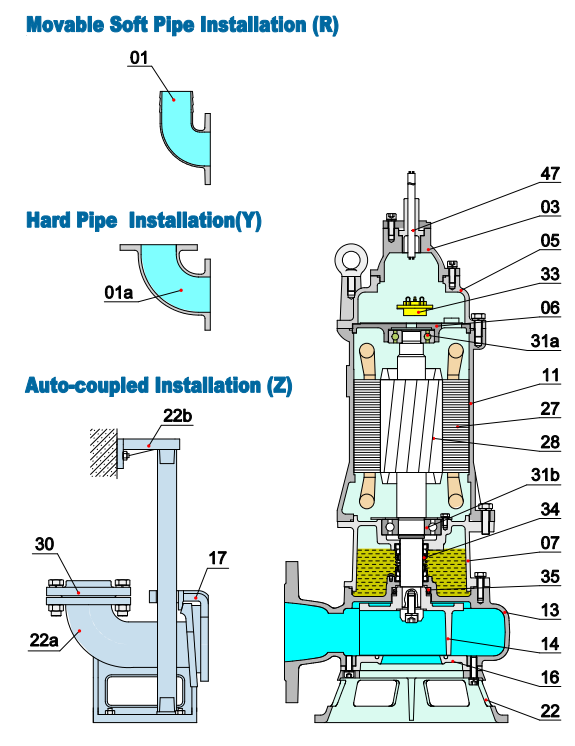

Structure and characteristics

A “cutter mechanism” is provided by the combined action of a carbide blade intergrated into a non-clog impeller and the sawshaped inner surface of a suction cover. This construction ensures that fibrous foreign matter is cut up, and sewage is transferred without clogging.

Application

The C series is especially useful for pumping waste water containing soft, easy broken fibers from slaughter house and blogas plants.

Specification

Insulation class: F

Protection class: IP68

Water temperature: up to 40℃

PH: 6 -10

Density of liquid: up to 1.3g/cm³

Power supply: three-phase 380V±10%, 50Hz

                          single-phase 230V±10%, 50Hz

Motor protection:  built in

Capacity: up to 135m³/h

Head: up to 30m

Cable length: 8m

Max water depth: 10m

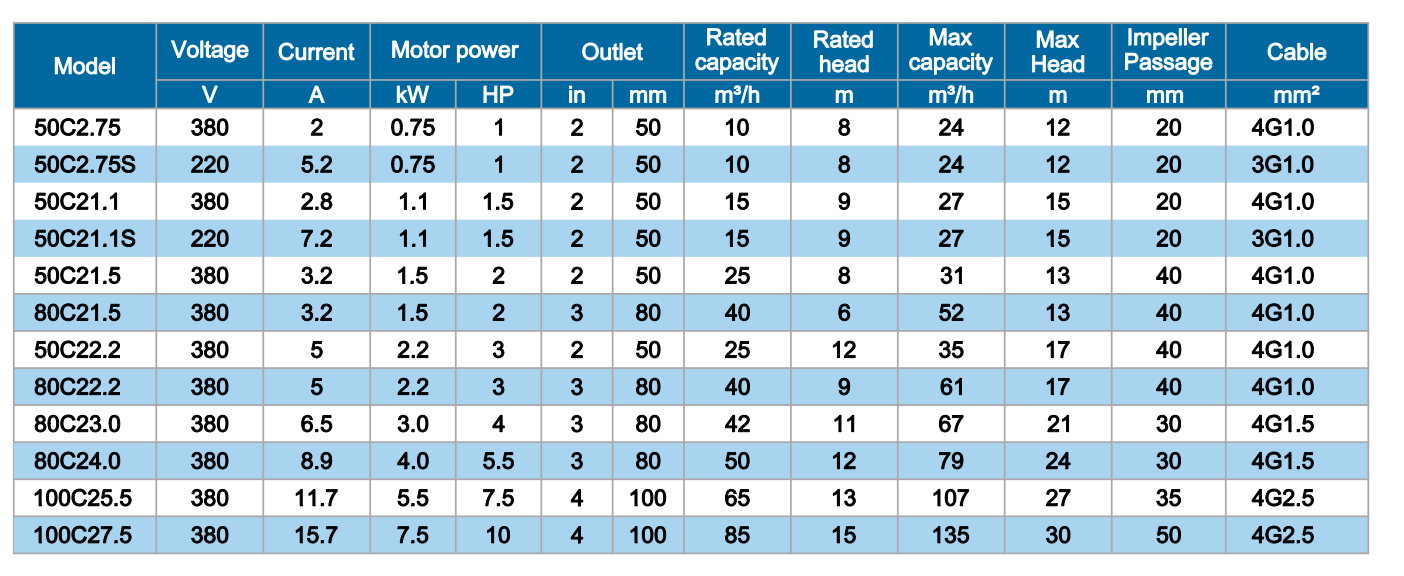

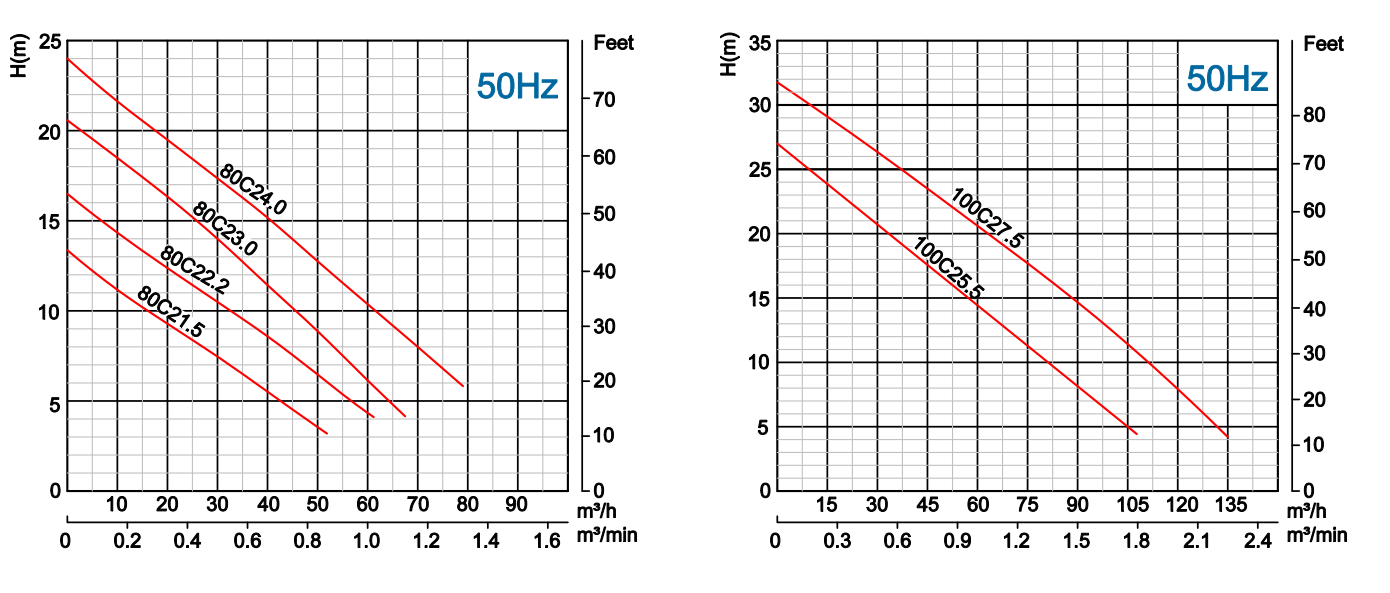

Series Product Specfications

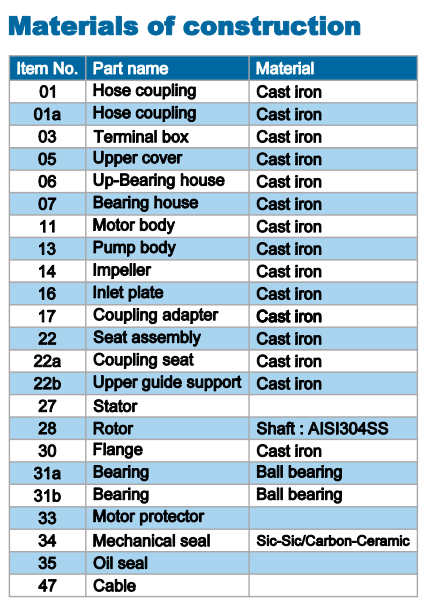

Material of Construction

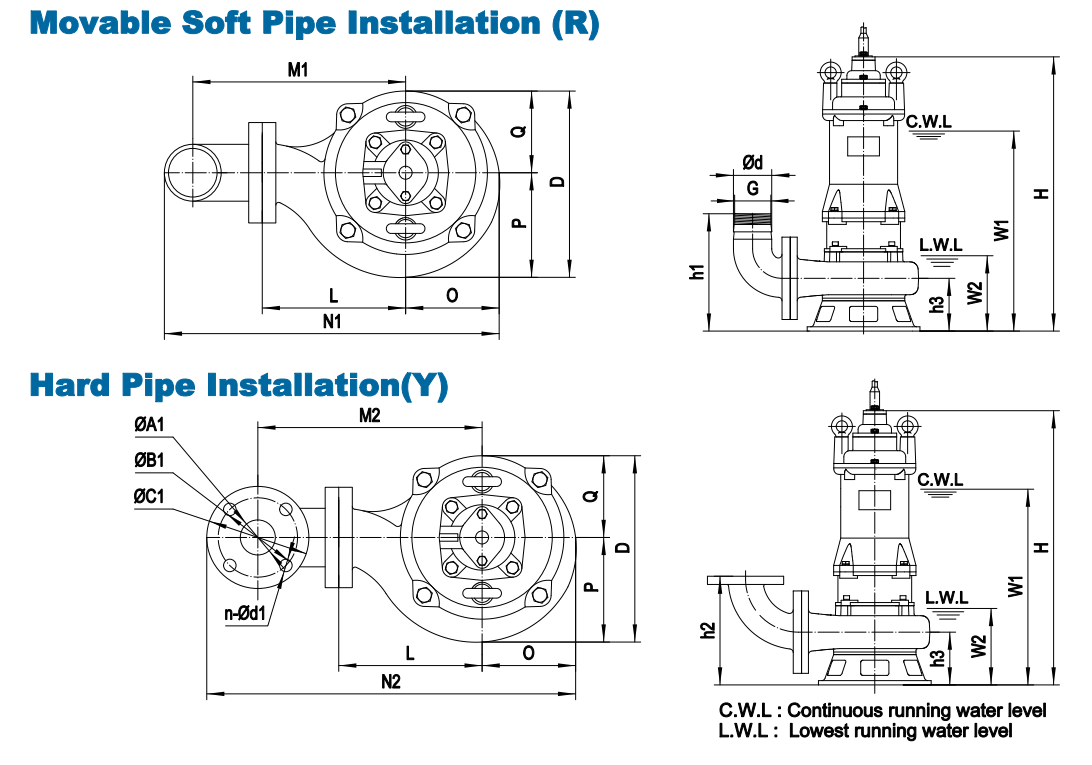

Specification

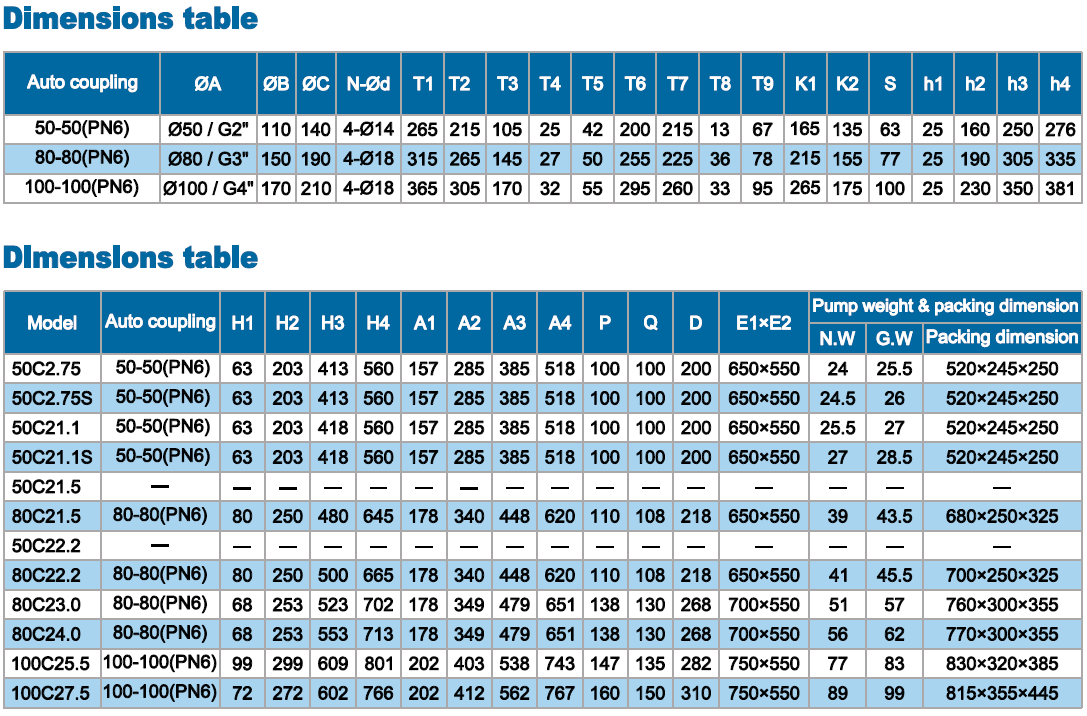

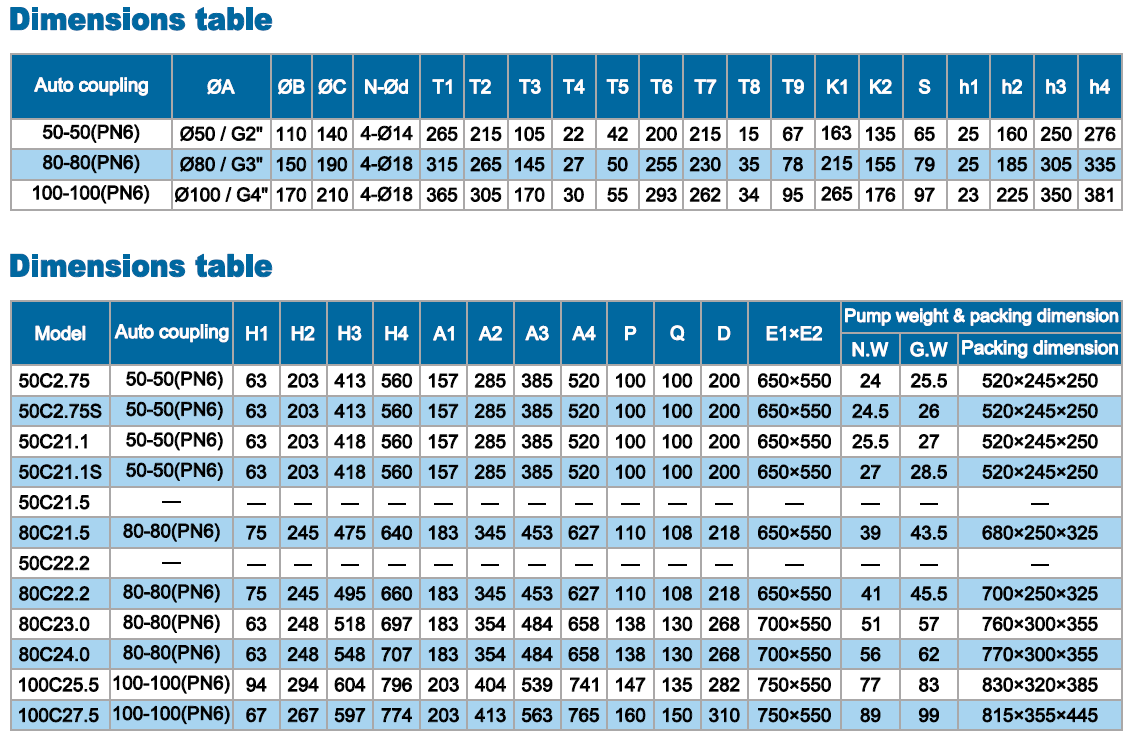

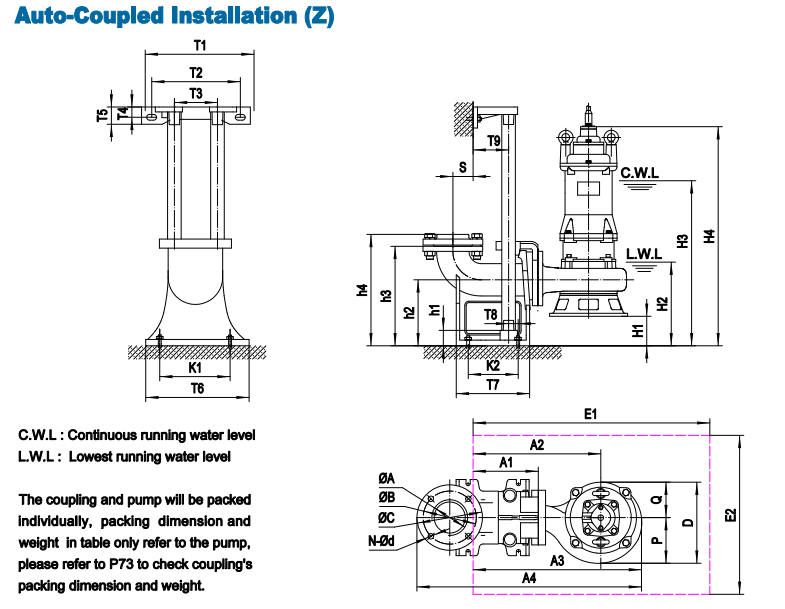

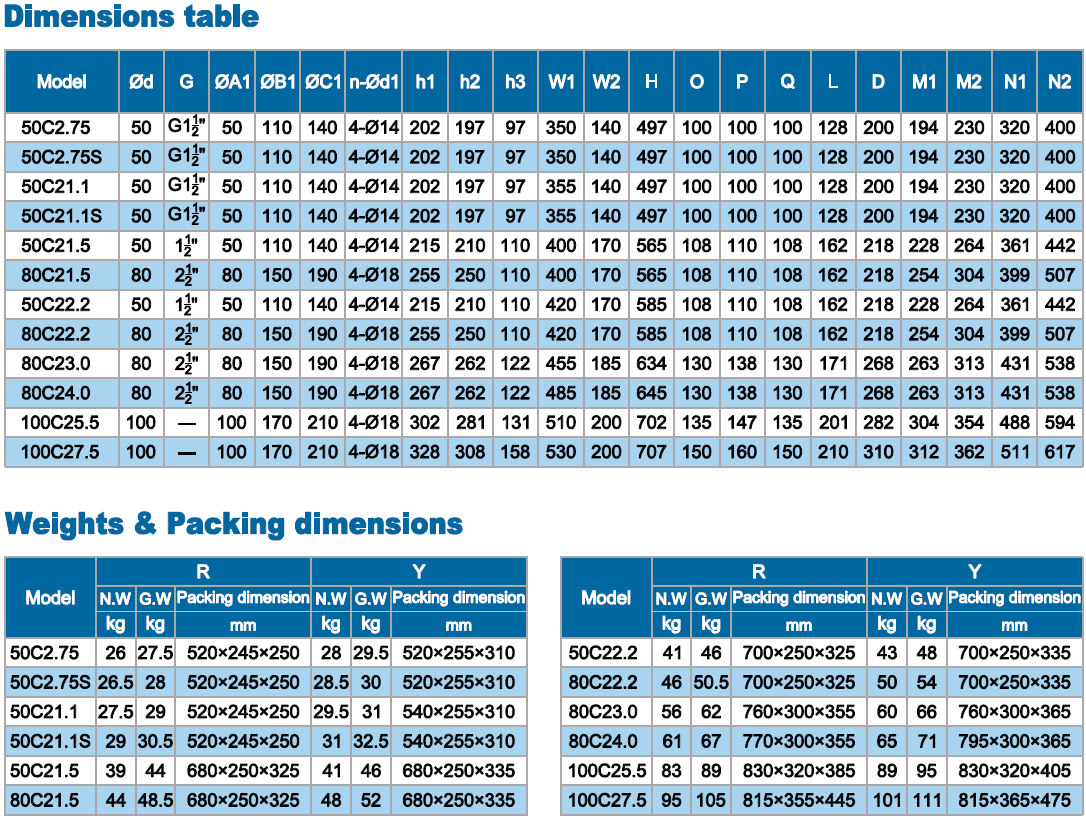

Packing Dimension





Consumable Parts

C SERIES SEWAGE PUMP 0.75~7.5kW 2P

C-pump cover

C SERIES SEWAGE PUMP 0.75~7.5kW 2P

C-pump body

C SERIES SEWAGE PUMP 0.75~7.5kW 2P

C-impeller
