Structure and characteristics

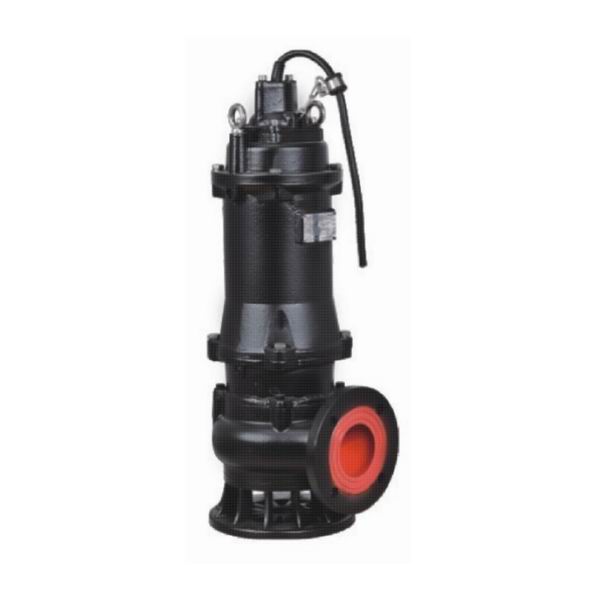

The B series high-temperature submersible electric pump can handle liquids up to 80 degrees Celsius.

The insulation level, rubber material, bearings, and lubrication of the motor are upgraded on the basis of the standard type (handling liquids up to 40 degrees Celsius).

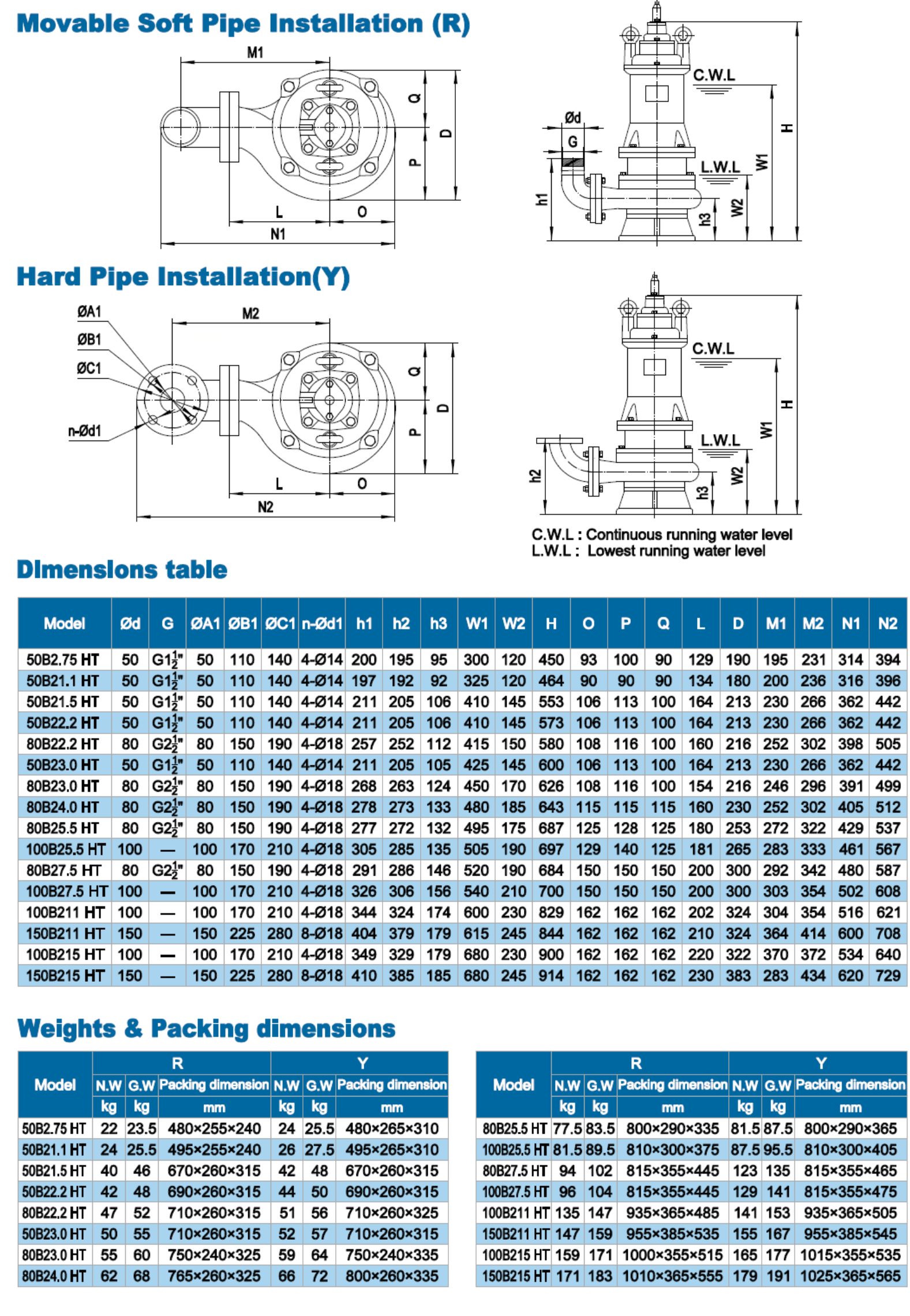

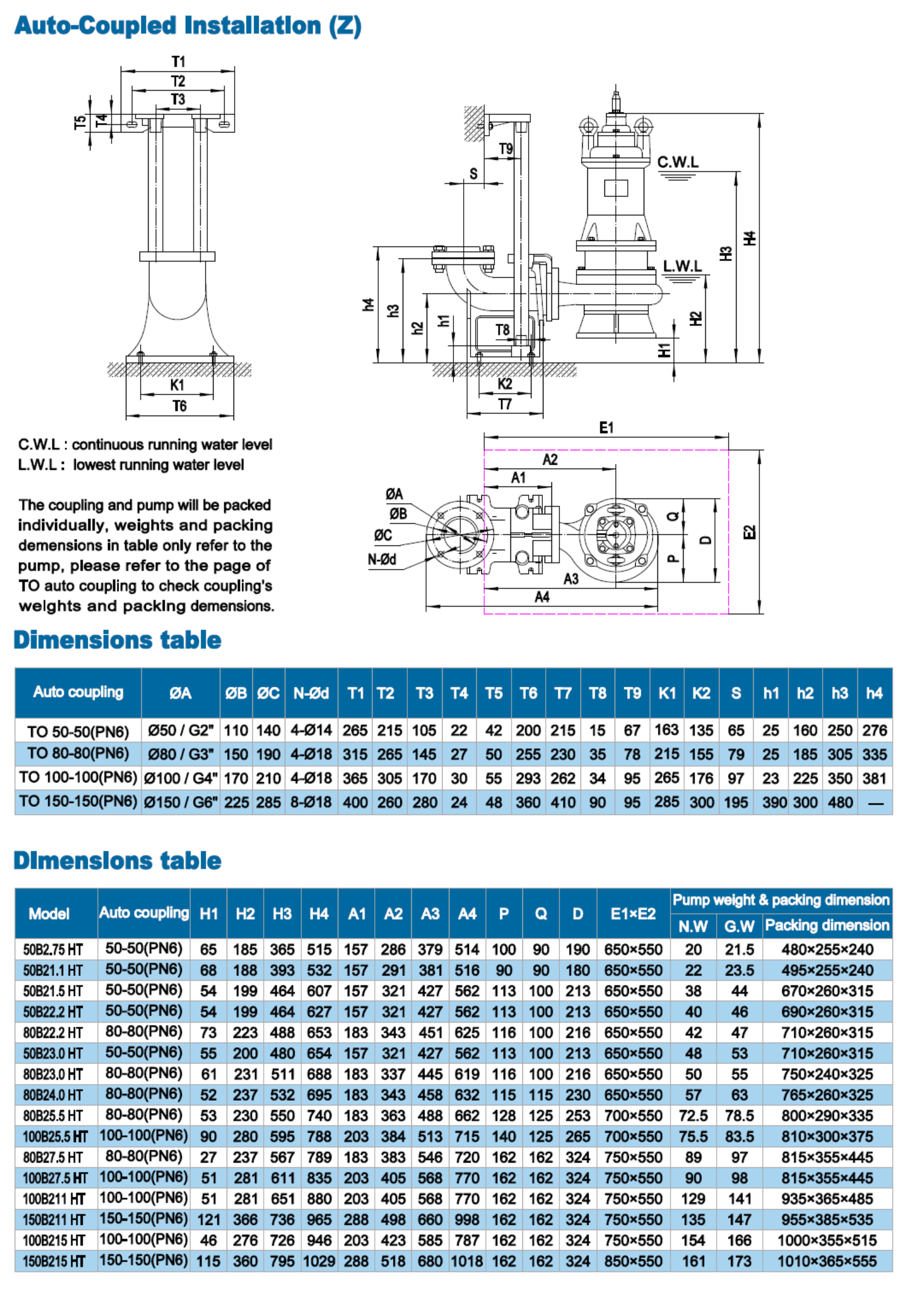

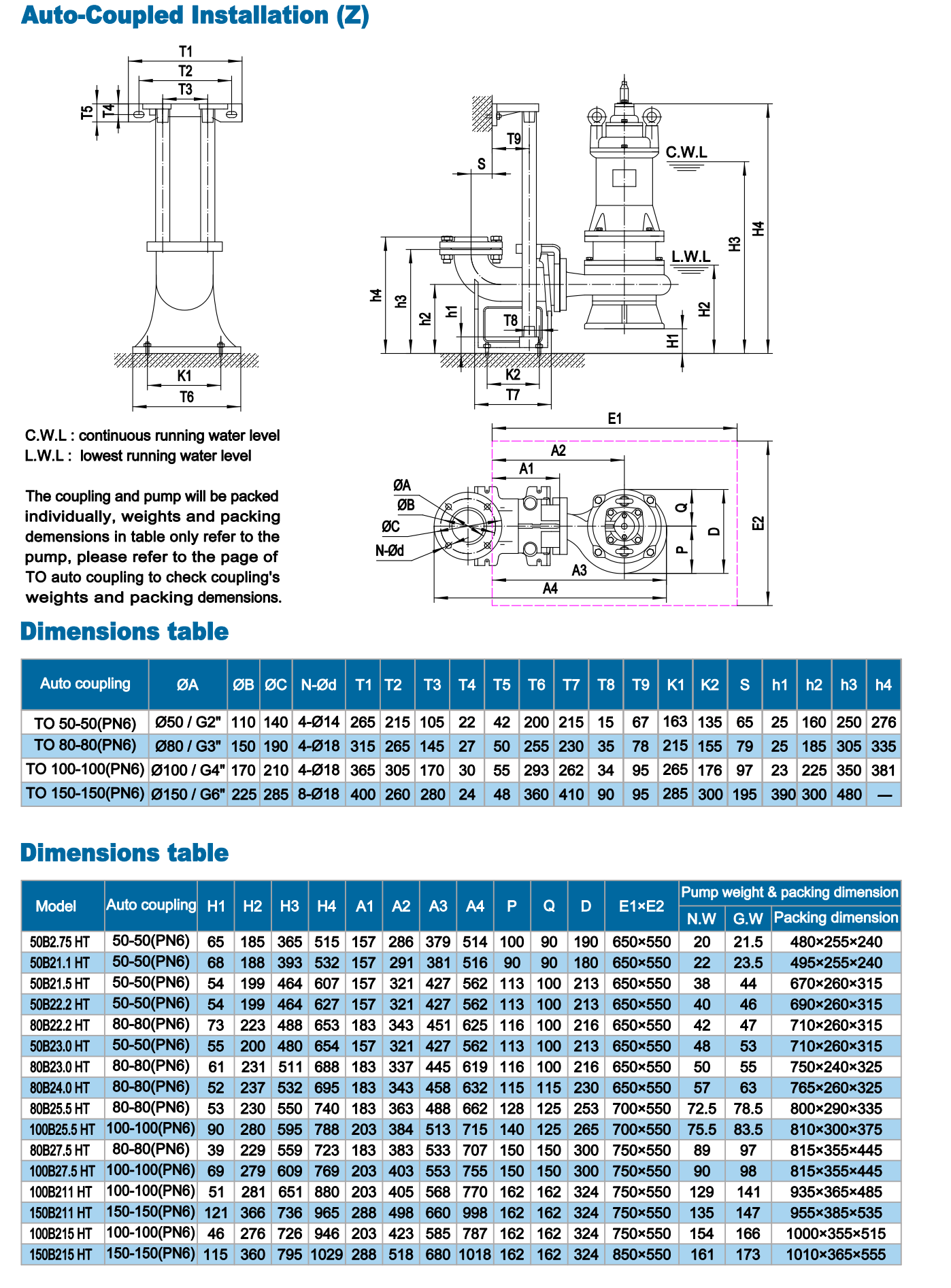

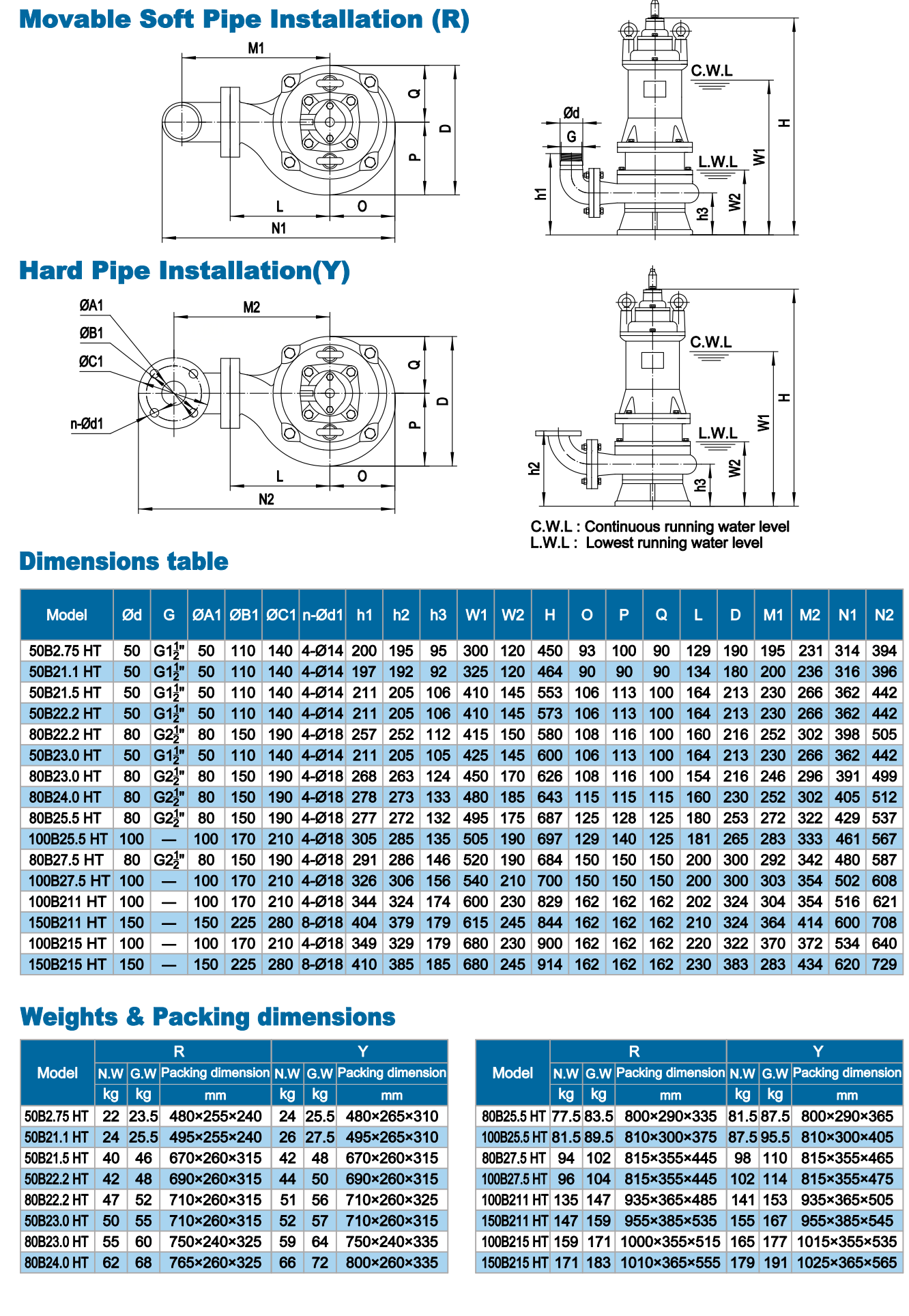

The pumps are suitable for movable, fixed and auto coupling installation.

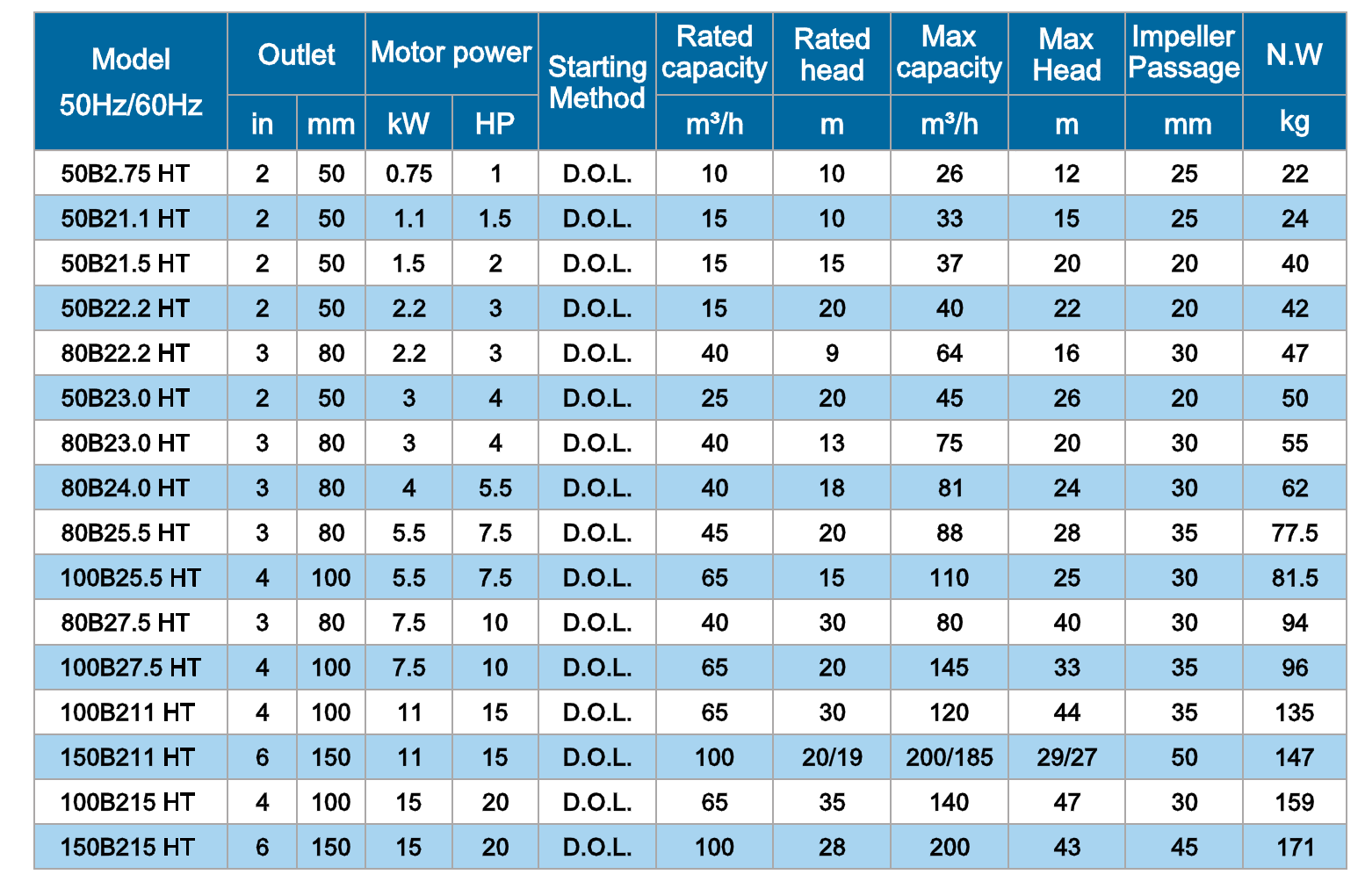

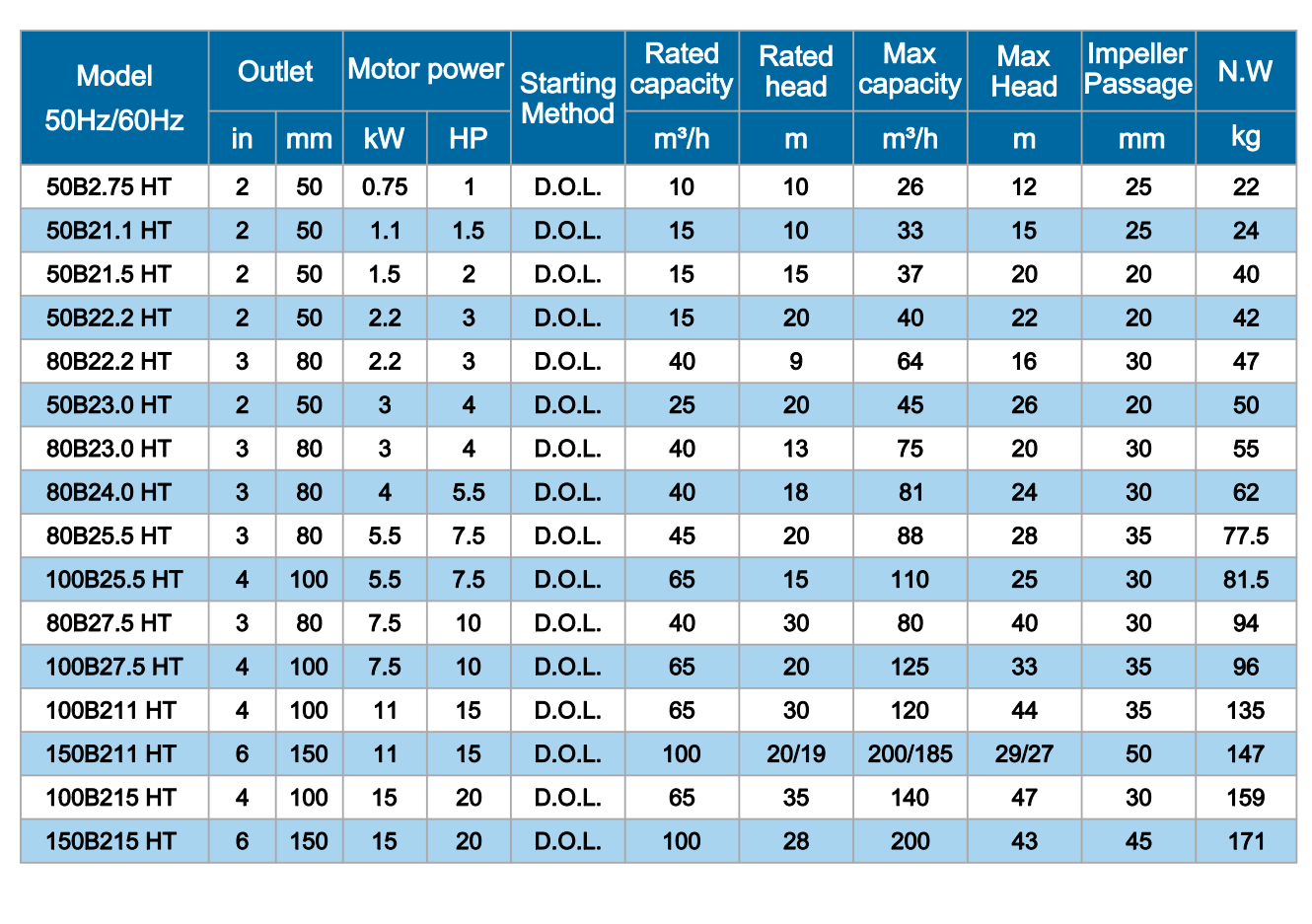

Specification

   Discharge Bore : 50-150mm

   Insulation class : H

   Protection class : IP68

   Water temperature : up to 80℃

   PH : 6 to 10

   Density of liquid : 1.05g/cm³

   Power supply :

      three  phase 380V ±10%, 50Hz

      three  phase 380V ±10%, 60Hz

   Motor protection :  not have

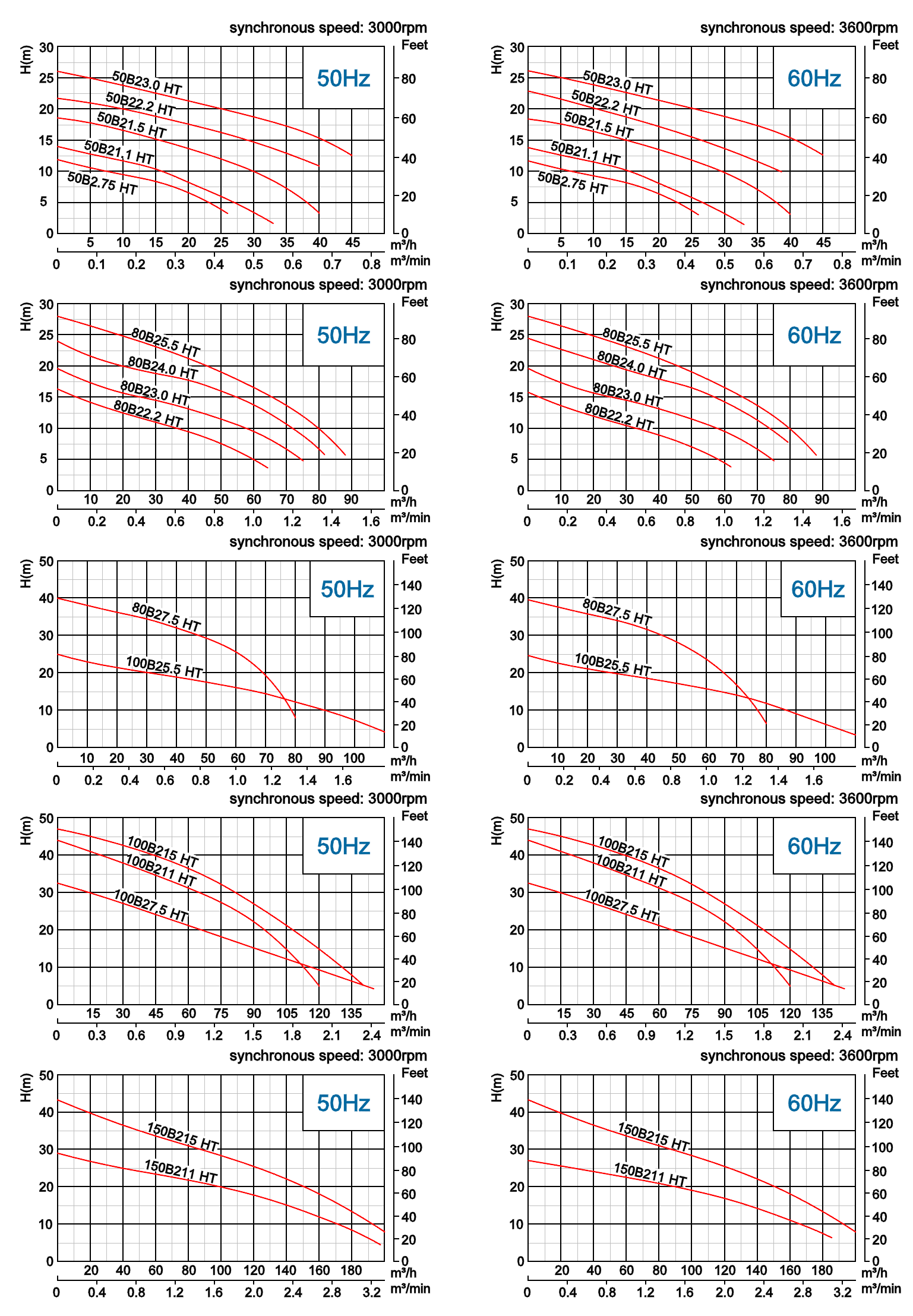

   Capacity : up to 200m³/h

   Head : up to 47m

   Maximum immersion depth : 10m

   Cable Length : 8m

   Cabtyre Cable : Chloprene Rubber

   Mechanical seal, O-ring : FPM(FKM)

   Lubricant : Turbine Oil, ISO VG46

   Bearing : Grease for High Temperature Use
