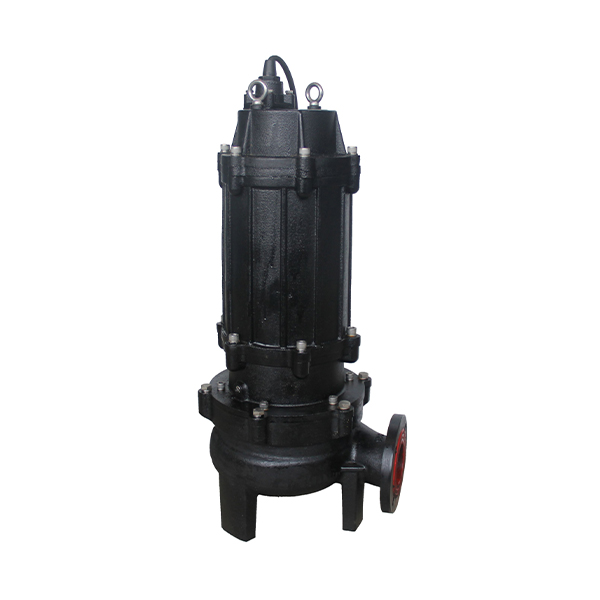

U SERIES SEWAGE PUMP 5.5-11kW 4P

Structure and characteristics

U pump is a multi-purpose pump with a vortex impeller. The impeller is mainly used in volute pumps. Vortex impellers pump water by the eddy flow caused by interaction with the casing, which prevents internal clogging by solids and fibrous matter.

Application

The U series is especially useful for pumping waste water containing large-particle matters at construction or mining site.

Specification

Insulation class: F

Protection class: IP68

Water temperature: up to 40

PH: 6-10

Density of liquid: up to 1.3g/cm³

Power supply: three phase 380V±10%, 50Hz

                        three phase 380V±10%, 60Hz

Motor protection: 5.5-7.5kW built in

Capacity: up to 190m³/h

Head: up to 18m

Max water depth: 20m

Cable Length: 8m

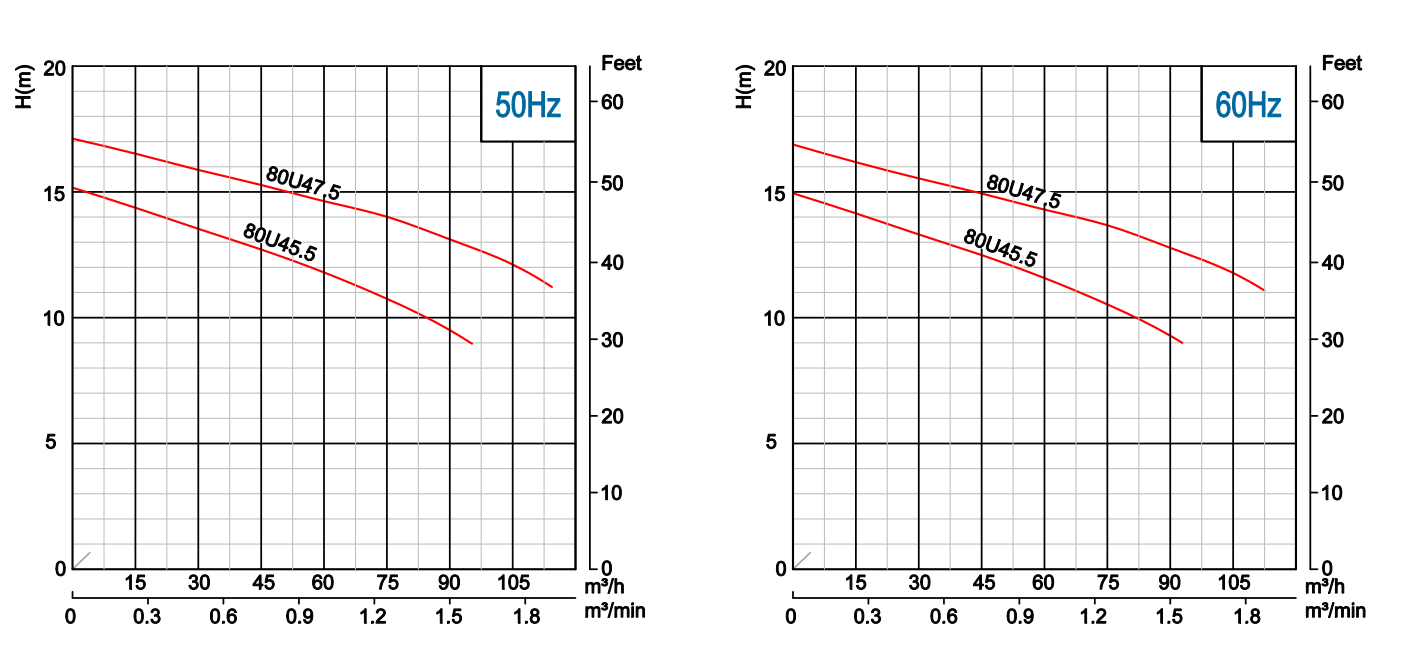

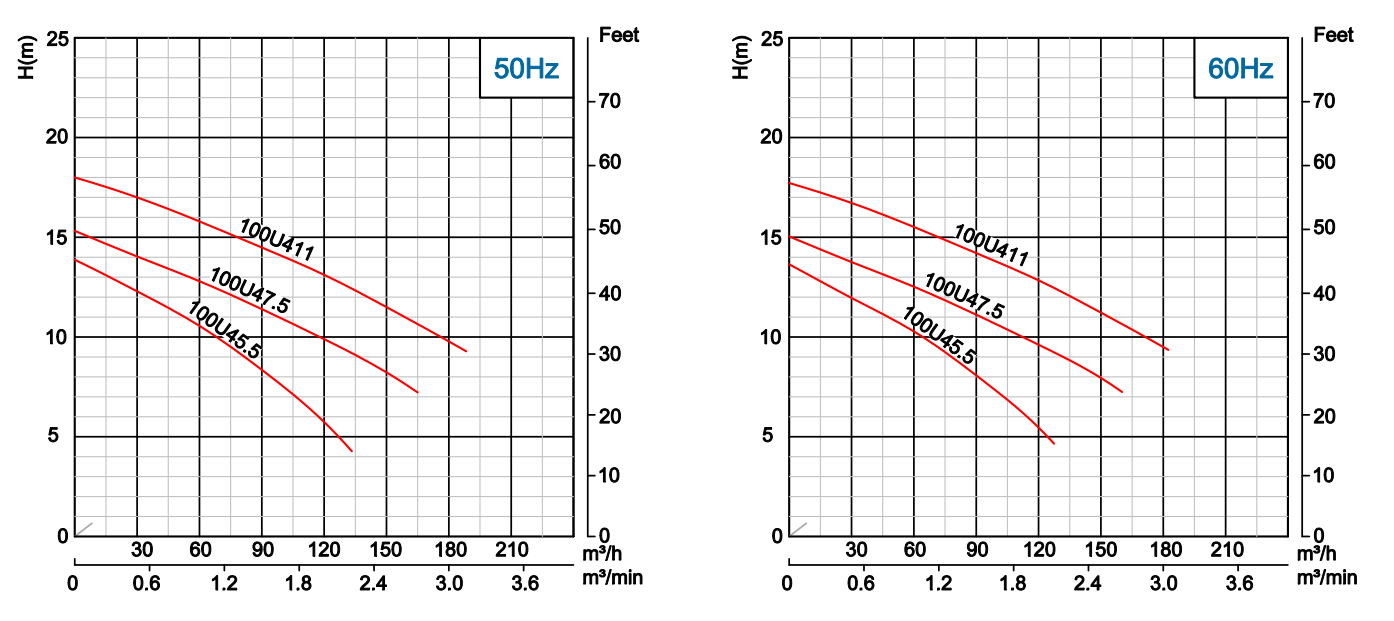

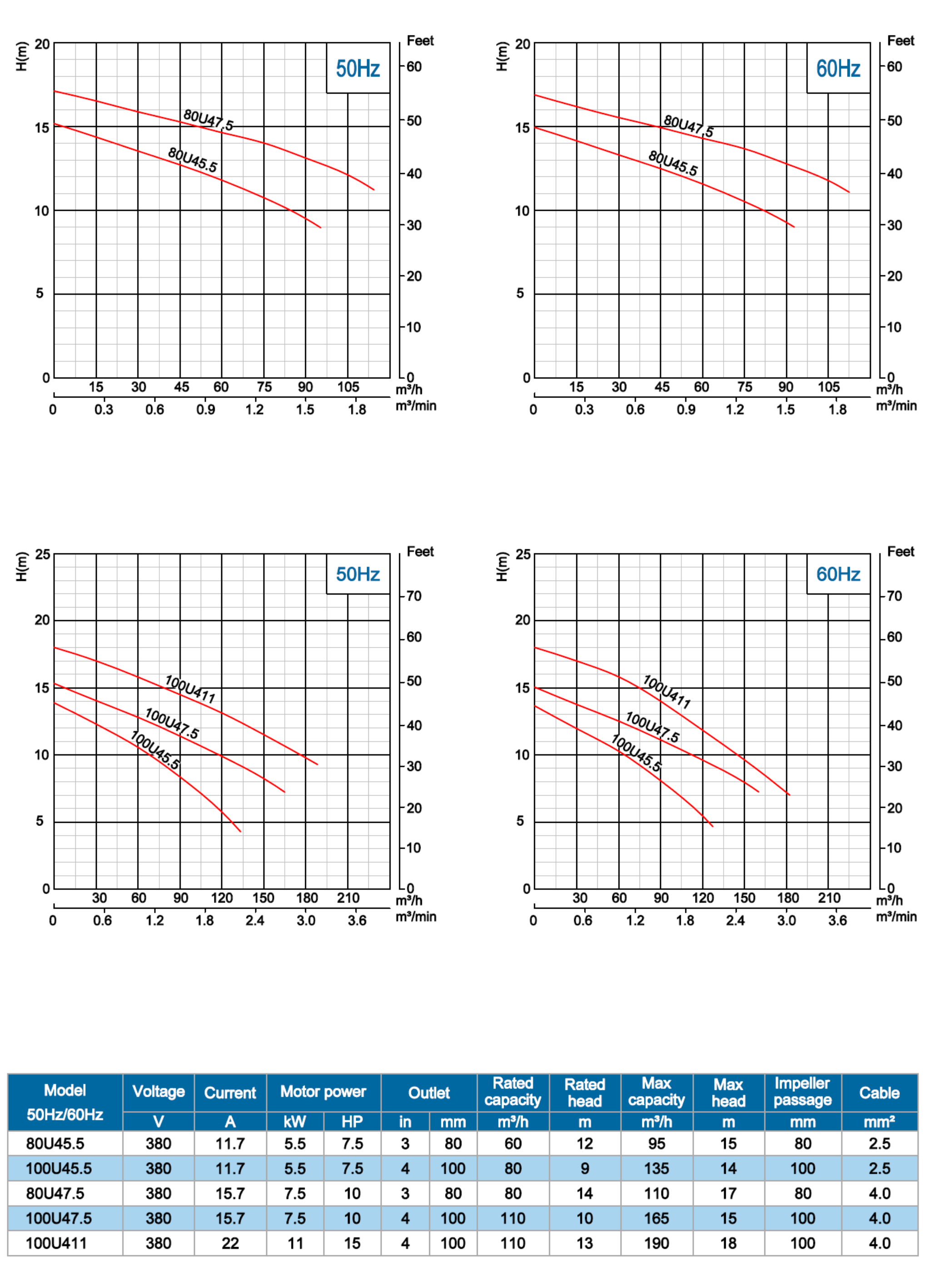

Series Product Specfications

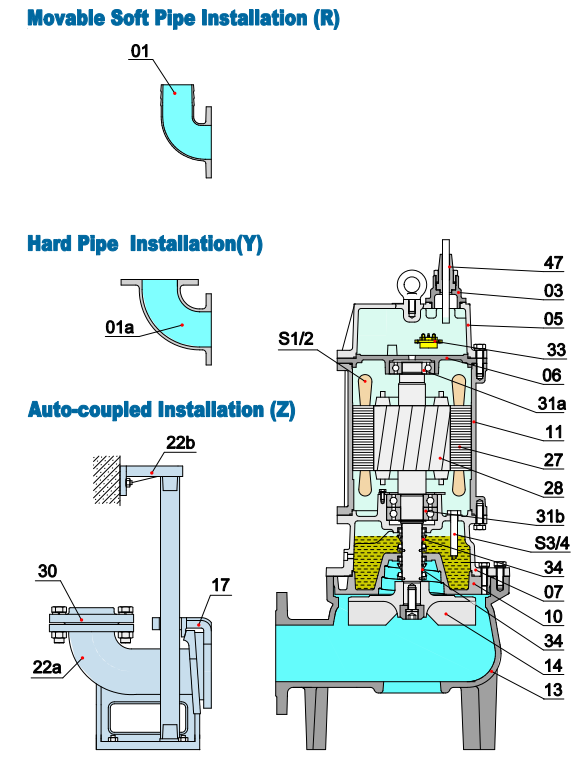

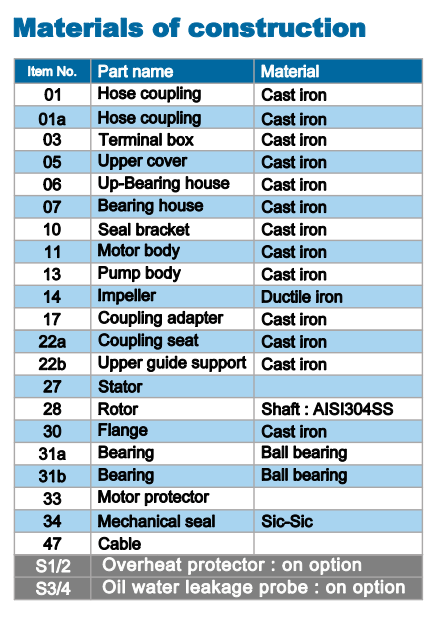

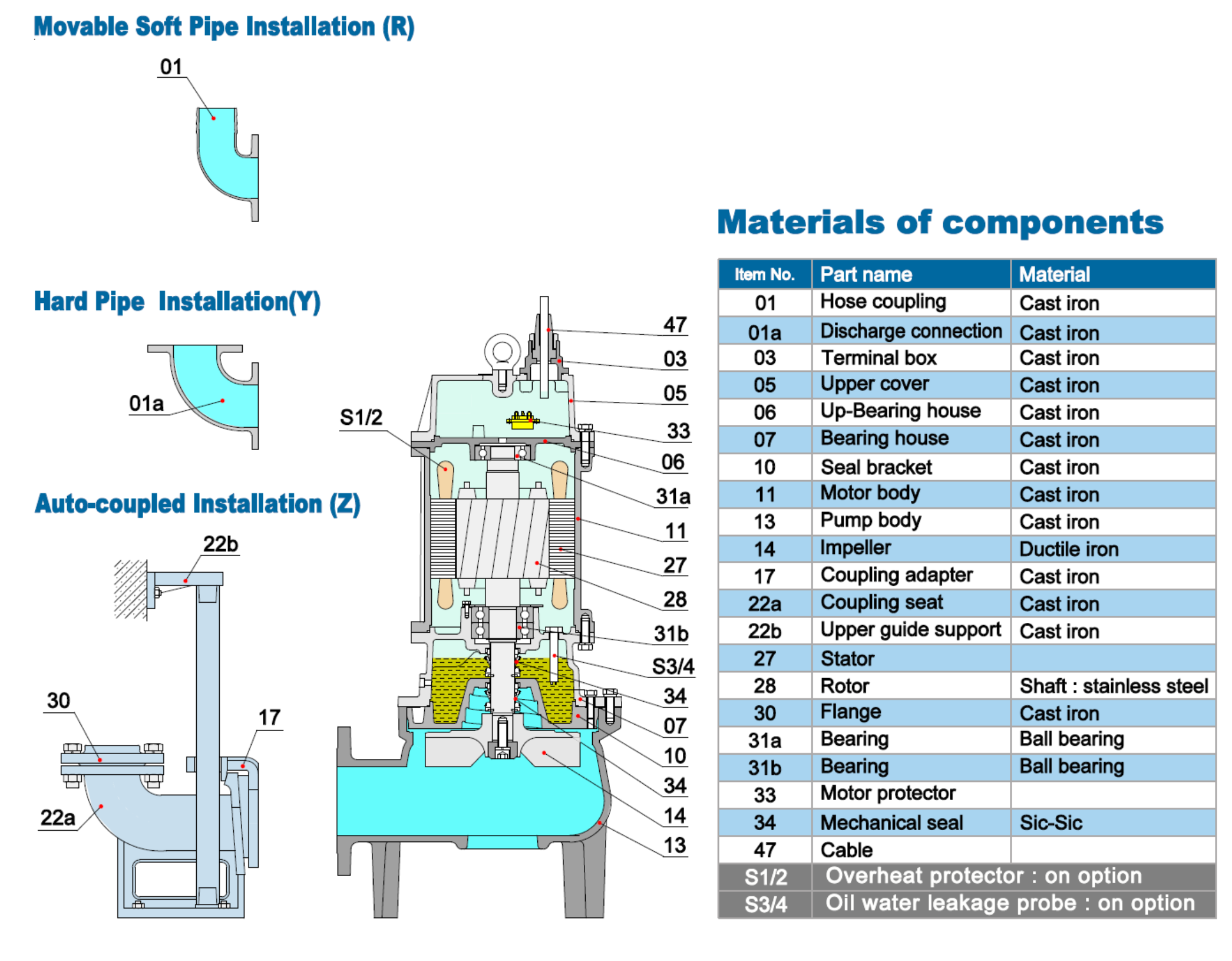

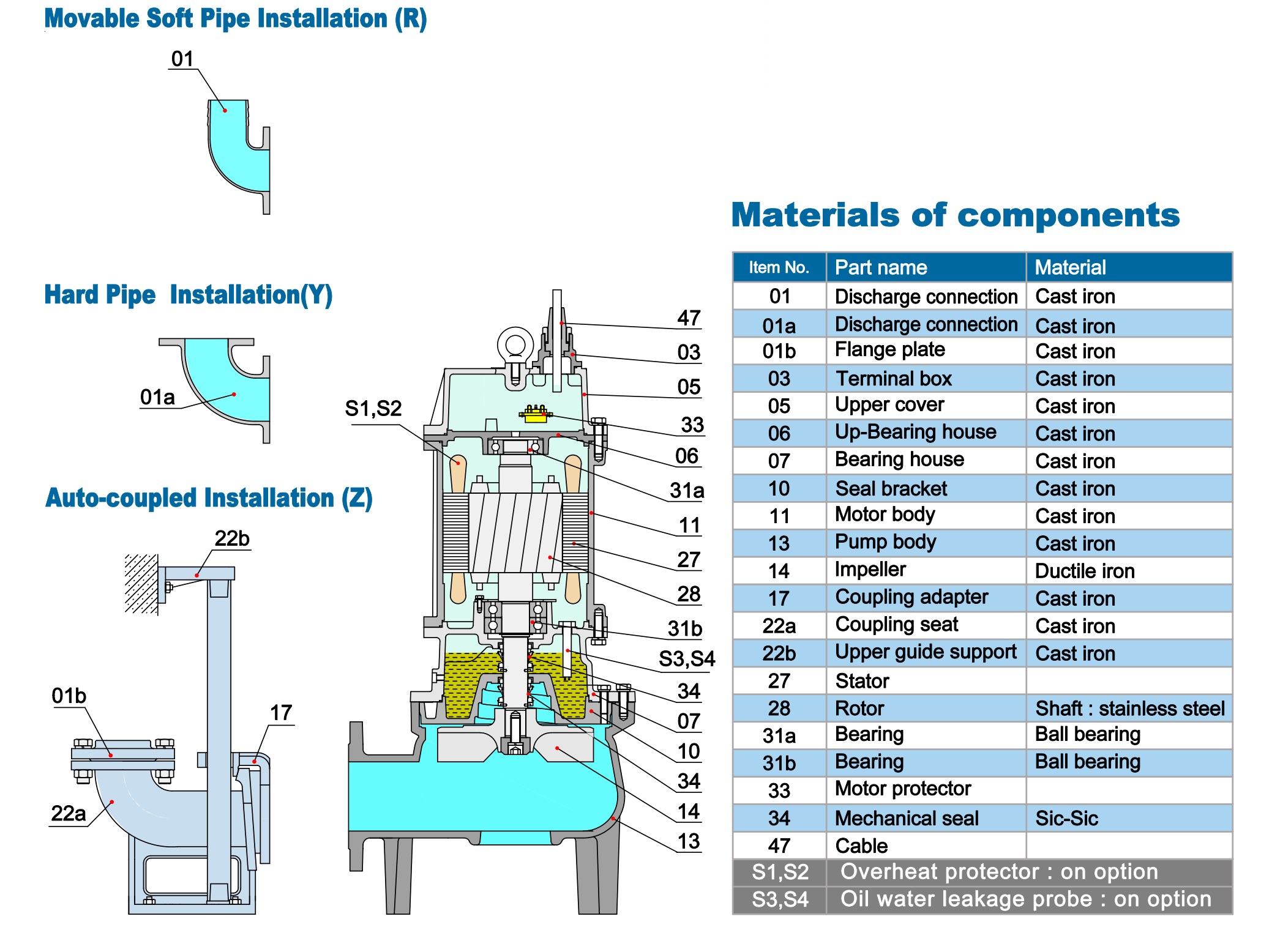

Material of Construction

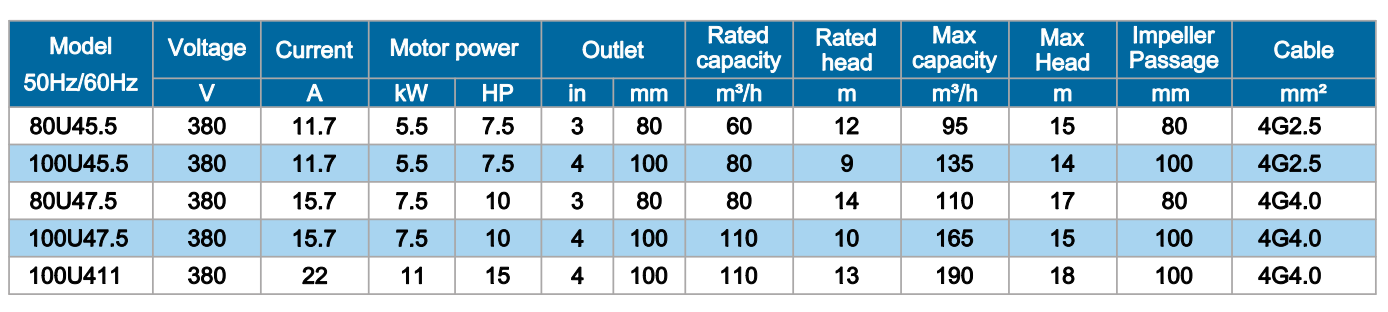

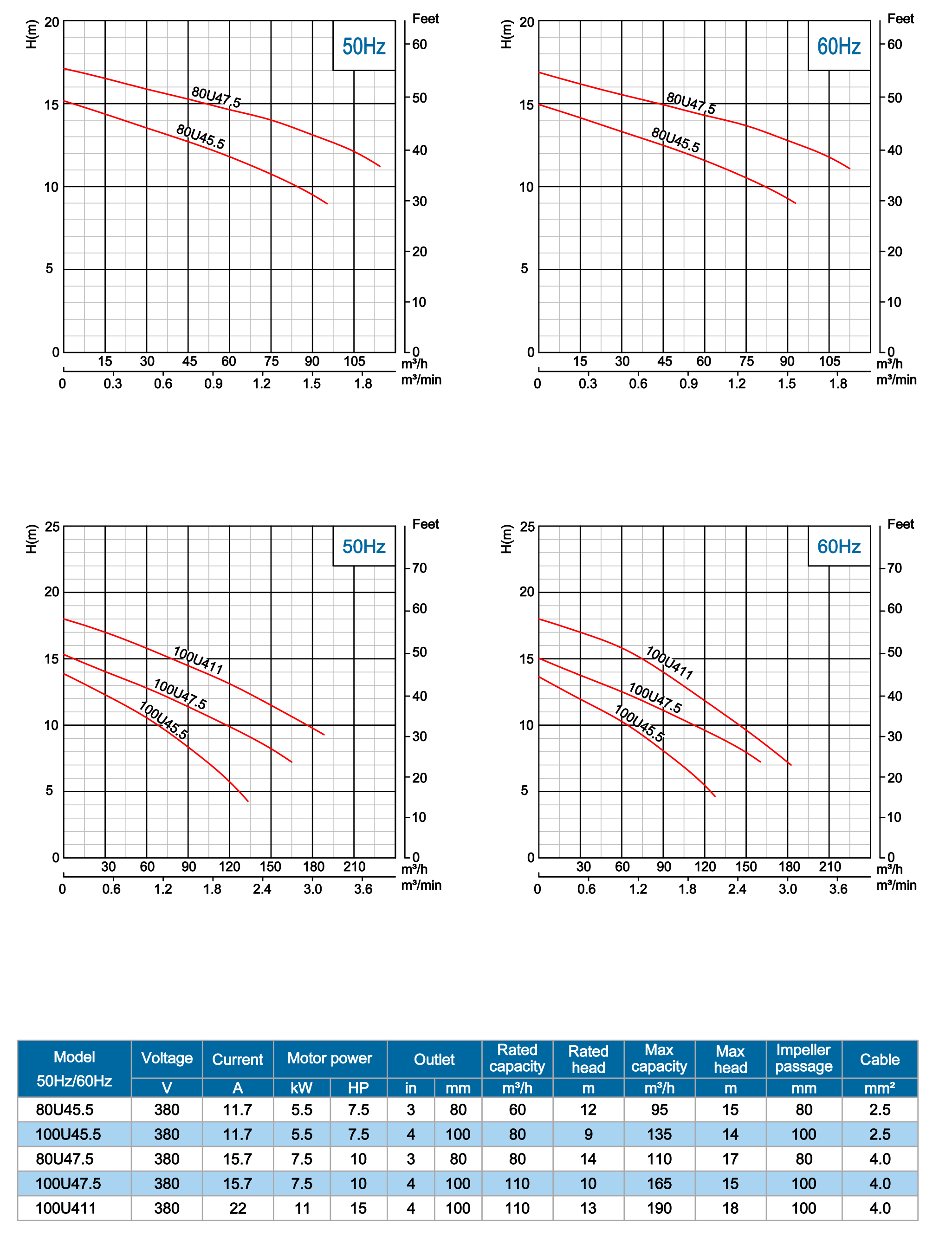

Specification

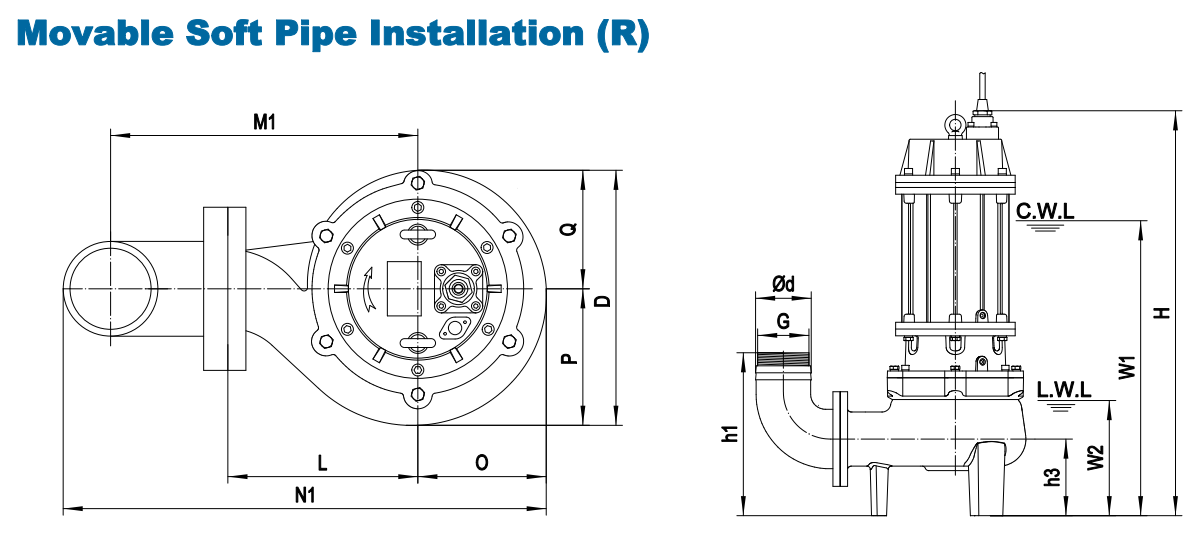

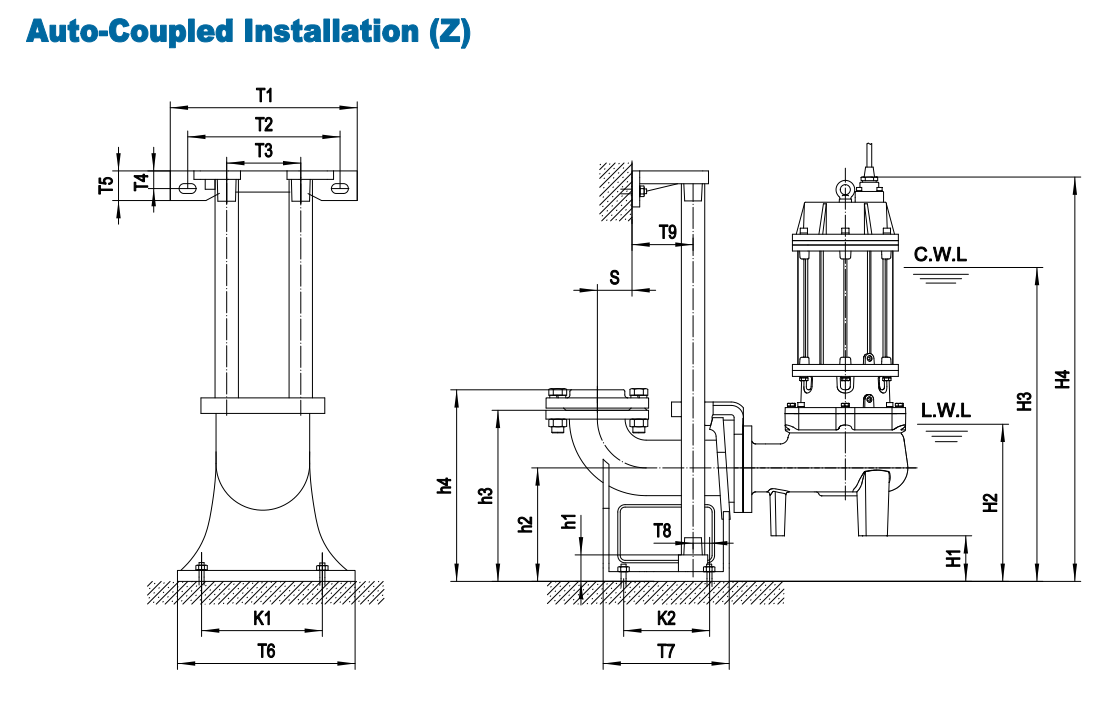

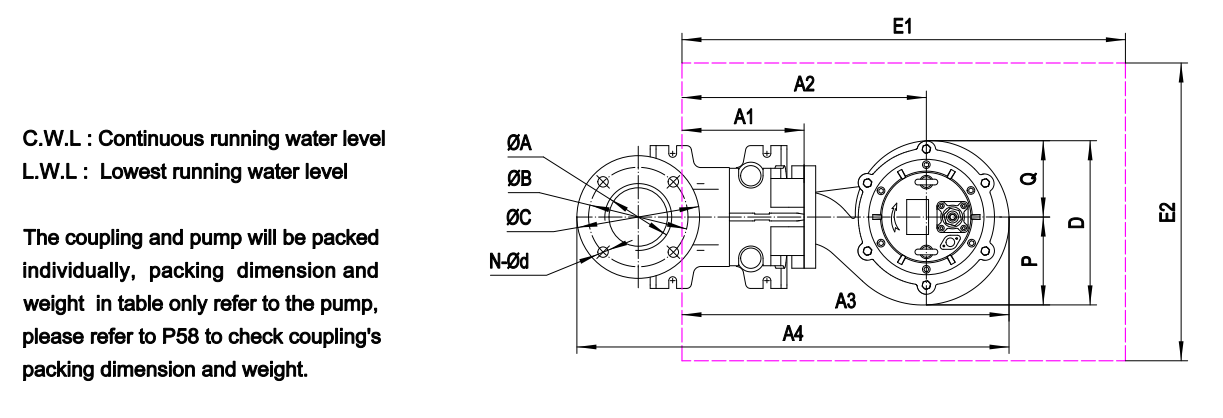

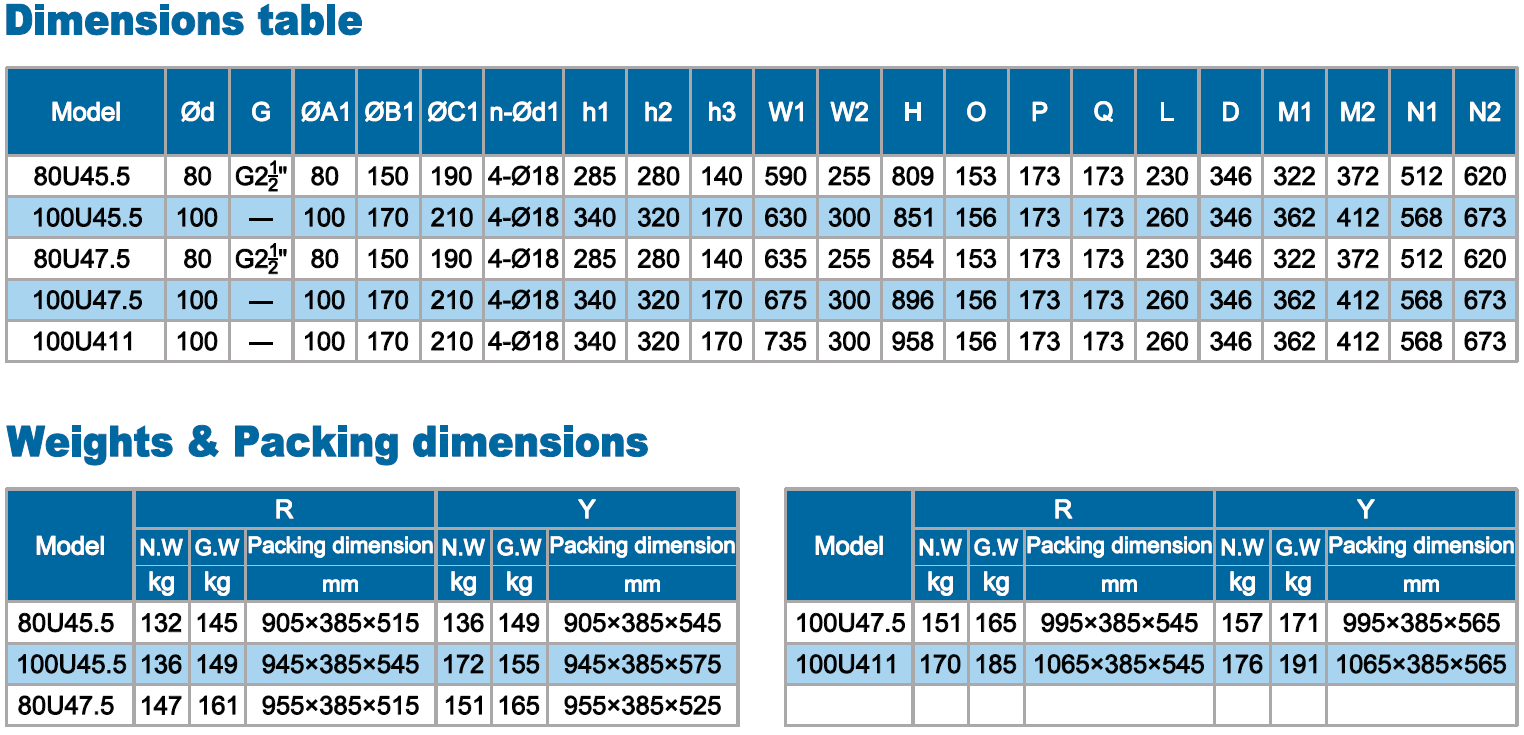

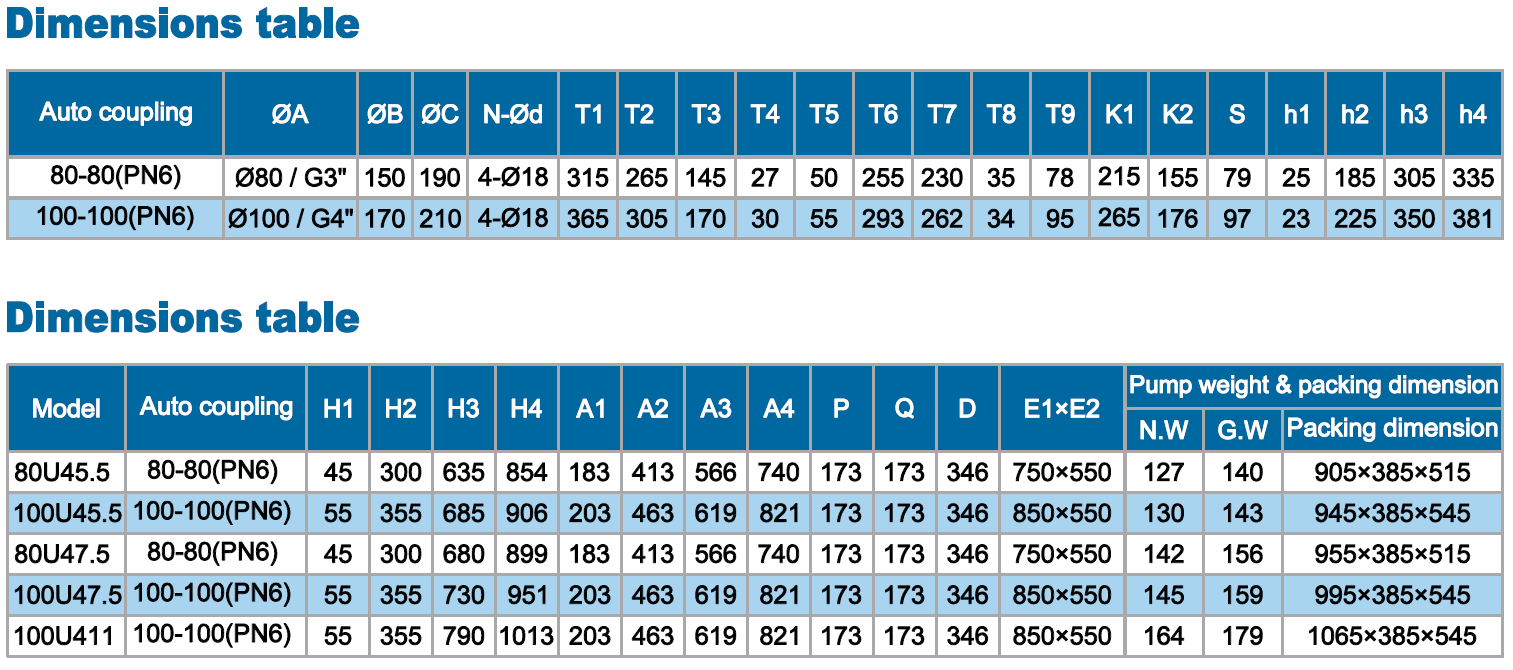

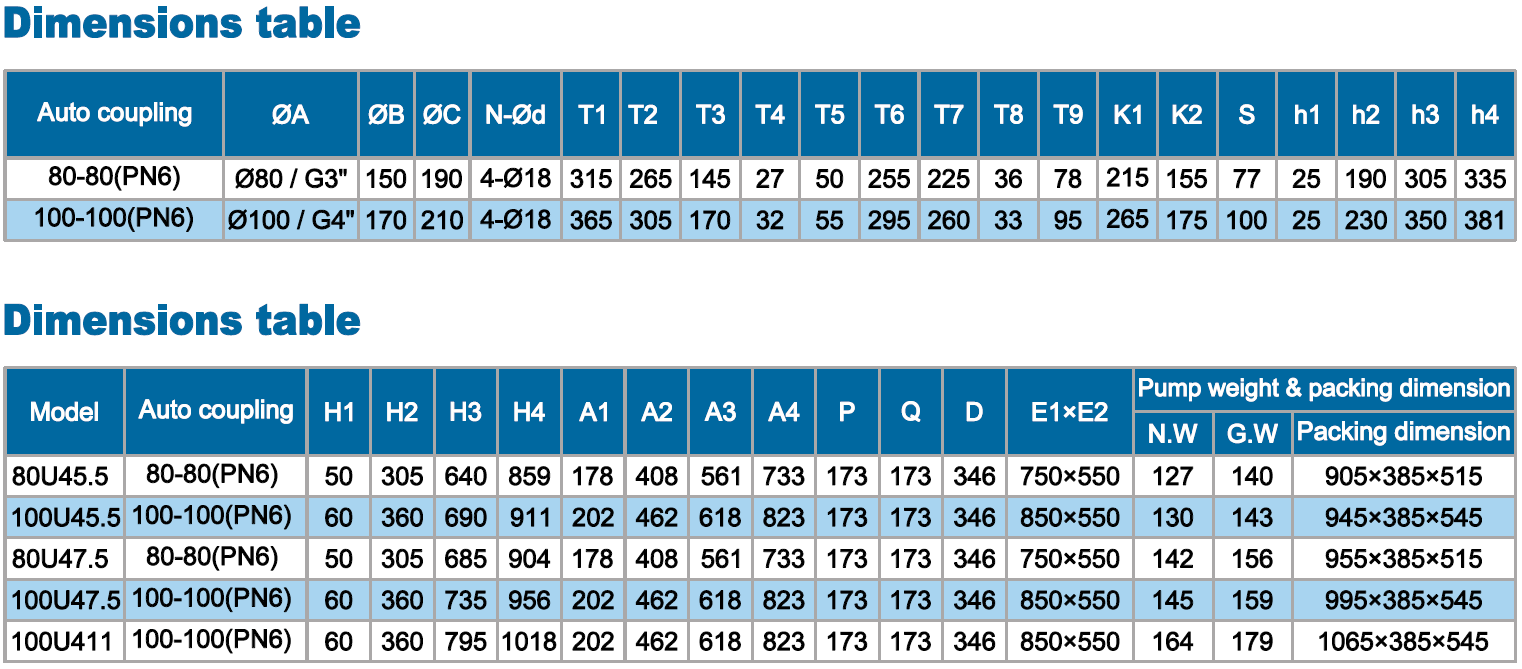

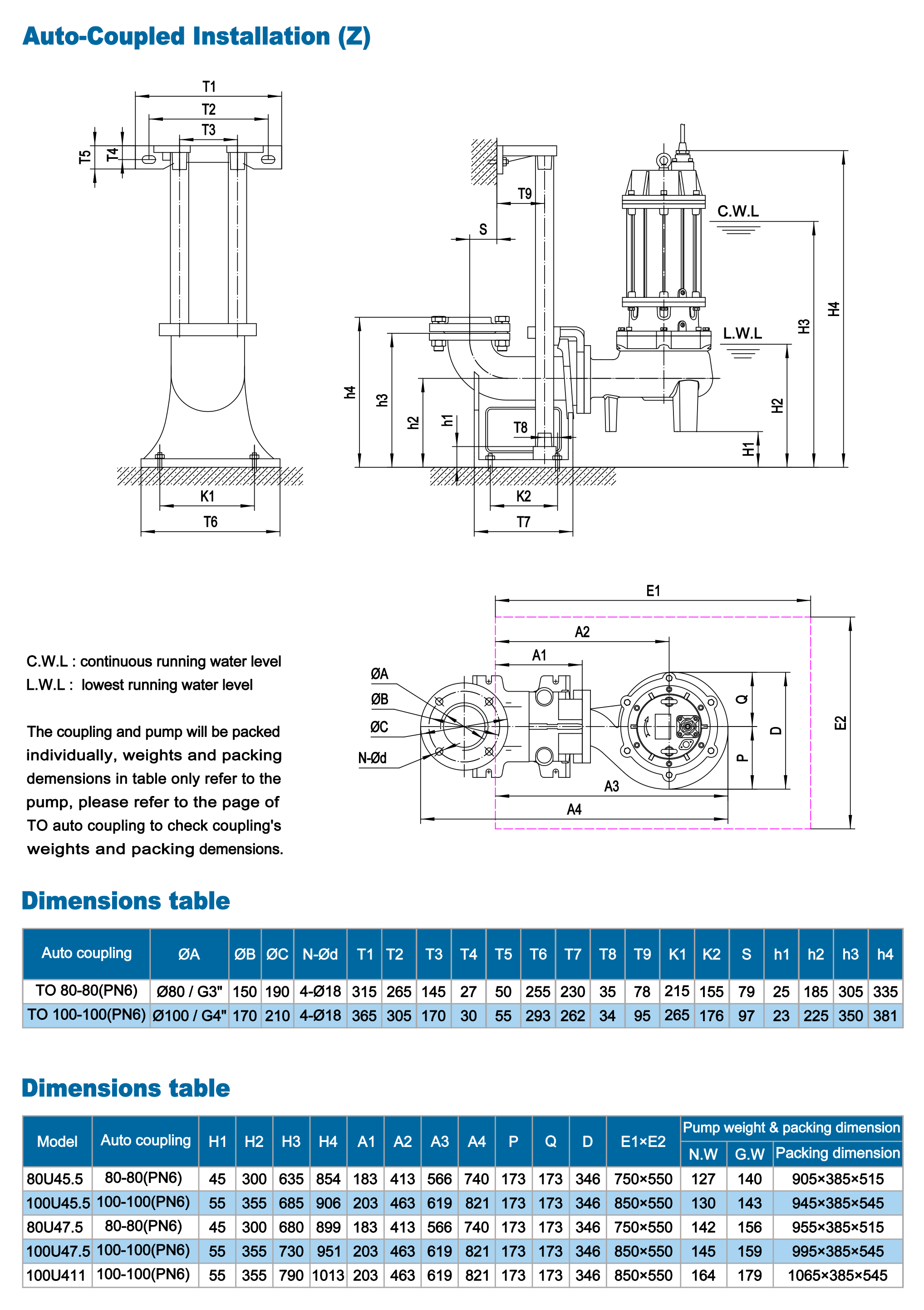

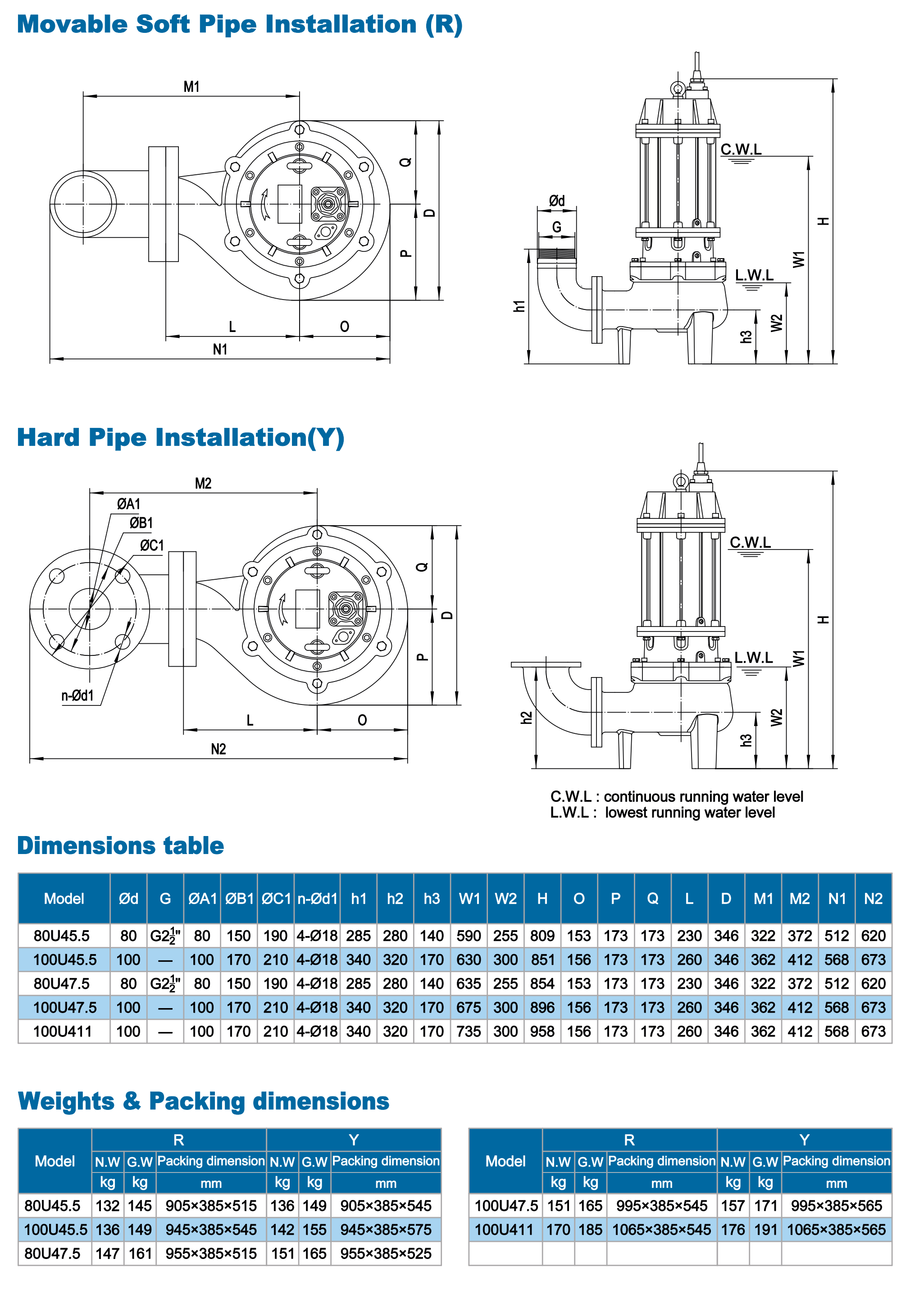

Packing Dimension




Consumable Parts

U SERIES SEWAGE PUMP 5.5-11kW 4P

oil housing

U SERIES SEWAGE PUMP 5.5-11kW 4P

pump body

U SERIES SEWAGE PUMP 5.5-11kW 4P

impeller
