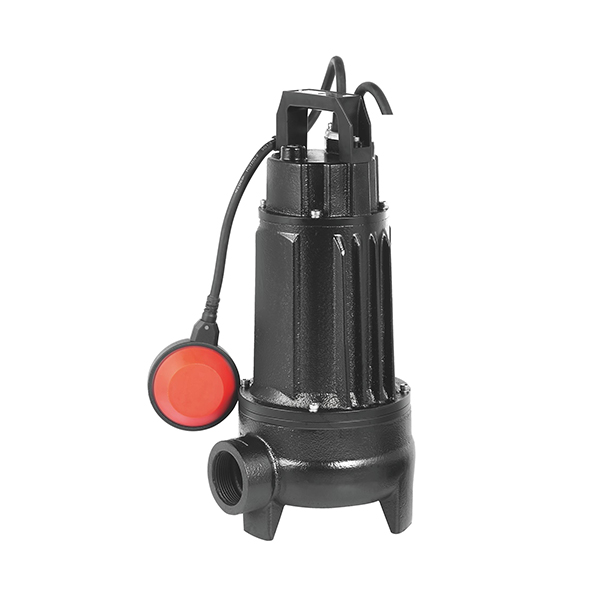

VH SERIES SEWAGE PUMP

Structure and characteristics

Semi vortex impeller design minimizes clogging situation, maximizes durability and maintains pump performance. With interaction between pump casing and the vortex impeller, VH pump draws water by eddy flow, which prevents internal clogging by solids and fibrous matter.

Application

Basements or other utility pits, rainwater, mud water and high-viscosity fluid.

Specification

Water temperature: up to 40

PH: 6-10

Power supply:single phase 230V±10%, 50Hz

                       three phase 400V±10%, 50Hz

                       single phase 220V±10%, 60Hz

                       three phase 400V±10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Max water depth: 10m

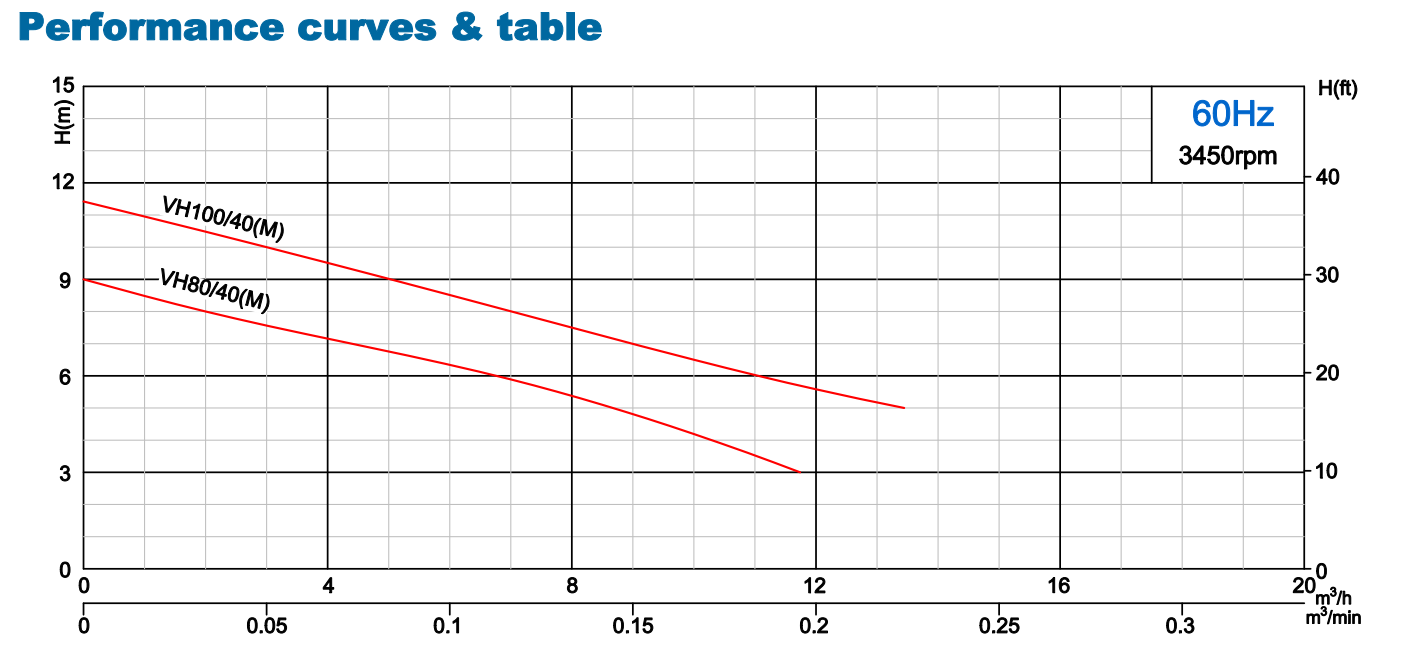

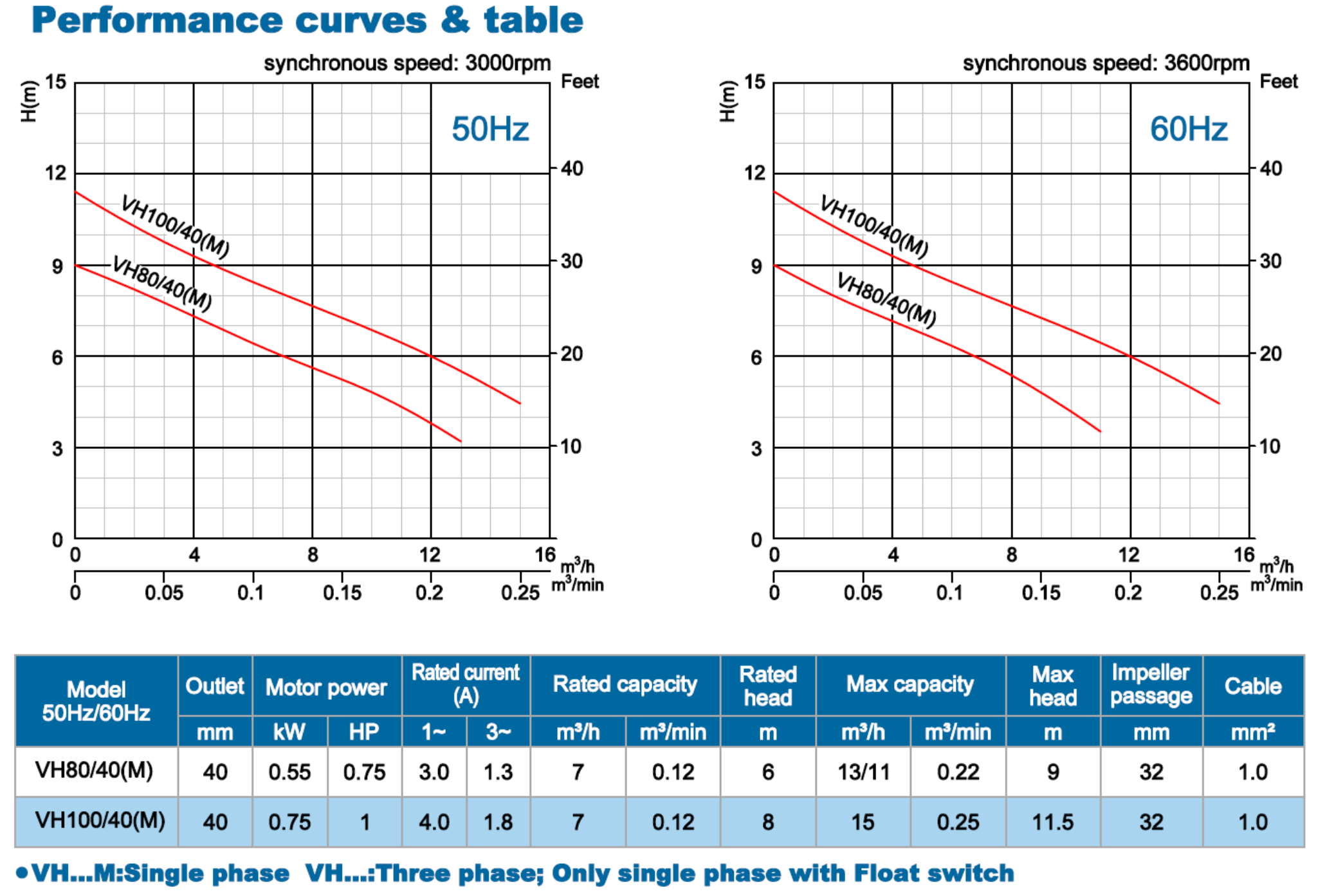

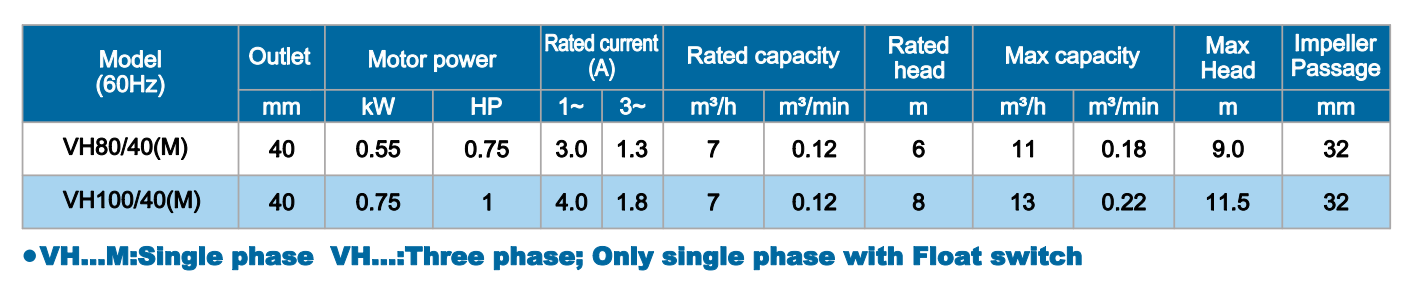

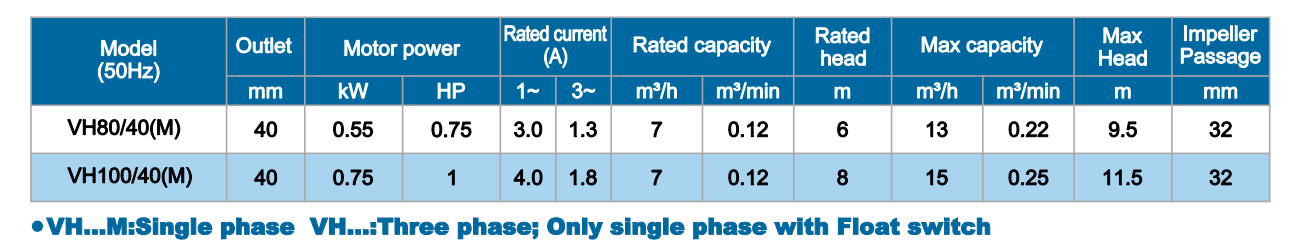

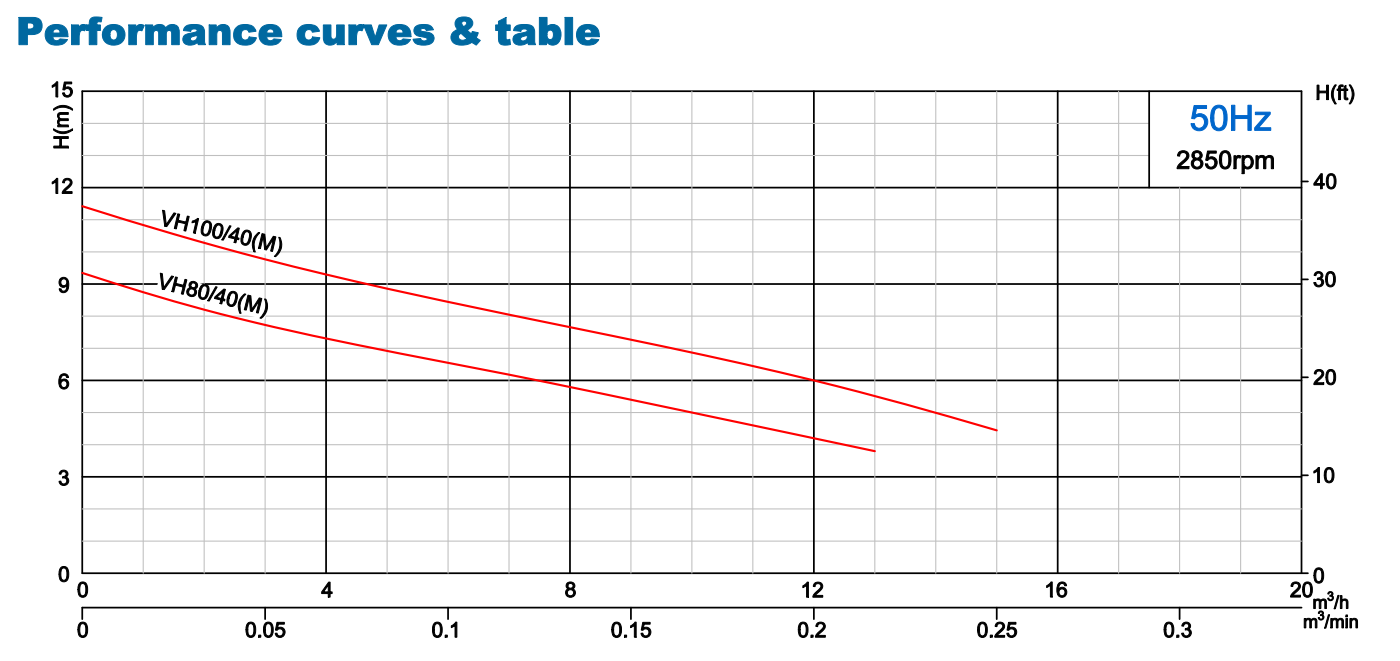

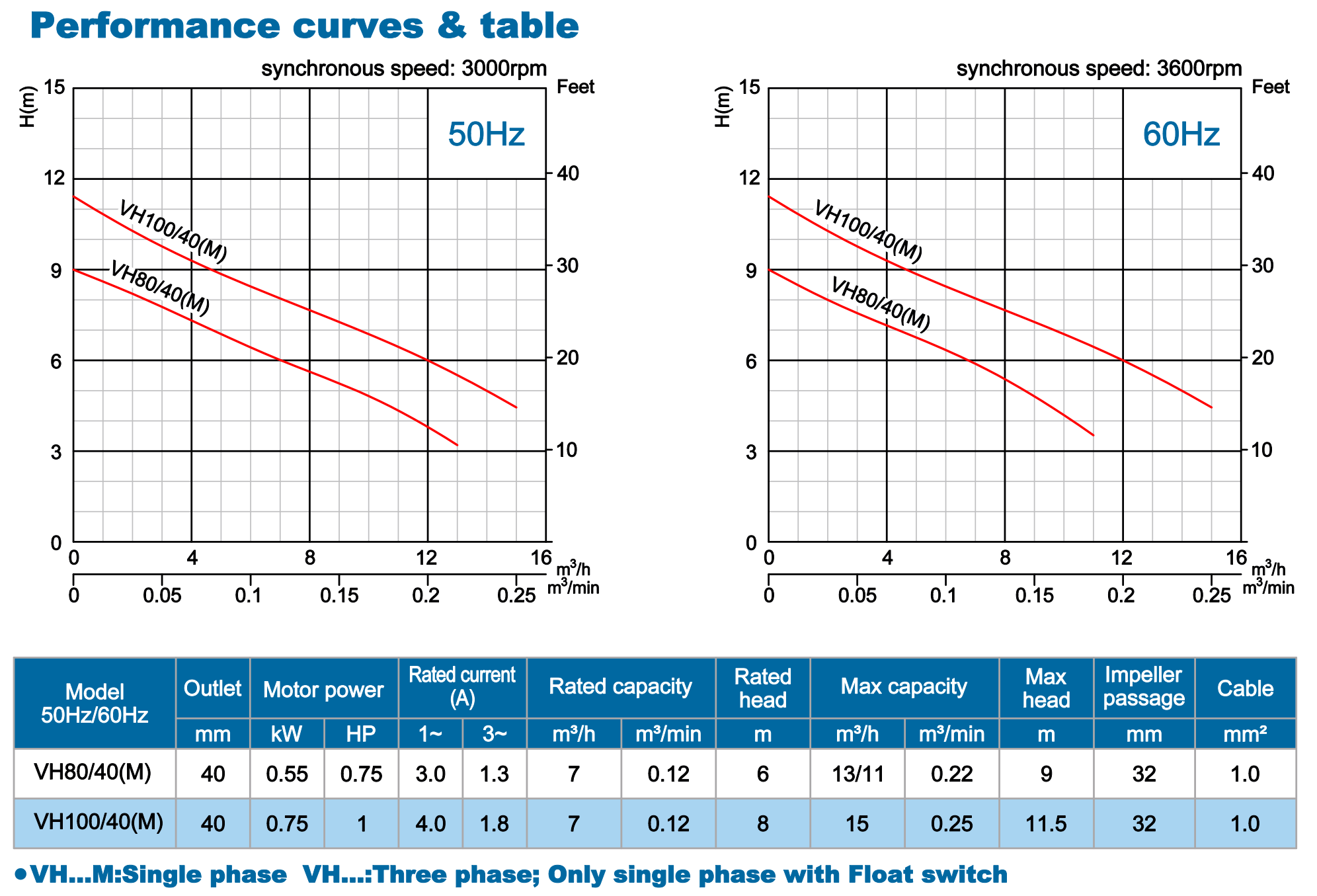

Series Product Specfications

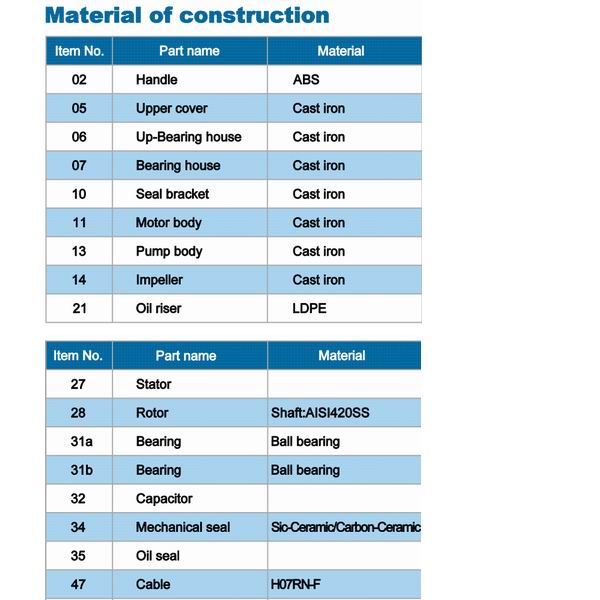

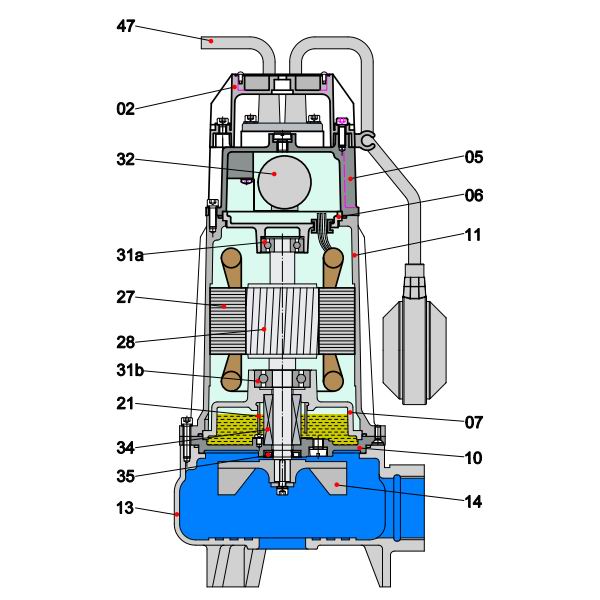

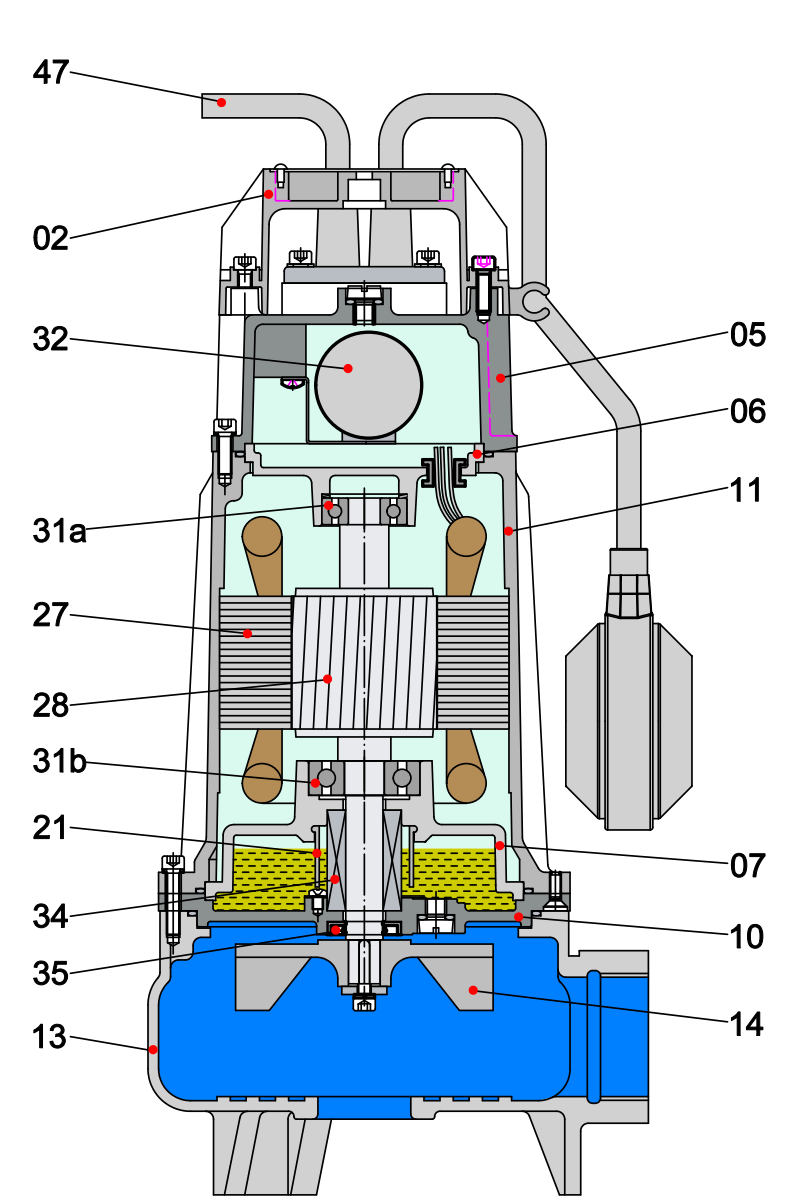

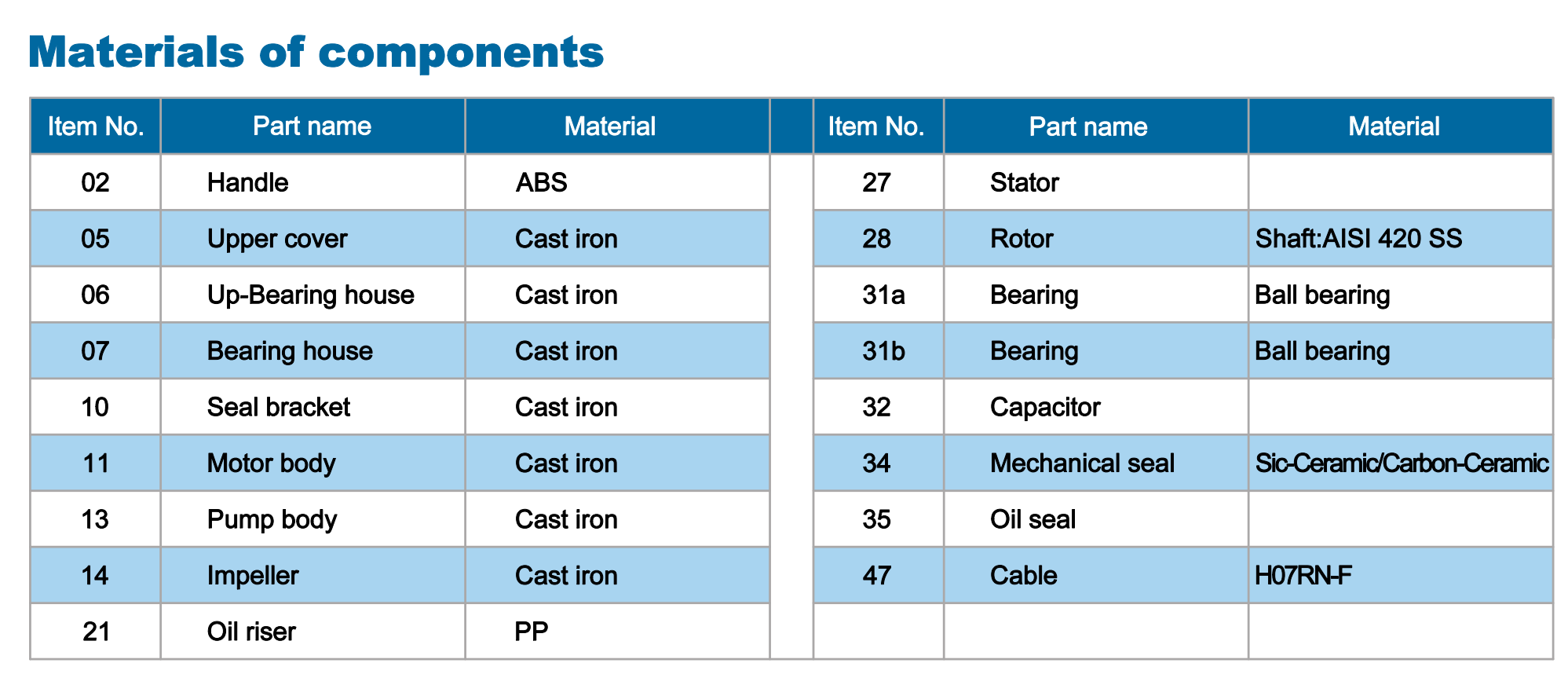

Material of Construction
Specification

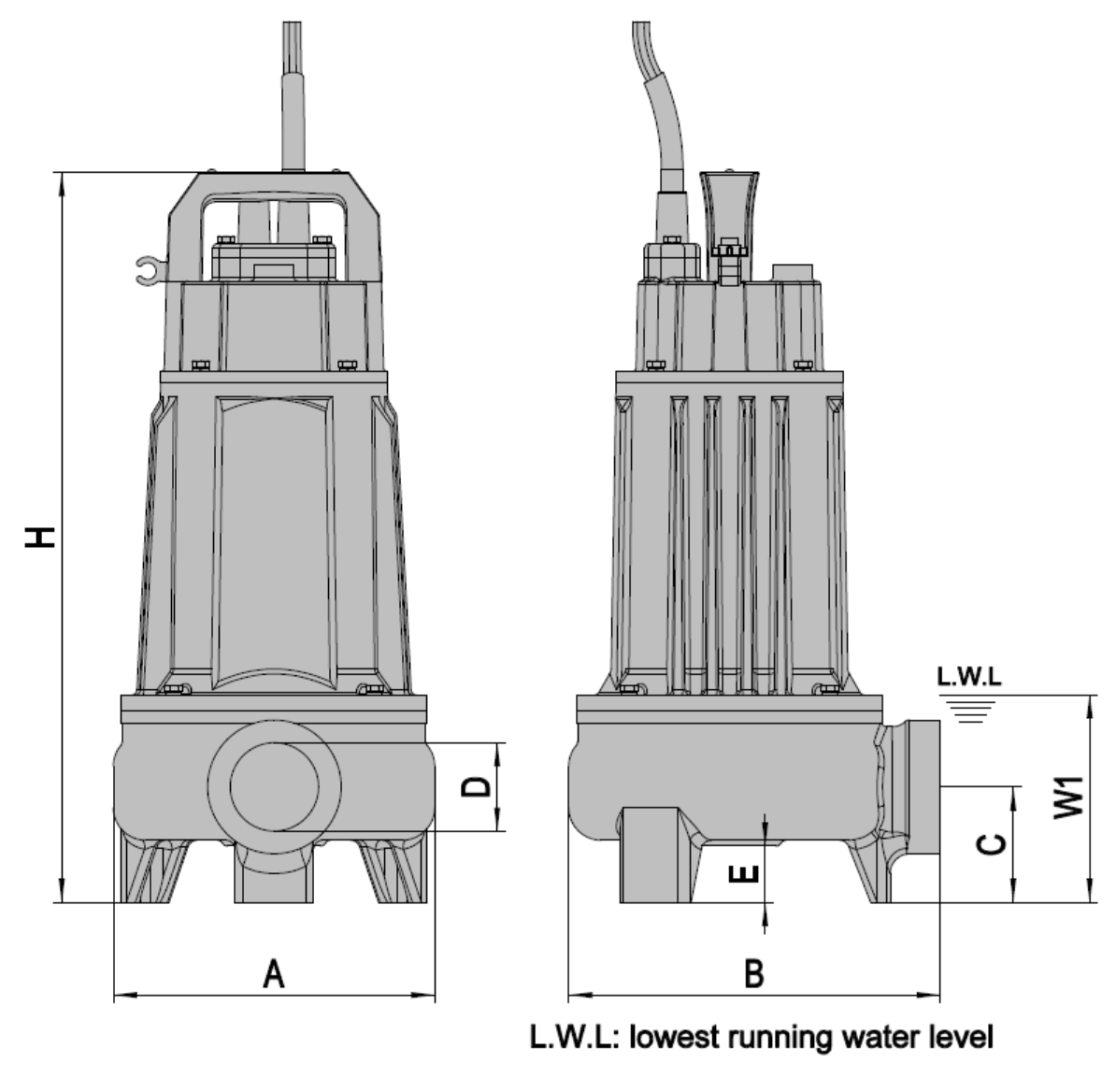

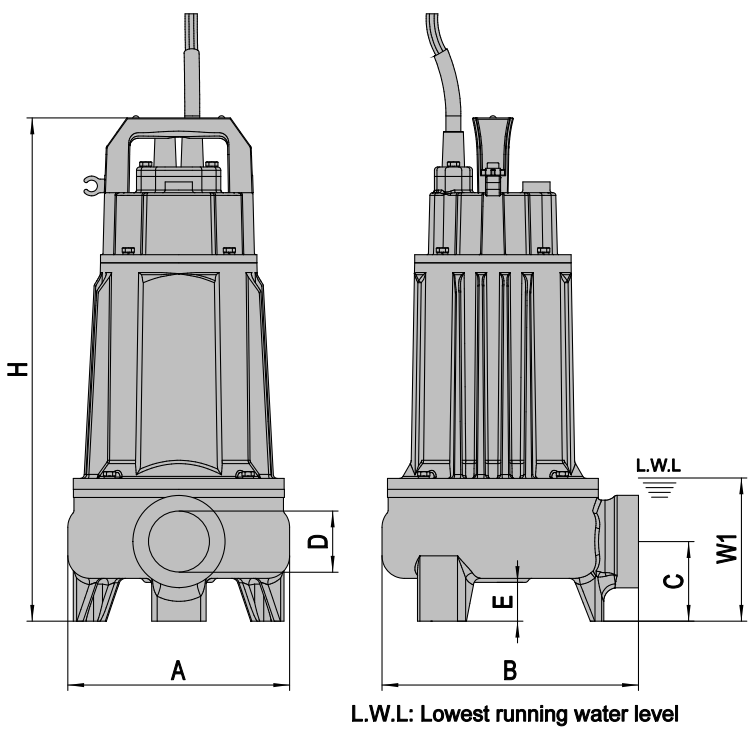

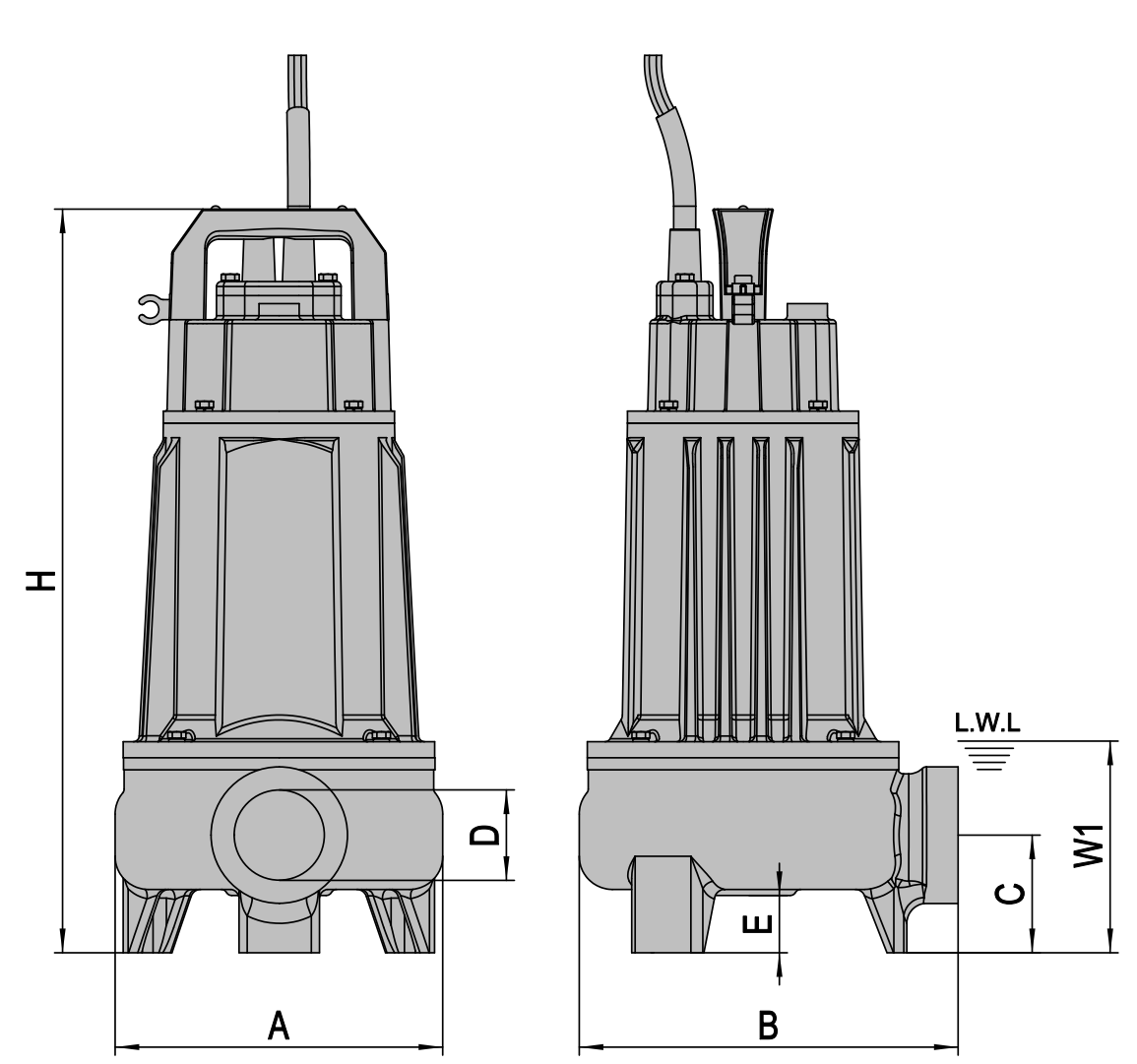

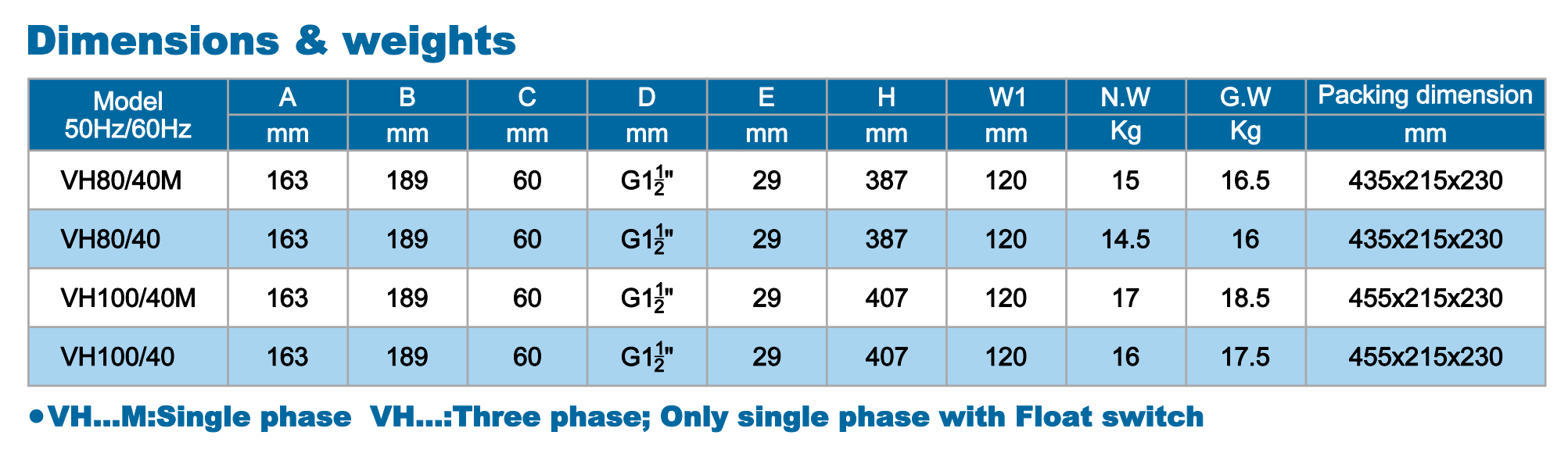

Packing Dimension




Consumable Parts

VH SERIES SEWAGE PUMP

oil housing

VH SERIES SEWAGE PUMP

pump body
