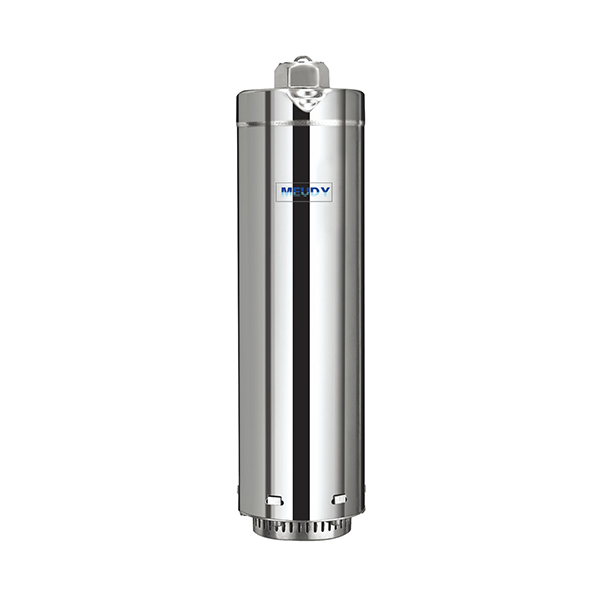

MXS SUBMERSIBLE PUMP TYPE A

Structure and characteristics

Close coupled multistage submersible pumps in chrome-nickel stainless steel.

Hydraulic part under the motor and motor cooled by the pumped. water for safe operation also with the pump only partially immersed.

Double shaft seal with interposed oil chamber.

The suction strainer prevents the entrance of solids with diameter bigger than 2mm



Application:

  • For water supply from wells, tanks or reservoirs
  • For domestic use, for civil and industrial applications
  • For garden use and irrigation. Utilization of rain water.

Specification

  • insulation class:F
  • Protection class: IP68
  • Water temperature up to 35oC
  • Minimum internal diameter of well 132mm
  • Minimum immersion depth: 100mm
  • Maximum immersion depth: 20m(with suitable cable length)
  • Continuous duty
  • Power: single-phase: 0.55 kw-1.3kw

                      three-phase: 0.55 kw-1.3kw

  • Power supply
  • MXSM: single phase 230v+10%, 50HZ: 220V+10%, 60HZ

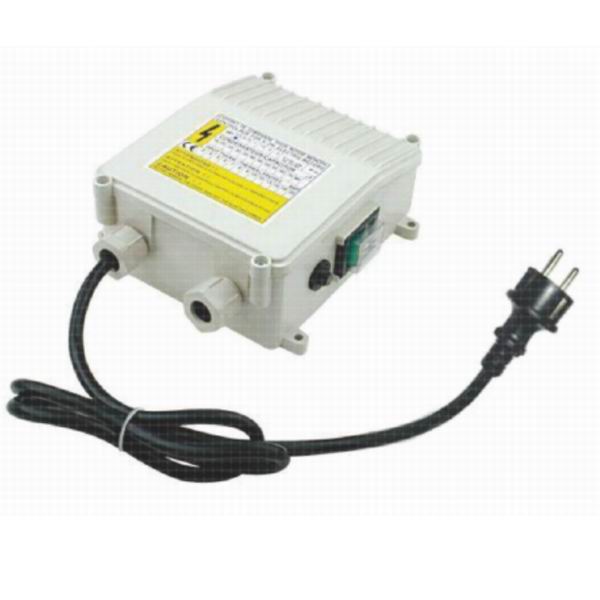

  • Control box with capacitor. And thermal device; Float switch(on demand)
  • MXS: three phase 230v+10%, 50HZ: 220V+10%, 60HZ
  • three phase400v±10%,50Hz;380V±10%,60Hz
  • Cable length: 15m

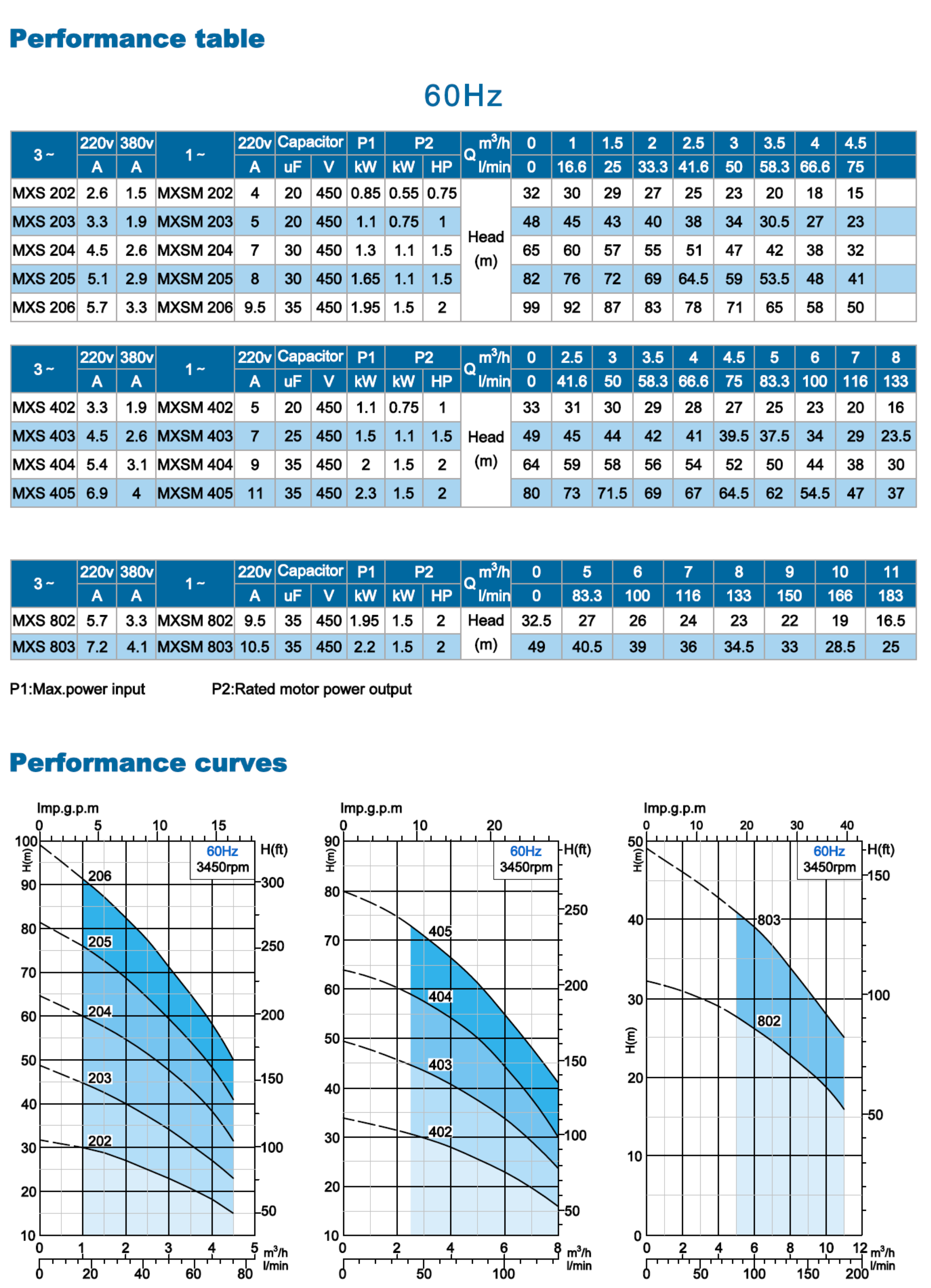

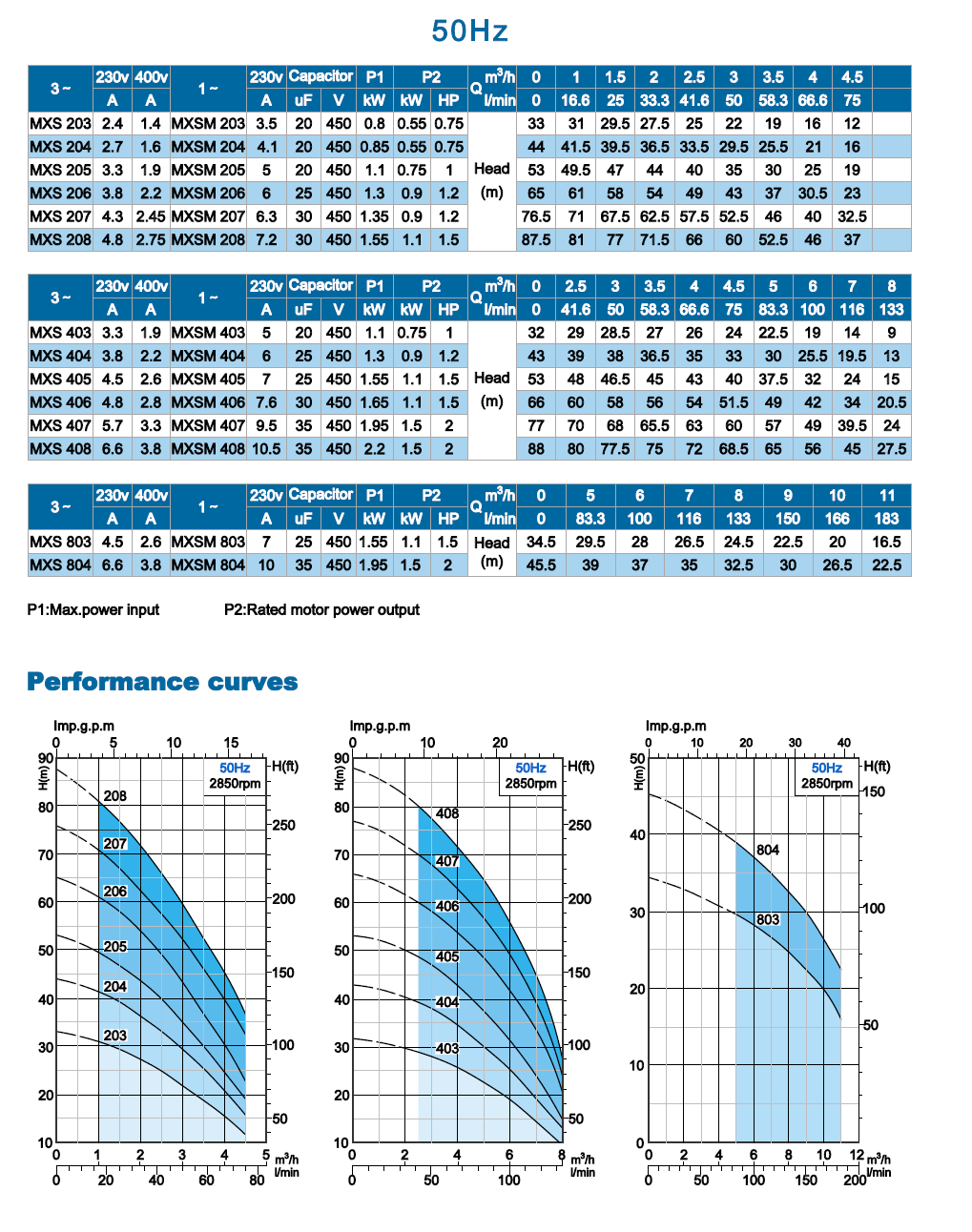

Series Product Specfications

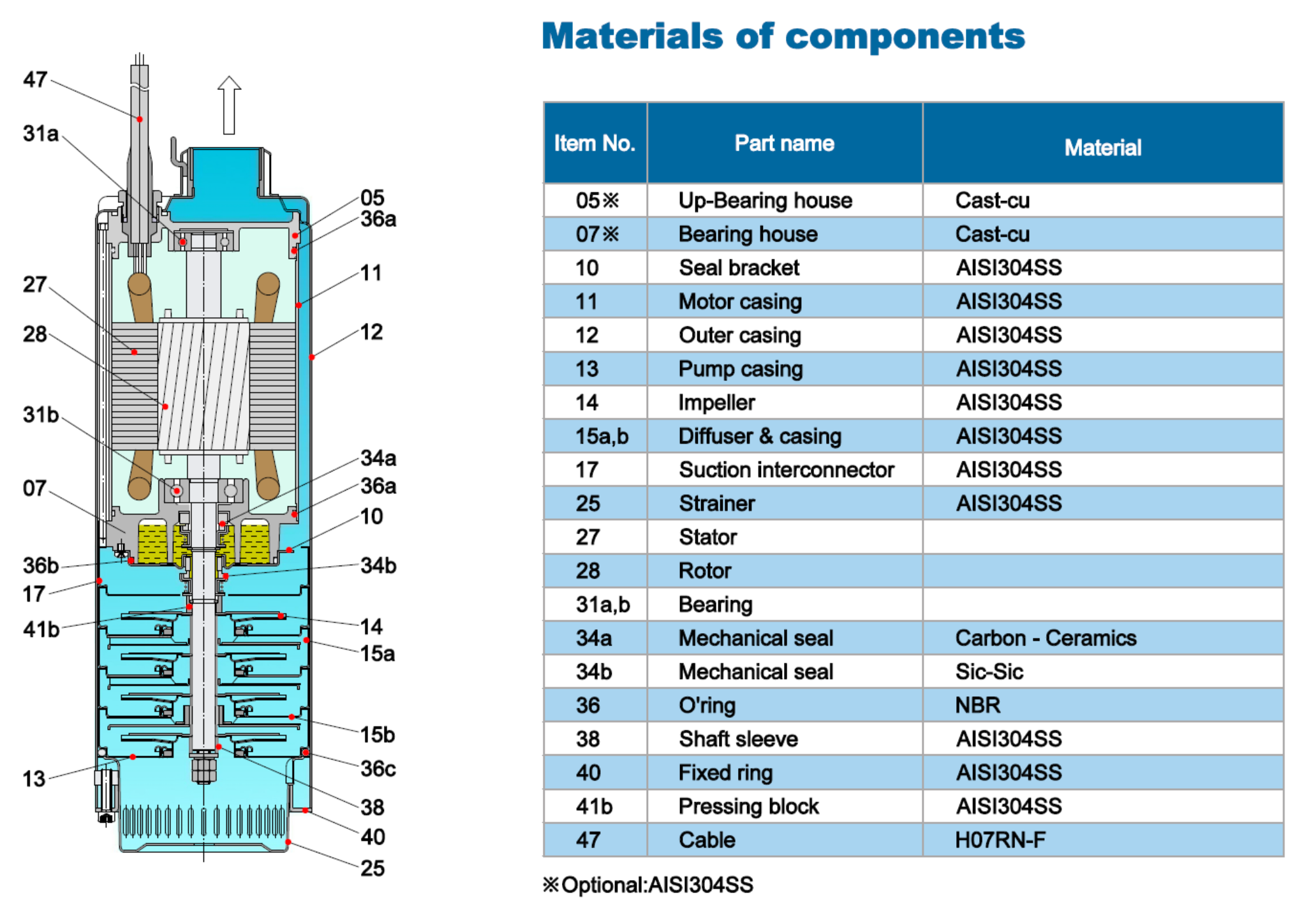

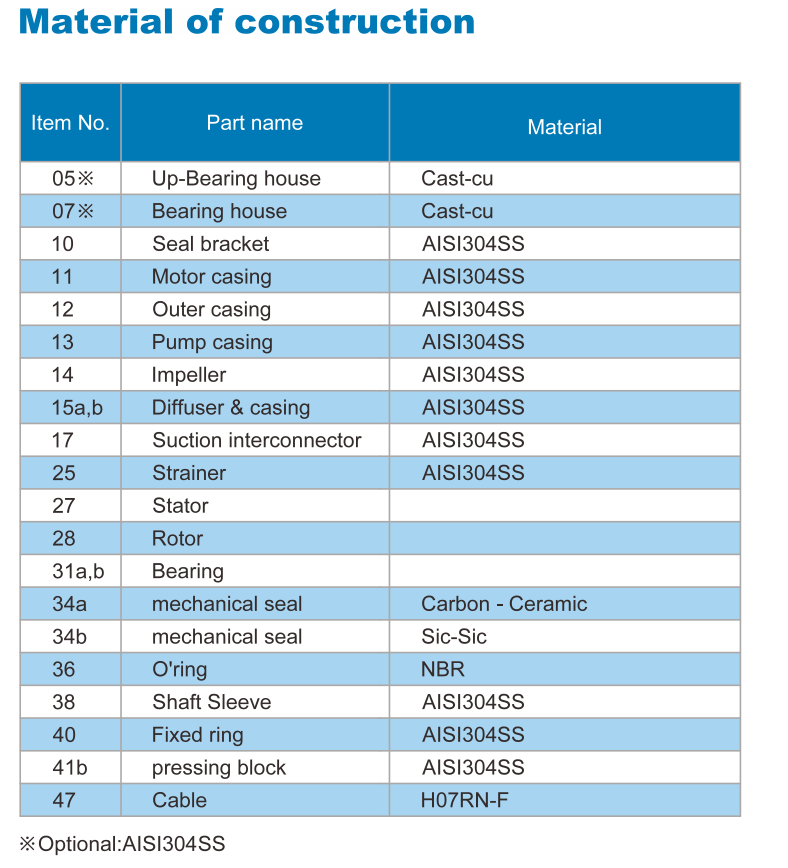

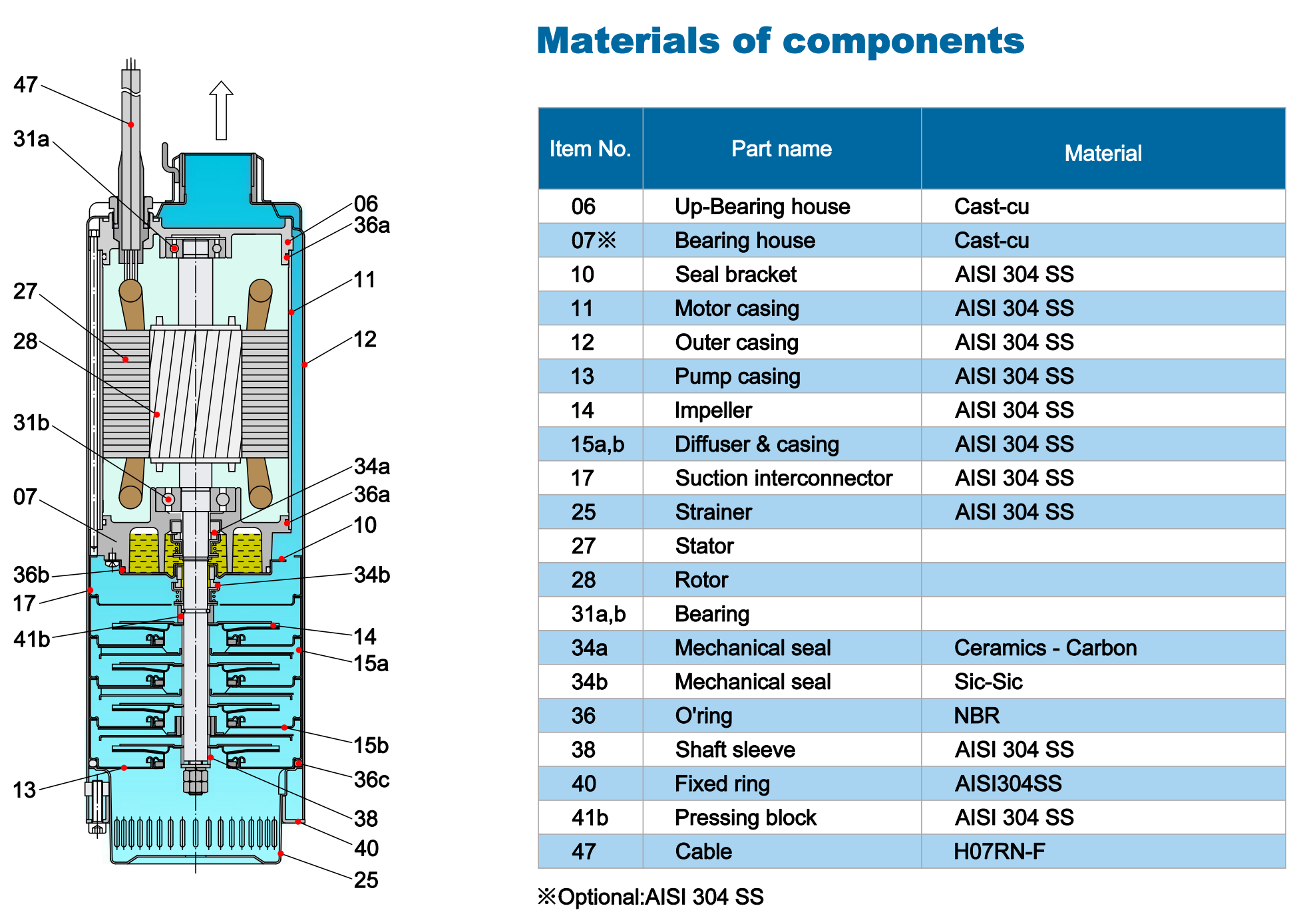

Material of Construction

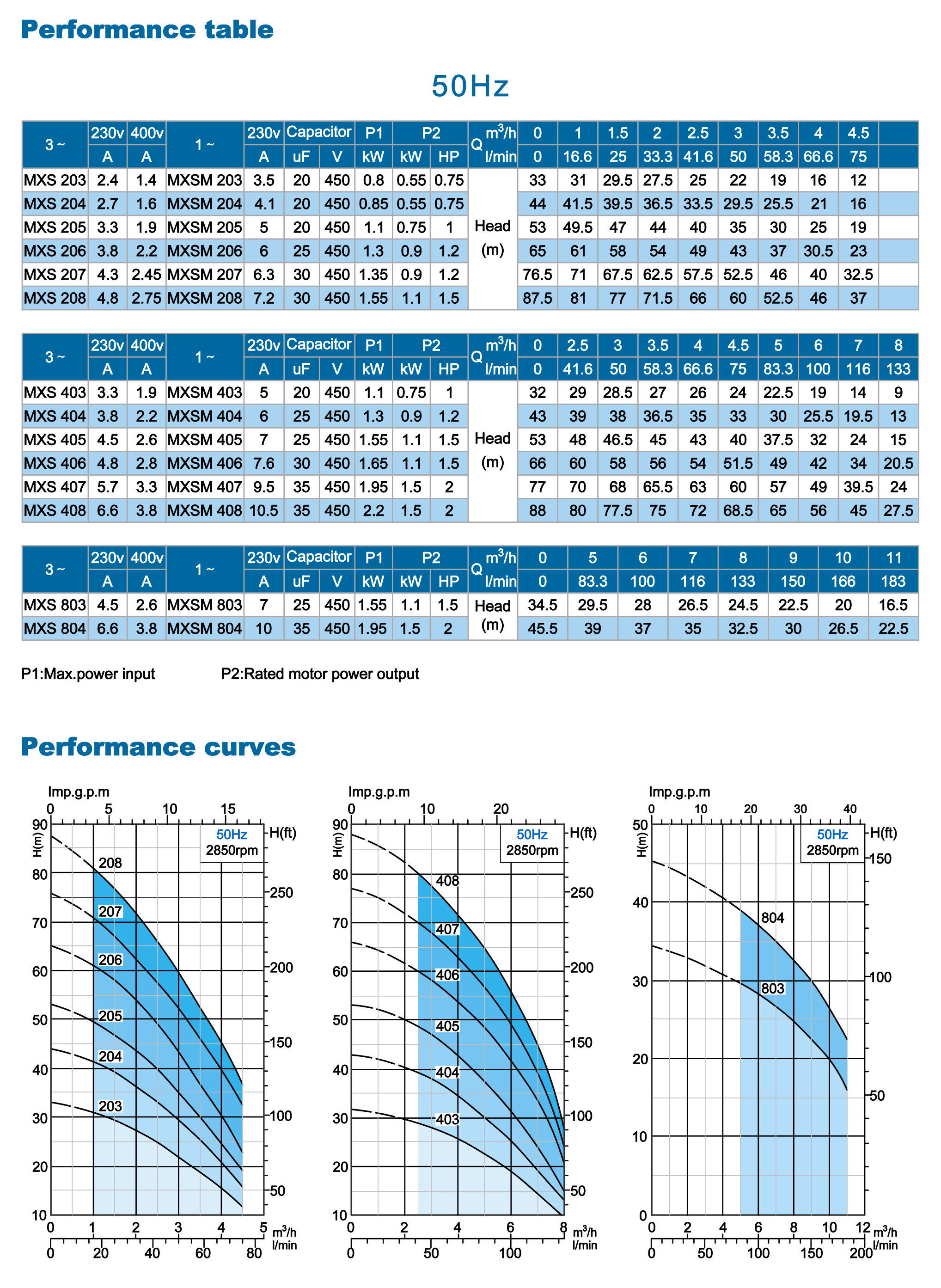

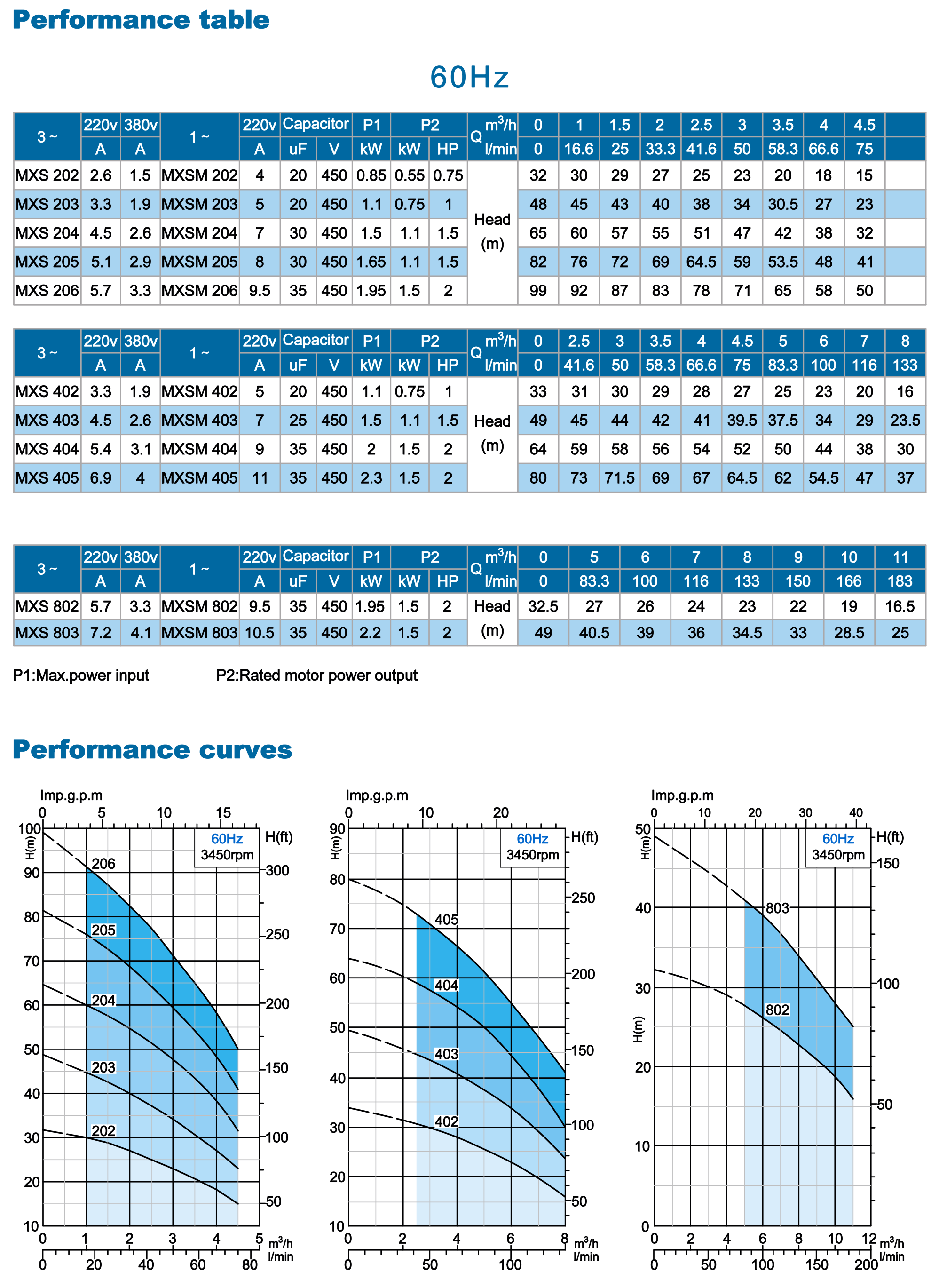

Specification

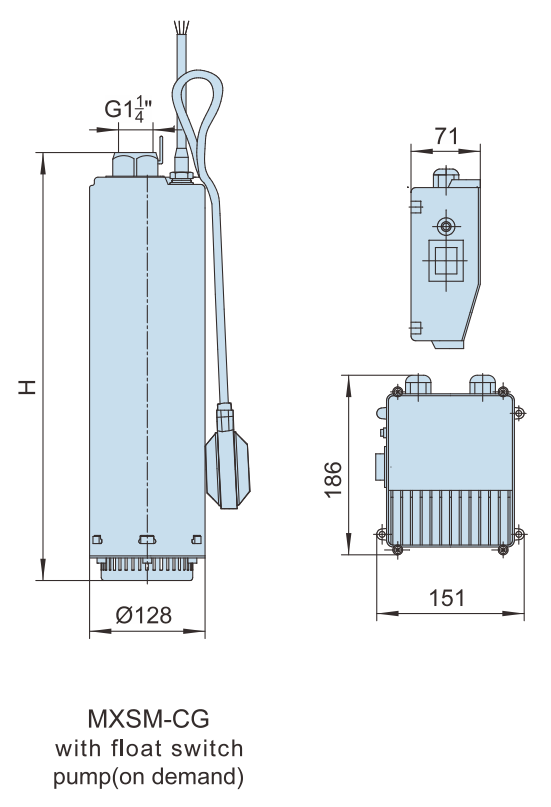

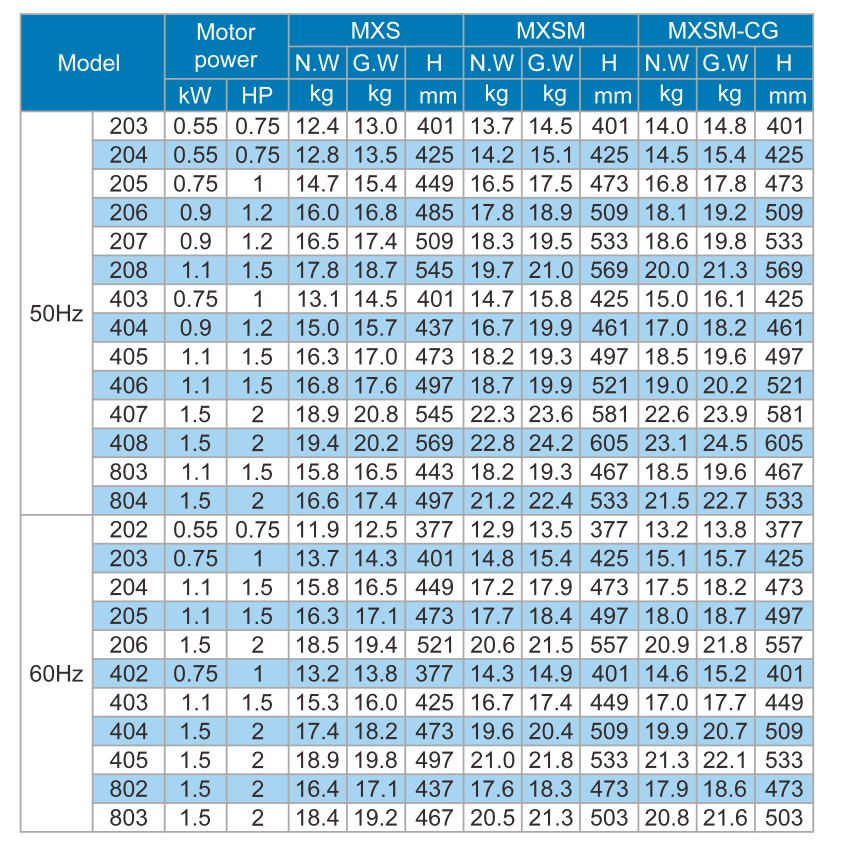

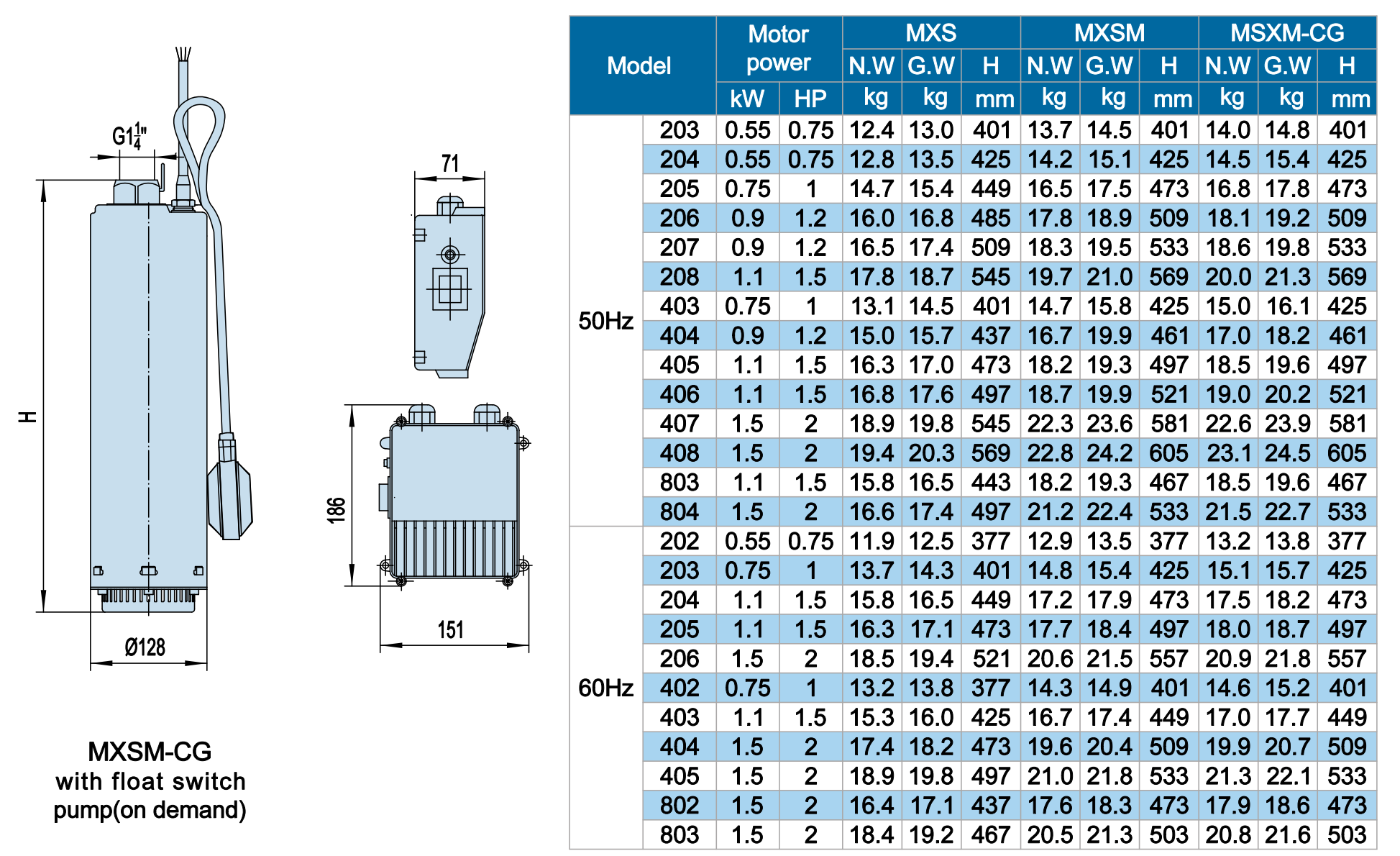

Packing Dimension




Consumable Parts
