Structure and characteristics

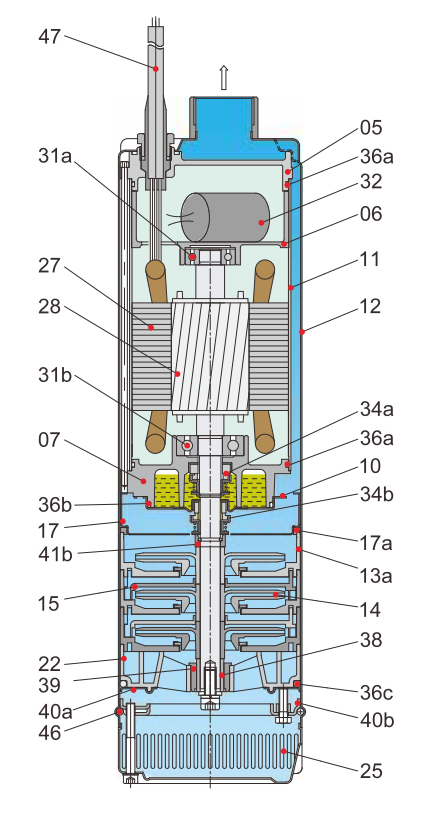

Close coupled multistage submersible pumps in chrome-nickel stainless steel.

Hydraulic part under the motor and motor cooled by the pumped water for safe operation even with the pump only partially immersed.

Double shaft seals with interposed oil chamber.

The suction strainer prevents entrance of solids with diameter larger than 2mm.

Application

• For water supply from wells, tanks or reservoirs

• For domestic or industrial use

• For gardening and irrigation through utilization of rainwater tanks

Specification

• Insulation class: F
• Protection class: IP68
• Water temperature up to 35°C
• The solids in the water is less than 0.02%(heavy proportion)
• Minimum internal diameter of well: 132mm
• Minimum immersion depth: 100mm
• Maximum immersion depth: 20m(with suitable cable length)
• Continuous operation
• Power: single-phase:0.55 kW~1.3kW

                      three-phase:0.55 kW~1.3kW

• Power supply

          MXSM: single phase 230v±10%,50Hz; 220V±10%, 60Hz

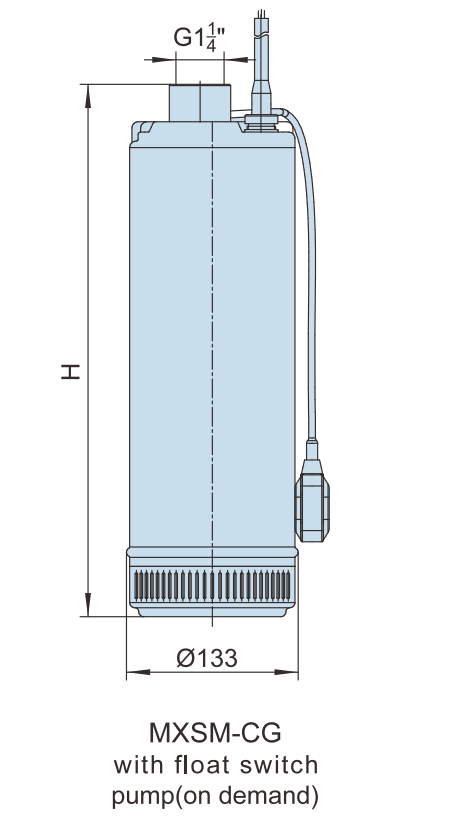

          Control box with capacitor, thermal device, float switch (optional)

          MXS: three phase 230v±10%,50Hz;220V±10%,60Hz

                   three phase 400v±10%,50Hz; 380V±10%,60Hz

          Cable length:15m
