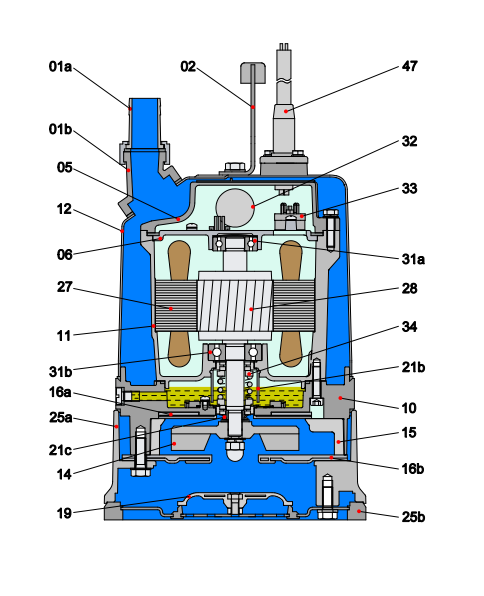

Structure and characteristics

FCM series pump is a portable submersible residue drainage pump. There’s a one-way valve in the bottom inlet to prevent the water in the pipeline from flowing back. The minimum water level can be pumped to 1mm.

FCM pump adopts lightweight design. The small outer diameter allows it to be used in an 8-inch well. The components of FCM series are made of wear-resistant rubber and ductile iron, which is with excellent durability. The water is sucked from the bottom and discharged from the top through the inter layer between the motor case and the water jacket,which provide the highest cooling efficiency for the motor, and thus allow continuous operation at low water level. There’s a large gap between the semi open impeller and the pump body, so the impeller will not be easily stuck by mud or sand. The hose coupling could be installed vertically or obliquely to prevent the soft hose pipe from folding or bending.

Application:
