FBM SUBMERSIBLE DRAINAGE PUMP

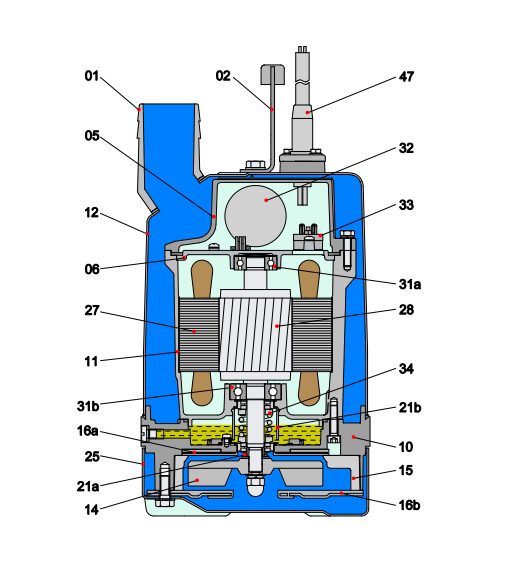

Structure and characteristics

  The FBM series is a portable small submersible drainage pump with lightweight design. The small outer diameter allows it to be used in an 8-inch well. The components of FBM series are made of wear-resistant rubber and ductile iron which is with excellent durability.

 The water is sucked from the bottom and discharged from the top through the inner layer between the motor case and the water jacket, which provide the highest cooling efficiency for the motor and thus allow continuous operation at low water level. A large gap is between the semi open impeller and the pump body, so the impeller will not easily be stuck by mud or sand. The hose coupling could be installed vertically or obliquely to prevent the soft hose pipe from folding or bending.

Application:

Civil engineering, building sites, basements or other utility pits

Rainwater and mud water

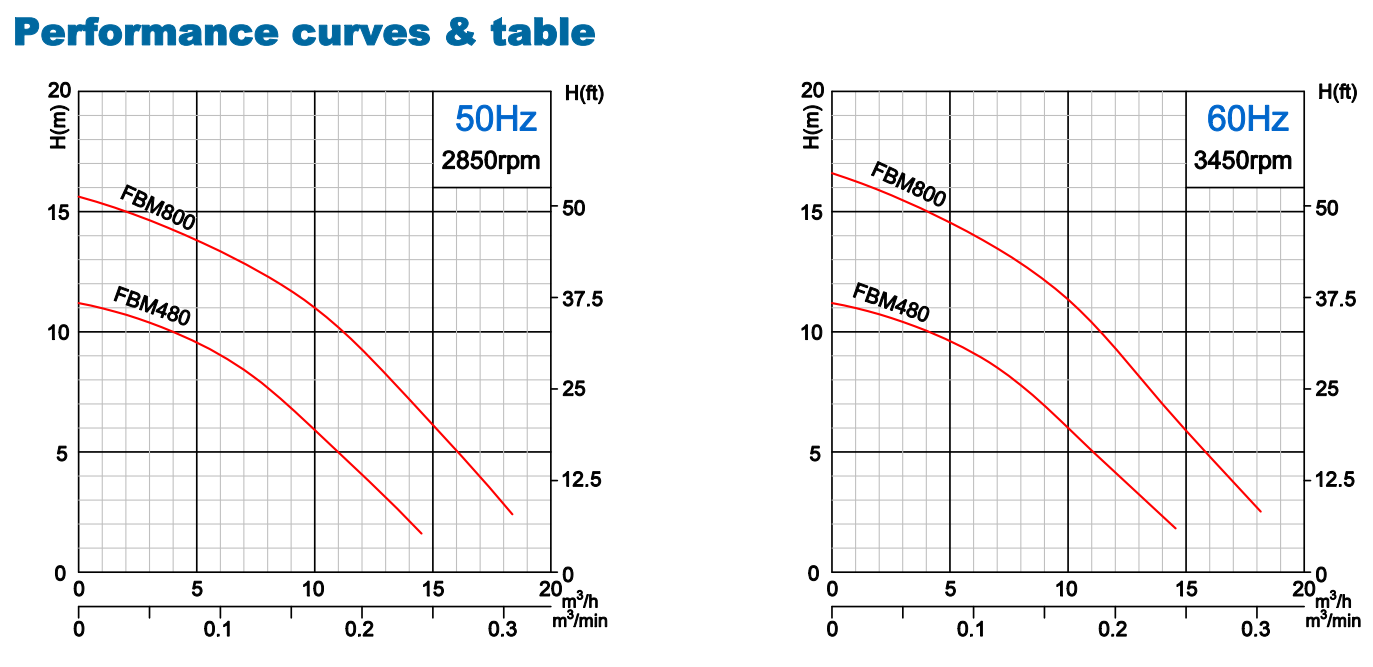

Series Product Specfications

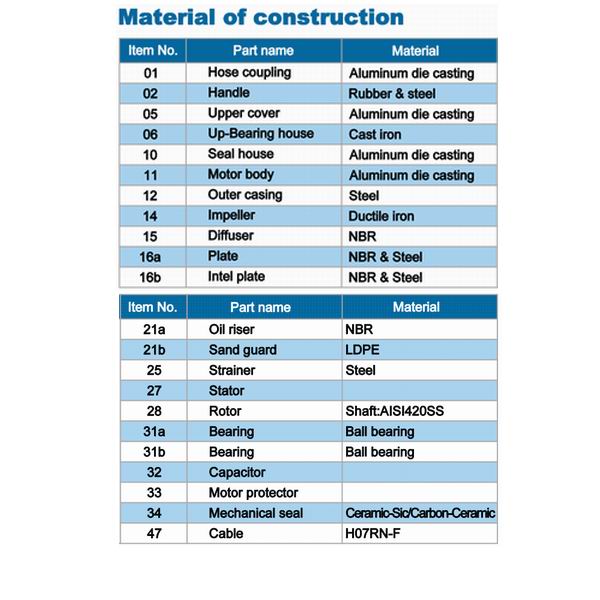

Material of Construction

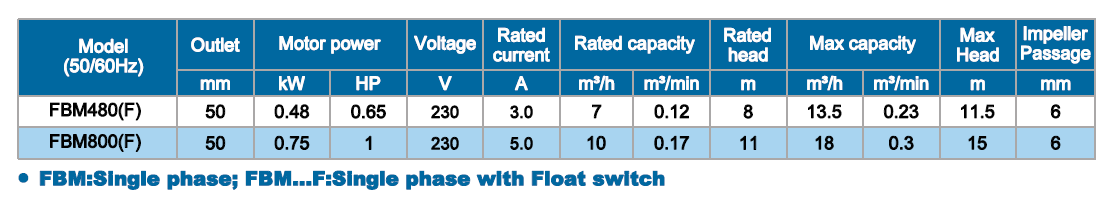

Specification

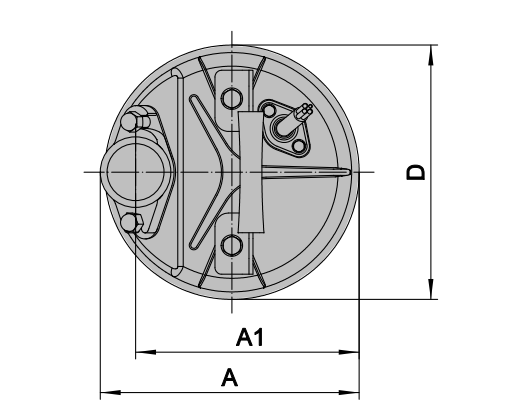

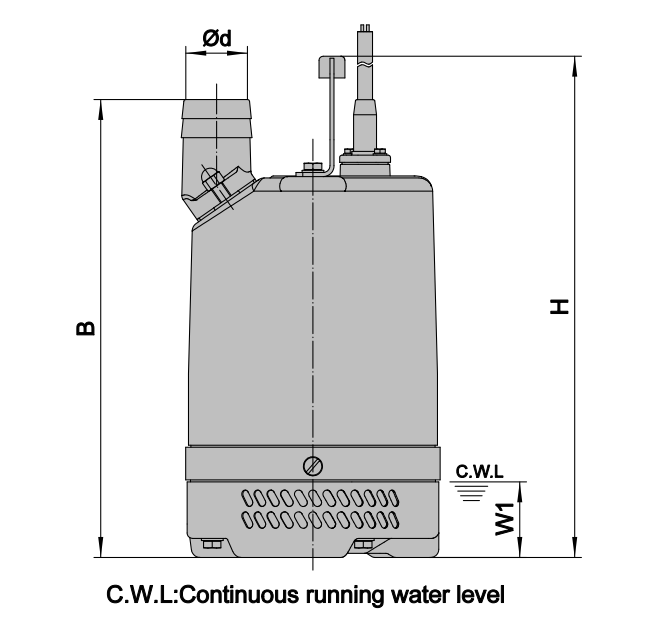

Packing Dimension








Consumable Parts

FBM SUBMERSIBLE DRAINAGE PUMP

impeller

FBM SUBMERSIBLE DRAINAGE PUMP

impeller

FBM SUBMERSIBLE DRAINAGE PUMP

under suction cover

FBM SUBMERSIBLE DRAINAGE PUMP

upper suction cover
