FSME SUBMERSIBLE DRAINAGE PUMP

Structure and characteristics

Semi Vortex impeller design minimize the Clogging situation for maximum durability and maintaining pump performance. Built-in shaft mounted agitator prevents the “air lock” and reduces the clogging situation. The pump can operate automatically with built-in intelligent control system, thus achieve low total energy costs.

The pump stops working within 60s when water level is below the probe, when the water level rises to contact the electric probe, pump starts operating again;

Automatically stop the pump in event of overload, abnormal voltage and recovery 5min later. The pump stops working within 0.1s when overload is serious.

Protect against impeller jam, thus prevent accidental damage;

Rapid assessment about the pump operation and malfunction history.

Application

Civil engineering, building sites, basements or other utility

Pits, rainwater, mud water and high-viscosity fluid.



Specification

Water temperature: up to 40

PH: 6.5-8.5

Power supply: single phase 220V±10%, 50Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Max water depth: 10m



Special features on request

Other voltages

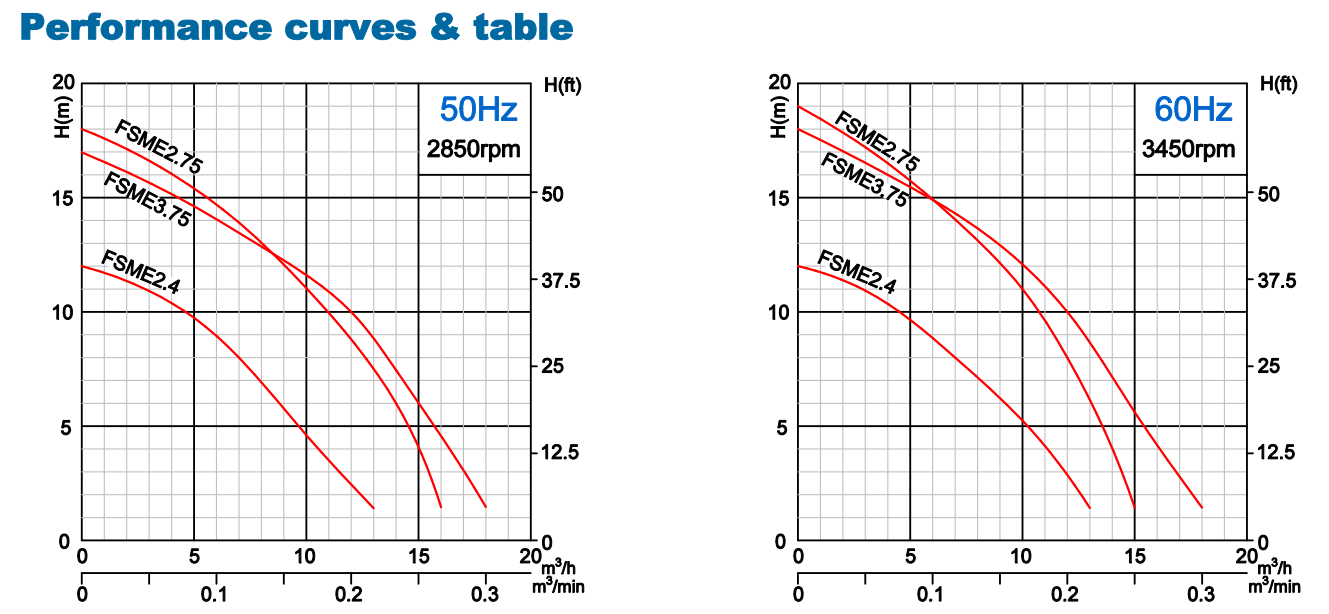

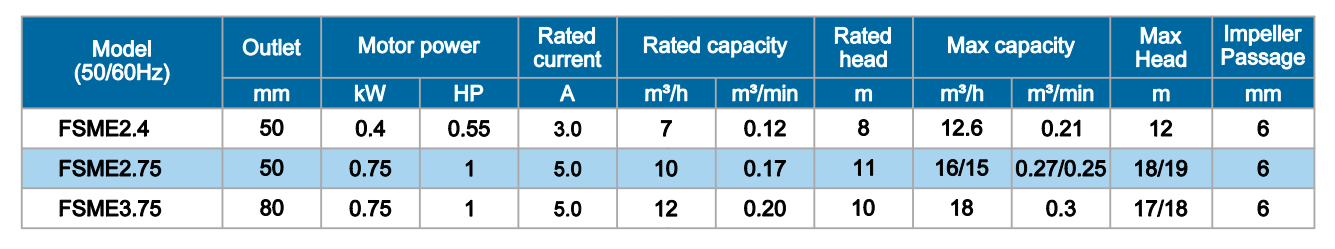

Series Product Specfications

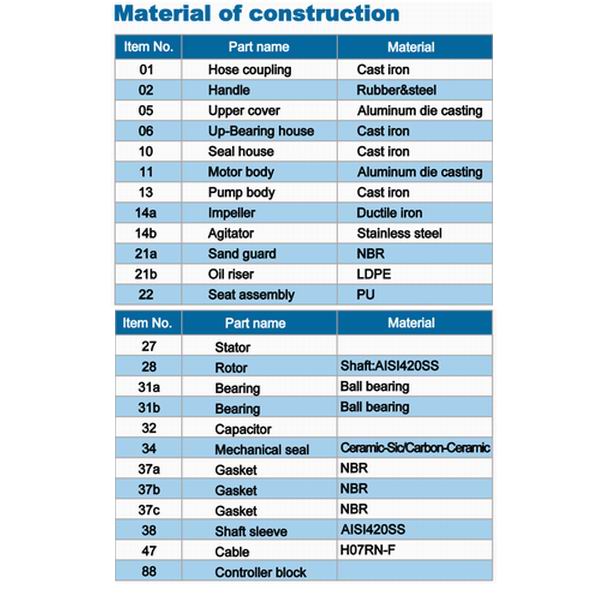

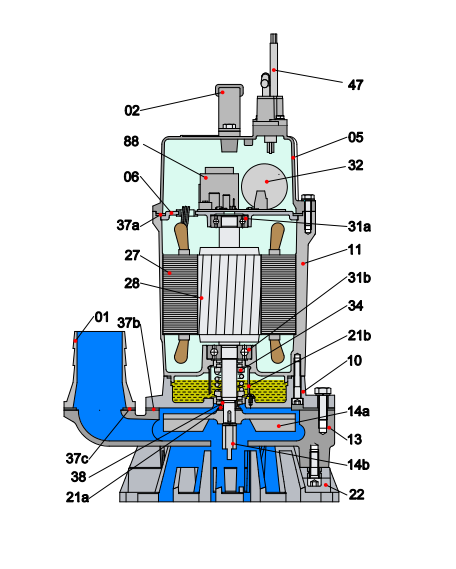

Material of Construction
Specification

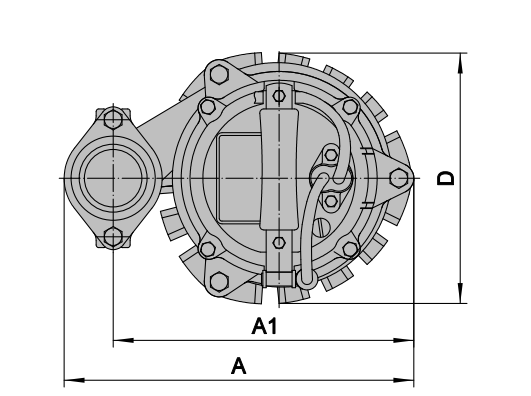

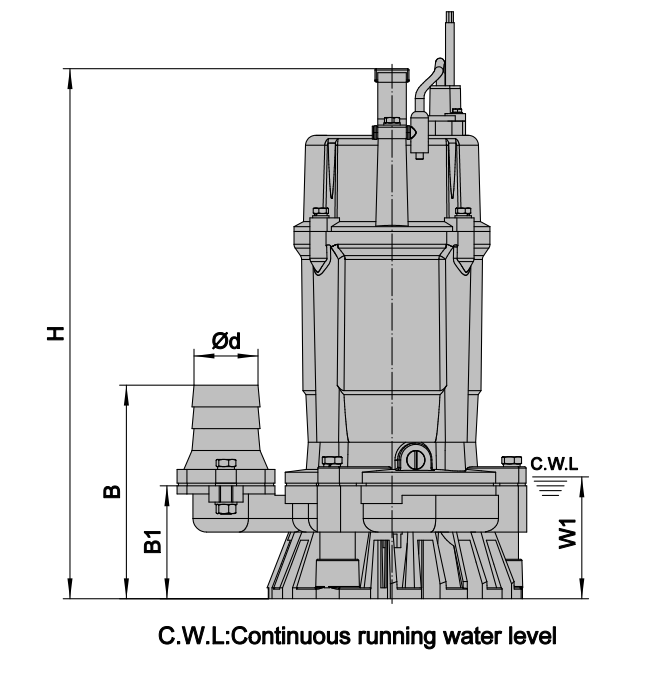

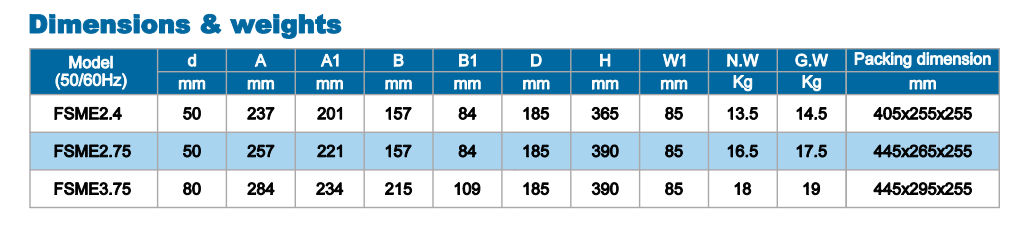

Packing Dimension





document dowload

Consumable Parts
