(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

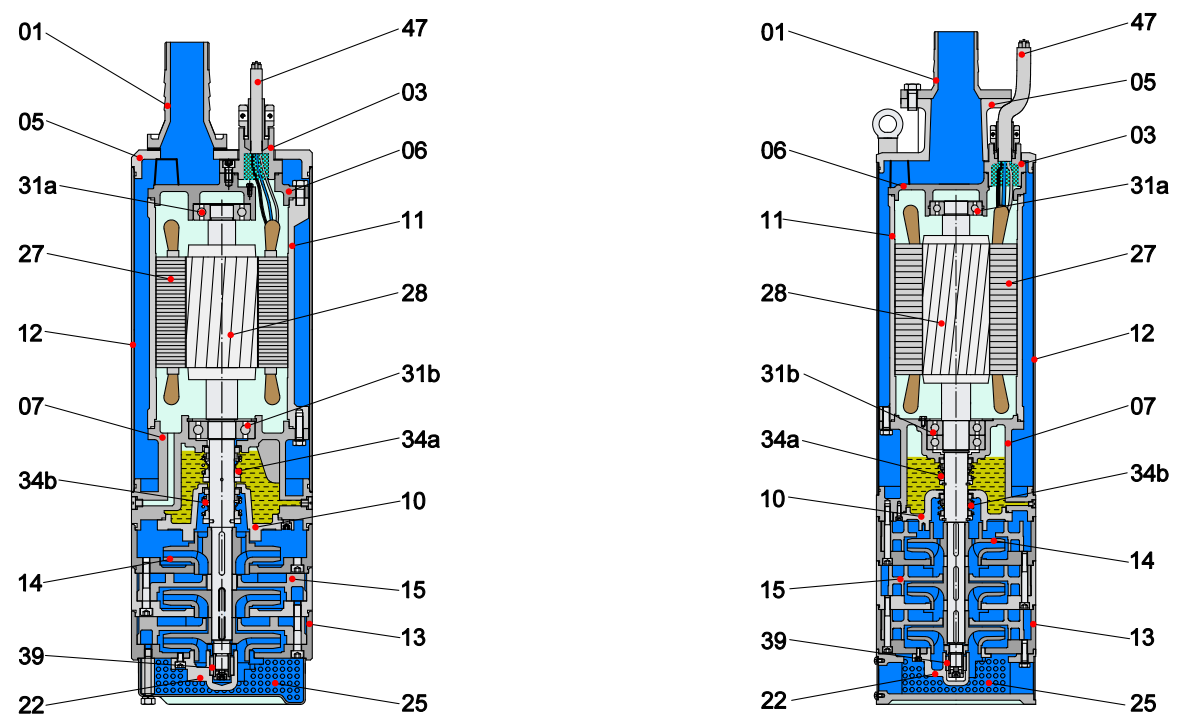

Structure and characteristics

Hydraulic part is under the motor and motor is cooled by the pumped water for safe operation even with the pump only partially immersed.

Double shaft seals are utilized with interposed oil chamber.

Application:

Civil engineering, building sites, basements or other utility pits

Rain water, mud water and high-viscosity fluid

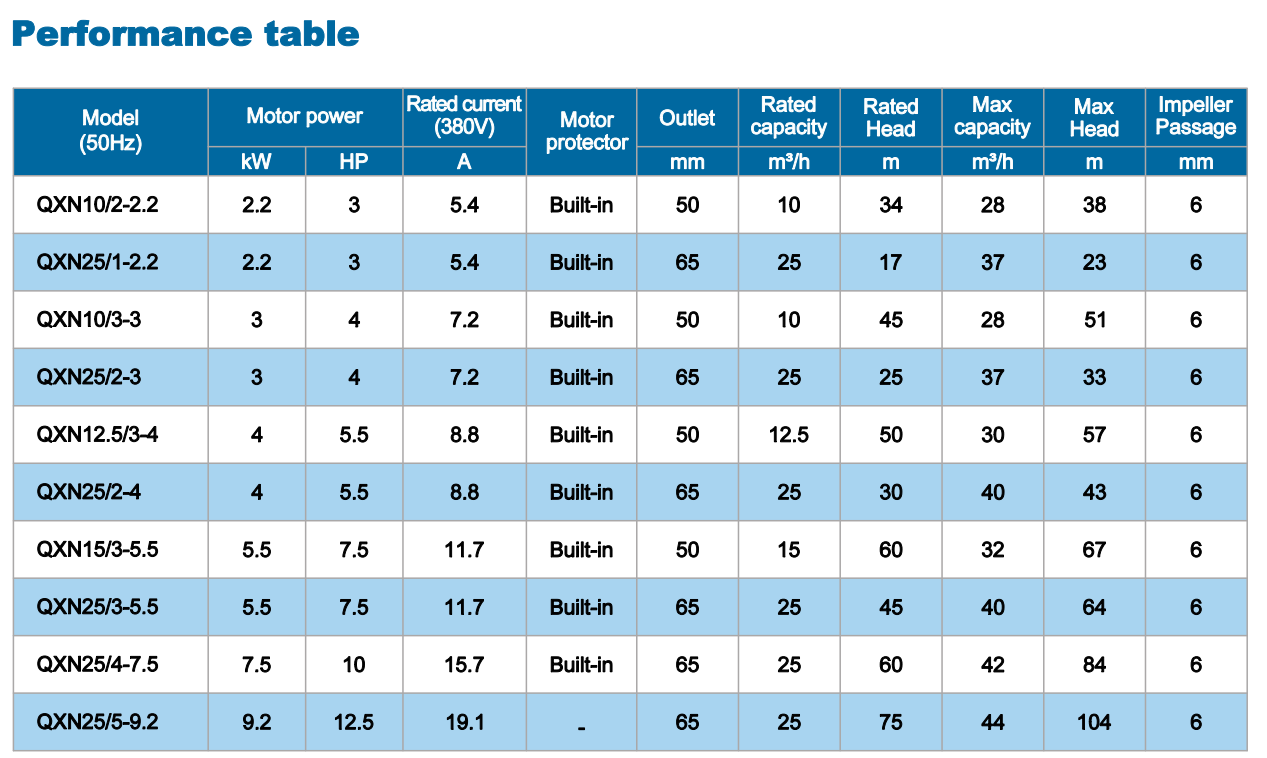

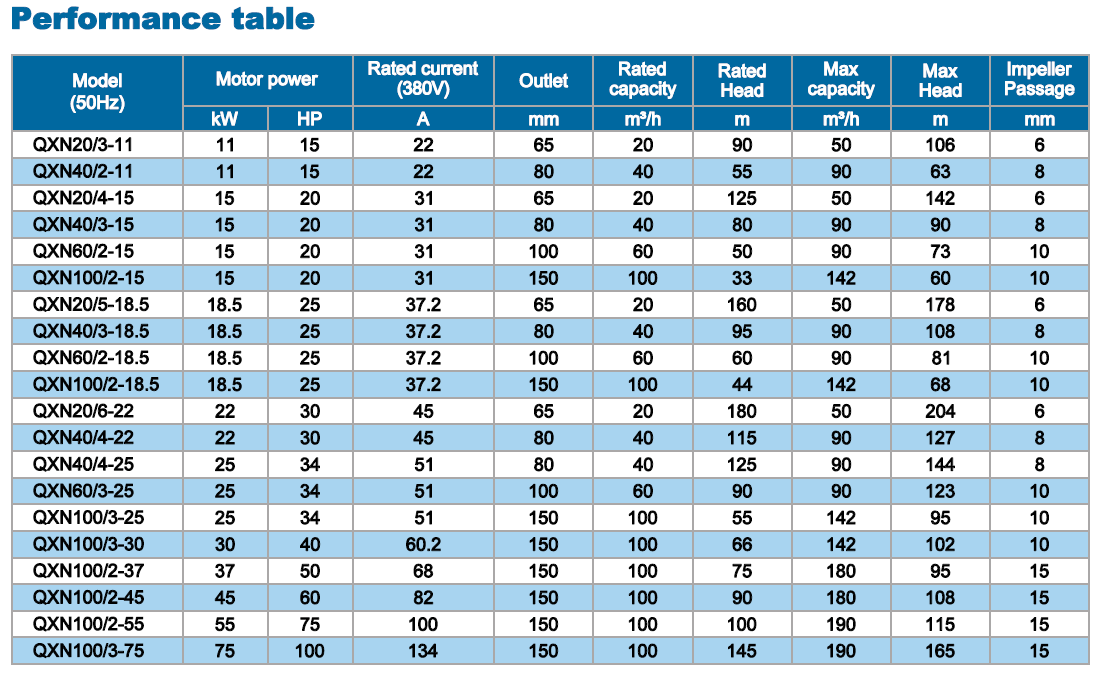

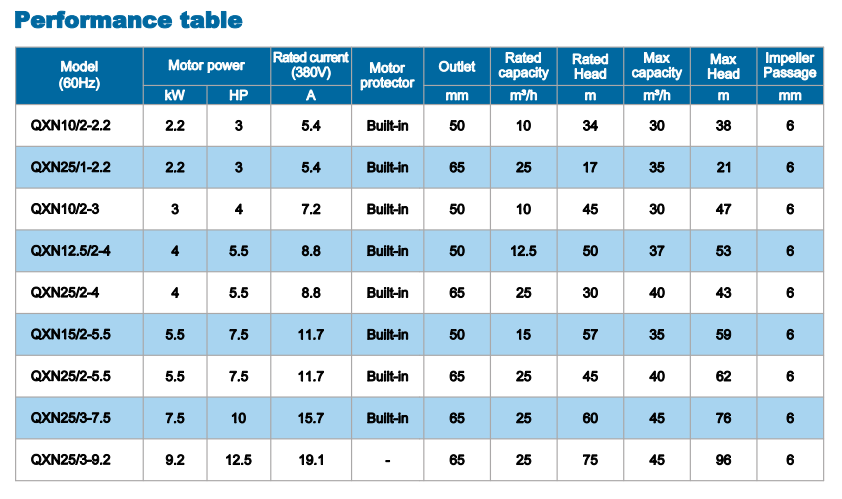

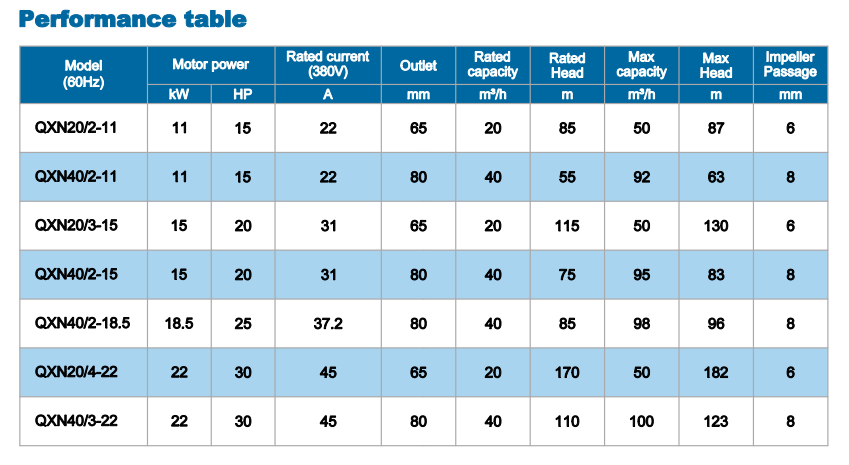

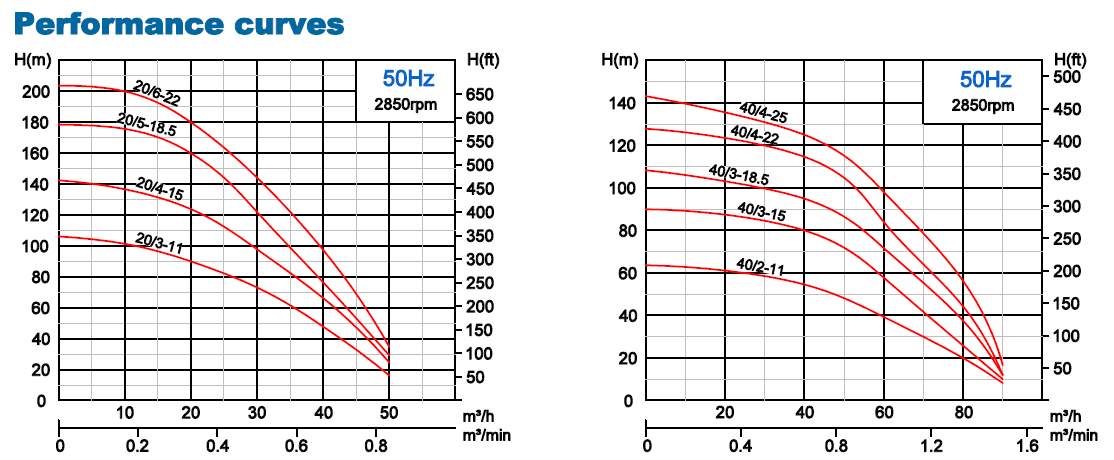

Series Product Specfications

Material of Construction
Specification

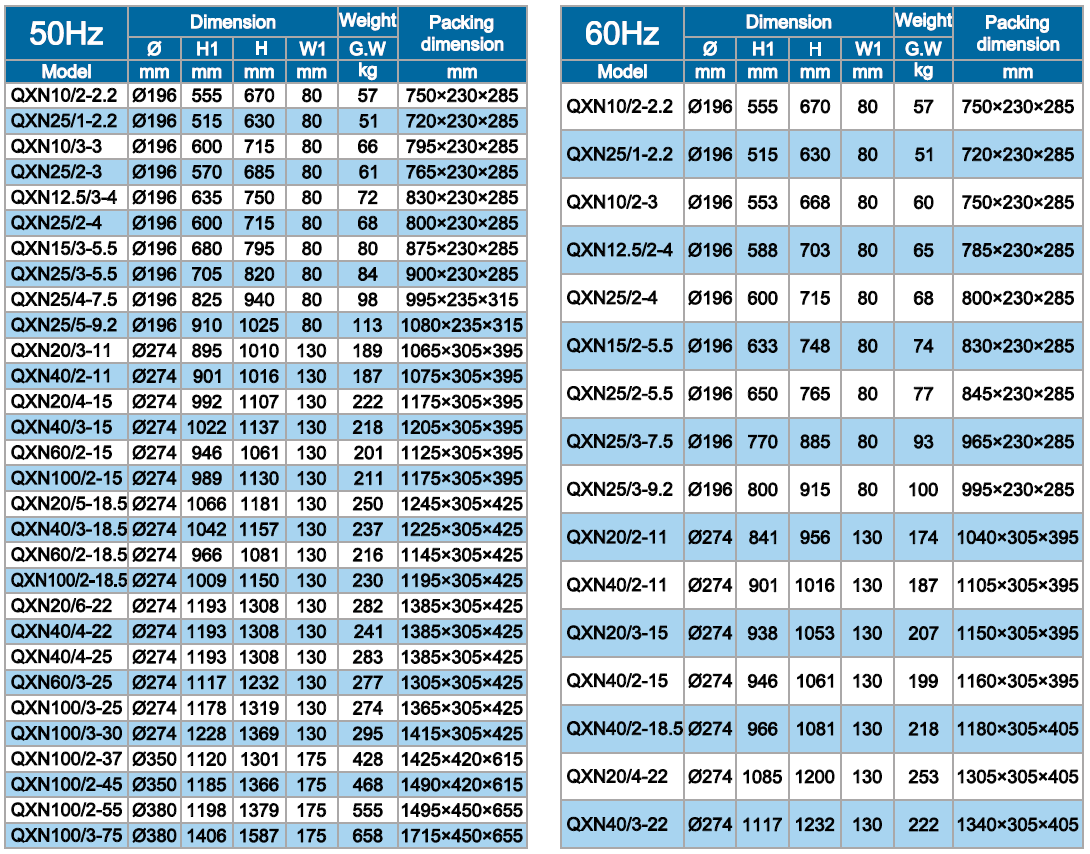

Packing Dimension







Consumable Parts

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

diffuser 15a

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

diffuser 15b

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

lower impeller

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

middle impeller

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

diffuser

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

lower impeller

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

seat assembly

(NEW! up to 75KW)QXN SUBMERSIBLE HIGH HEAD DEWATERING PUMP

upper impeller
