Structure and characteristics

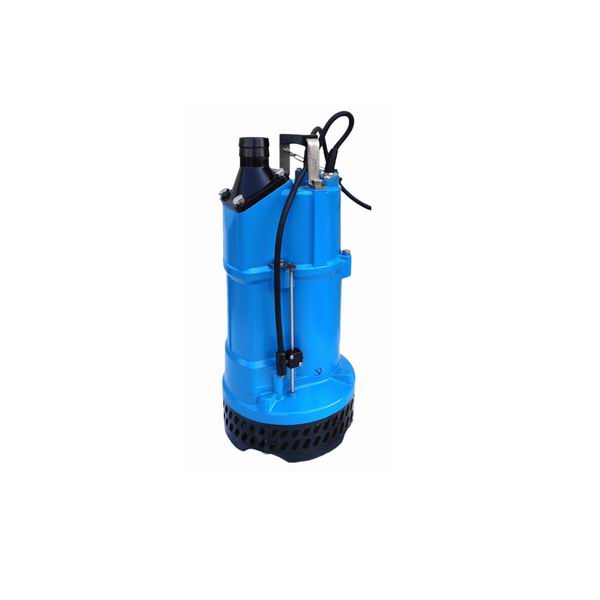

KBVE series pump is a portable light drainage pump, used for pumping liquid in ordinary buildings and foundation works. The structural parts of KBVE pump are made of light materials such as aluminum alloy, rubber and etc. which are suitable for handling on the construction site. The small outer diameter of the pump allows it to be used in a narrow space.

The water is sucked from the bottom of the pump and discharged from the top through side wall channel of the motor, which provides high cooling efficiency for the motor and allows the pump work normally even if the motor is exposed to the water. High chrome cast iron impeller and rubber pump body are super wear-resistant. There is a large gap between the semi open impeller and the pump body, so the impeller will not be easily stuck by mud or sand. The hose coupling could be installed vertically or obliquely to prevent the soft hose pipe from folding or bending.

The pump can operate automatically with built-in intelligent control system, thus achieve low total engergy costs

Main advantages:

• Protcet against reverse phase, ensuring correct impeller rotation(only three phase);

• Automatically stop the pump in event of overload, abnormal voltage and recovery 5min later:

• The pump stops working at high temperature,and will automatically restart after cooling to the specified temperature;

• The water sensor's height is adjustable to control pump operation and stop;

• The pump stops working within 60s when water level is below the probe.When the water level rises to contact the electric Probe, pump starts operating again;

• Rapid assessment about the pump operation and malfunction history(only three phase).


• Civil engineering

• Building sites

• Basements or other utility pits

• Rainwater and mud water

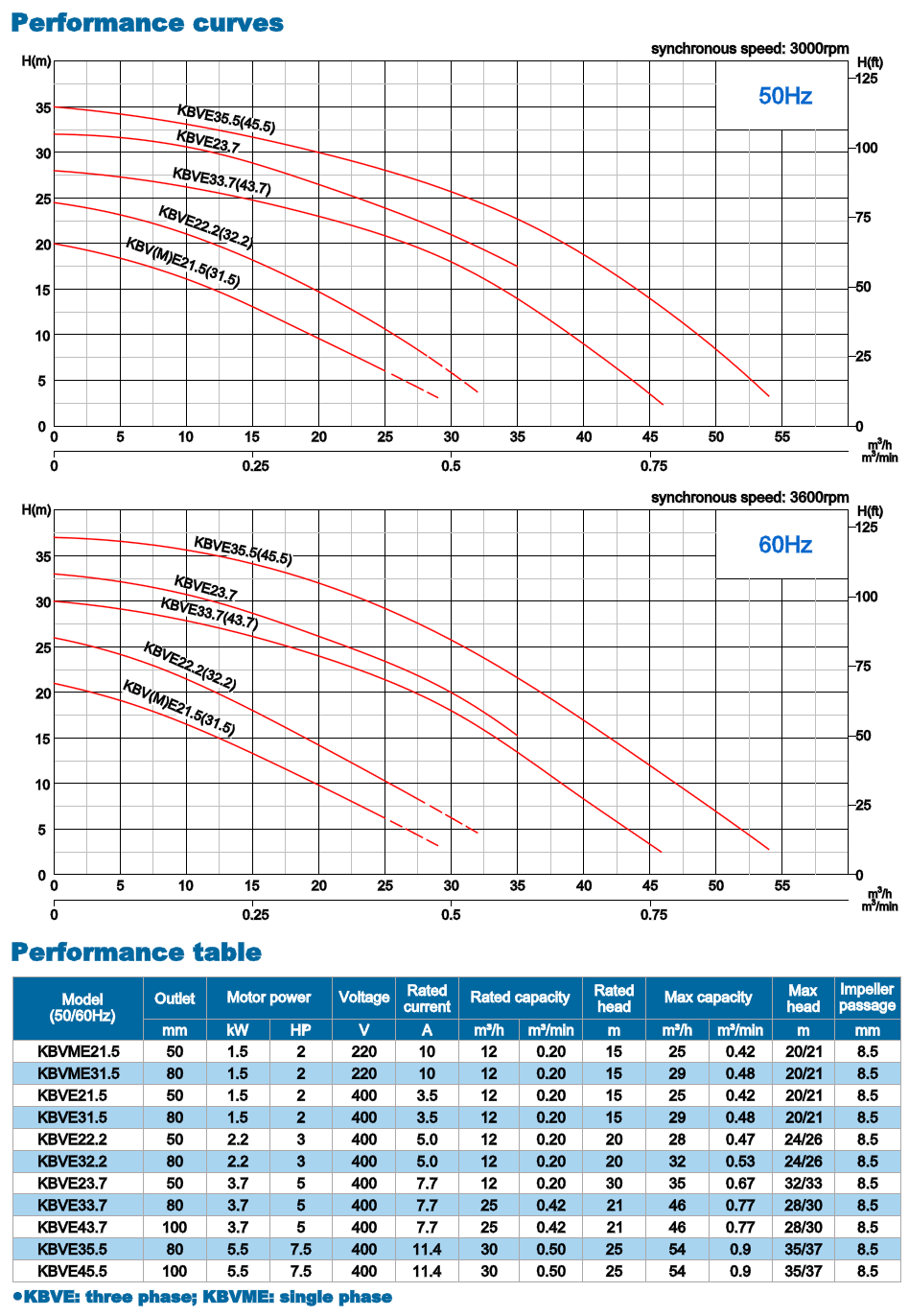

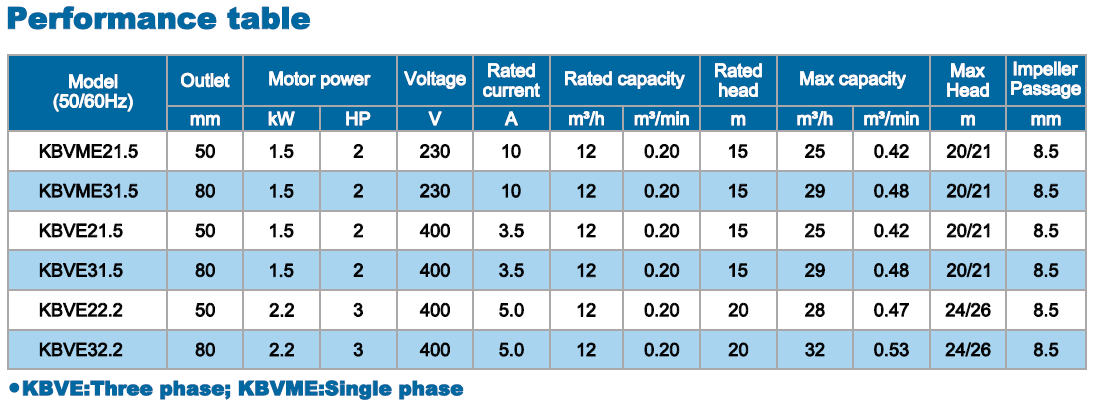

Series Product Specfications

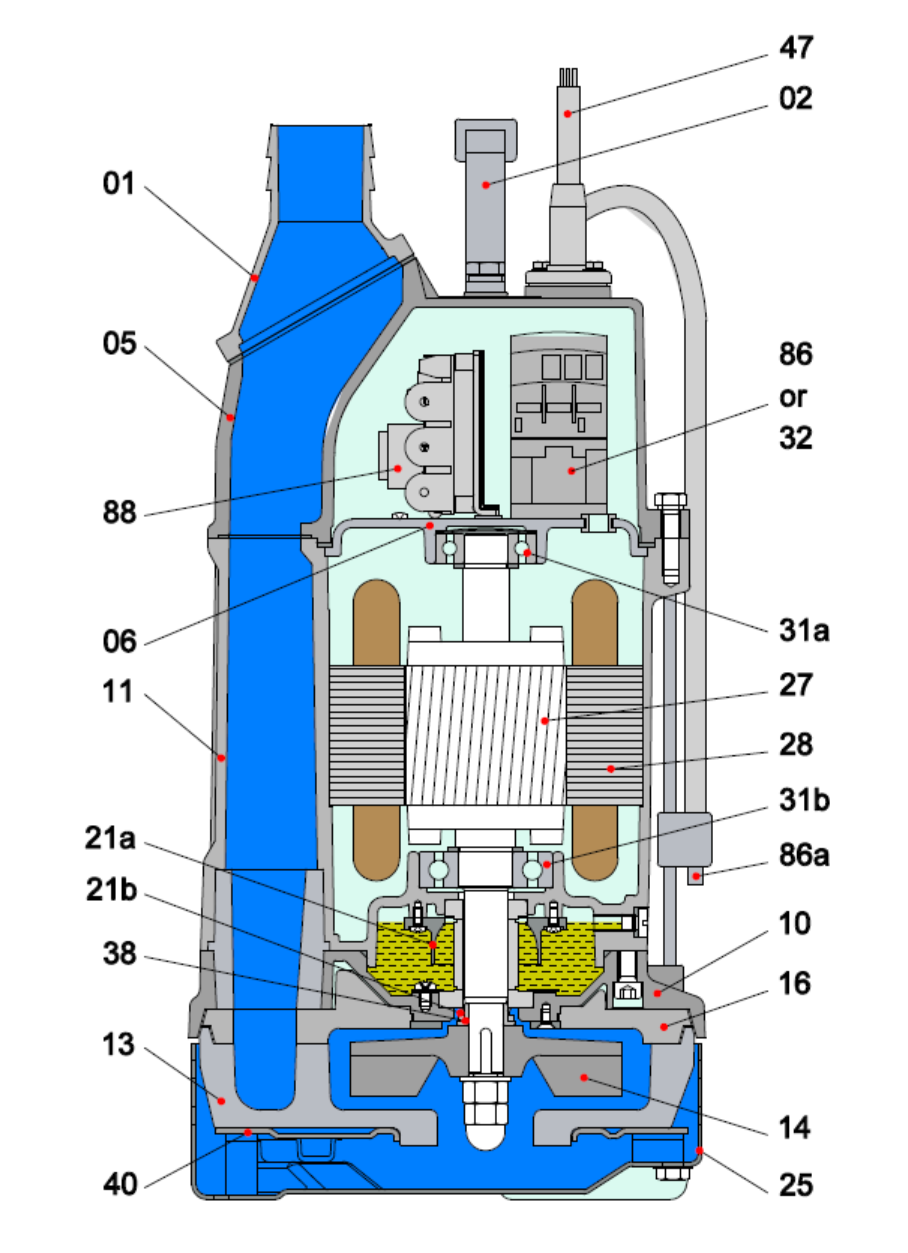

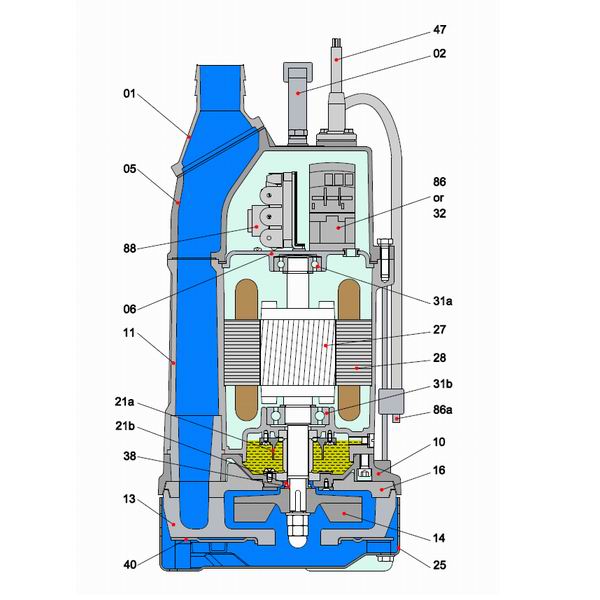

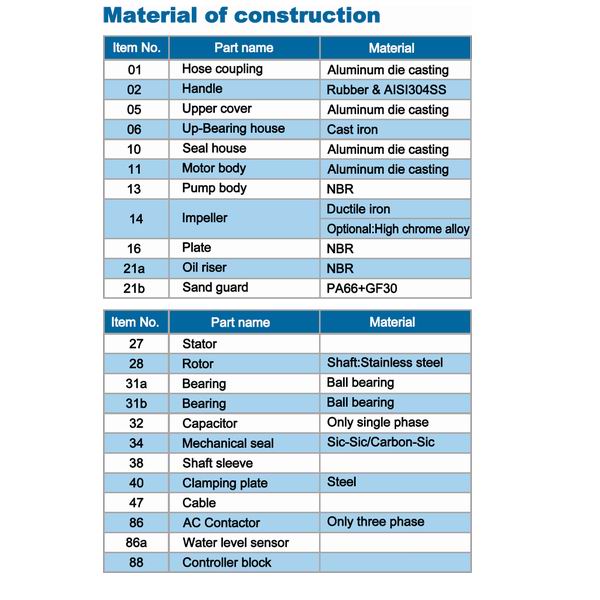

Material of Construction

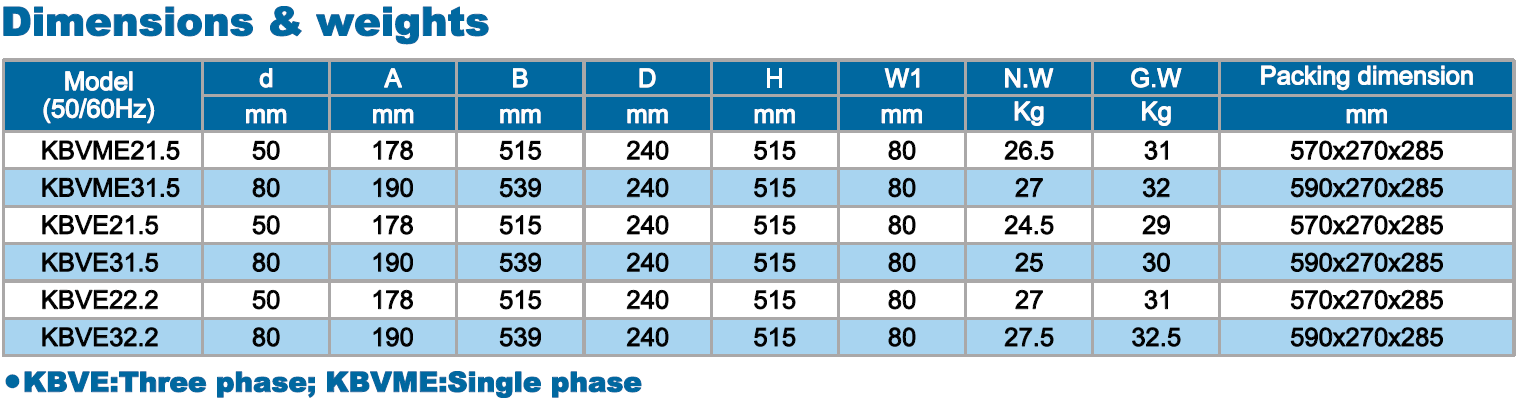

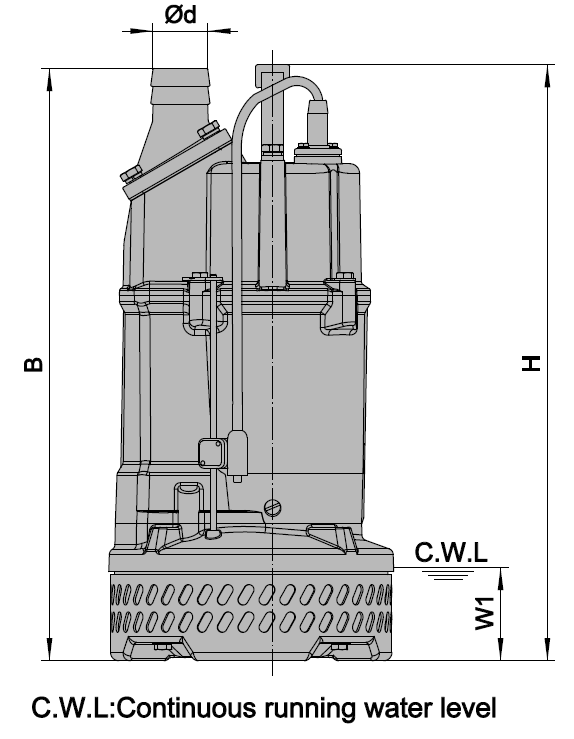

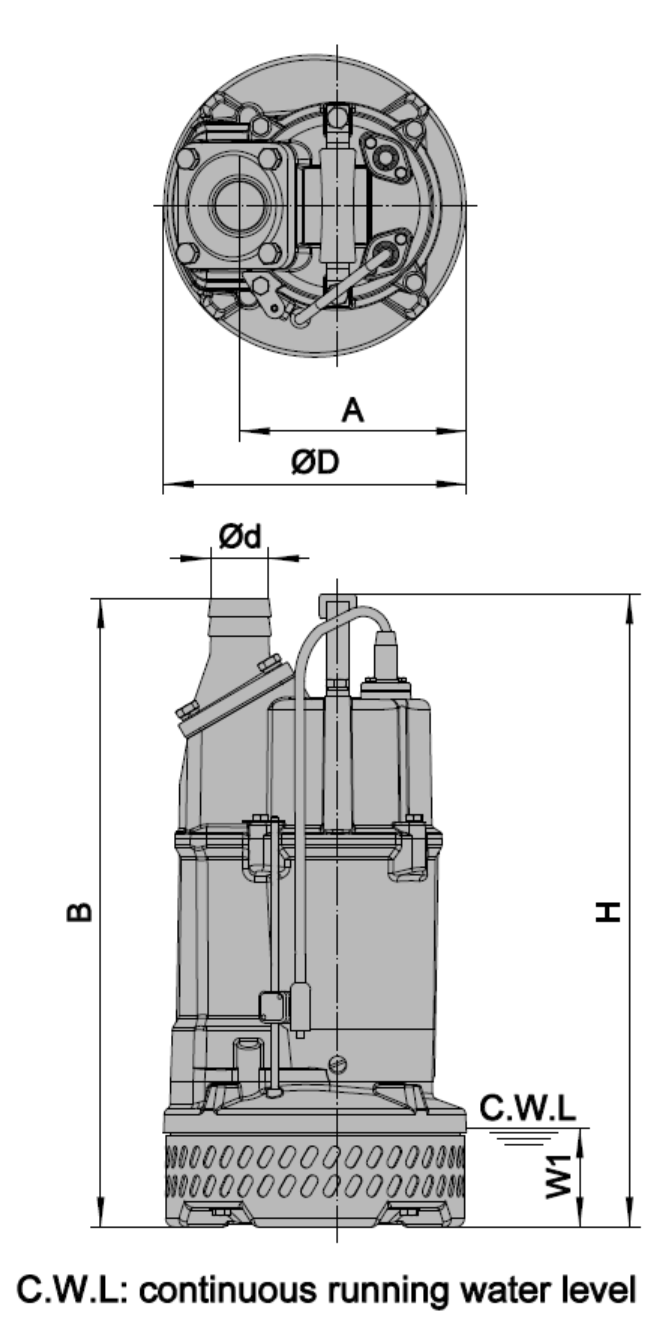

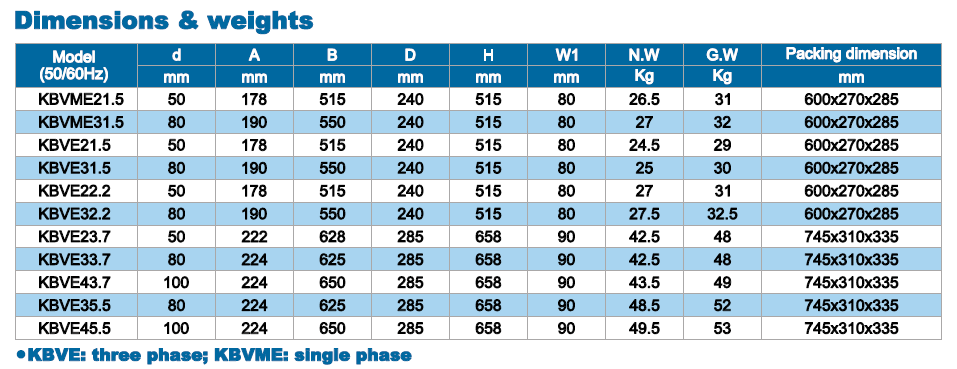

Packing Dimension

document dowload

Consumable Parts
